Simpson Strong-Tie JHA450/38 38mm Long Leg

Joist Hanger For Timber to Timber Pre-galv.

Simpson Strong-Tie

Product Code: 78JHA450038

Model Code: JHA450/38

Brand: Simpson Strong-Tie

Finish: Pre Galvanised

From £3.05 inc VAT ( Priced Each )

(Include VAT?)

Joist Width:

Quantity:

15 IN STOCK

Sorry! This product is only sold in multiples of 0.

BULK QUANTITY DISCOUNTS:

Qty	Price Per Unit	Price Per 1 Units
1 - 49	3.5640	£3.56
50+	3.0480	£3.05

Prices inc VAT based on Each

Order by 2pm for Next Day Delivery (Mon-Fri)

FREE Standard Delivery on Orders over £100*

TIMBER-TO-TIMBER CONNECTORS / LONG LEG JOIST HANGERS

Simpson Strong-Tie JHA450/38 Long Leg Adjustable Strap Joist Hanger (38mm Width)

The Simpson Strong-Tie JHA450/38 is a heavy-duty, long-leg height-adjustable joist hanger engineered to carry 38mm wide solid sawn timber joists from supporting timber beams, steel flitch plates, and carrying headers. Manufactured from heavier 1.2mm pre-galvanised structural mild steel (Z275 coating), the JHA450 version features extended 481mm straps designed for applications where greater vertical adjustment or deeper member drops are required. It is extensively specified in loft conversions and refurbishment projects where incoming joists run below the level of the supporting beam. Offering broad structural flexibility, it can be installed via standard wrap-over (minimum 45mm return), full flush face-fix, or below-support drop configurations. Each hanger features its part number and size stamped permanently into the seat for straightforward site inspection and building control sign-off.

RECOMMENDED FASTENERS & INSTALLATION NAILING

Published structural capacities are certified using Simpson Strong-Tie 3.75 x 30mm Square Twist Nails (N3.75x30) or CSA4.0x30 Connector Screws. Can be fixed either using the Wrap-Over configuration (8 face nails, 4 top nails, and 6 joist nails), the full Face-Fix installation schedule (20 header nails and 6 joist nails), or Below Support / Loft Conversion installation (4 face nails, 4 top nails, and 6 joist nails). A minimum wrap-over return of 45mm is required where applicable.

CLICK HERE TO VIEW OUR FULL RANGE OF SIMPSON JHA JIFFY JOIST HANGERS

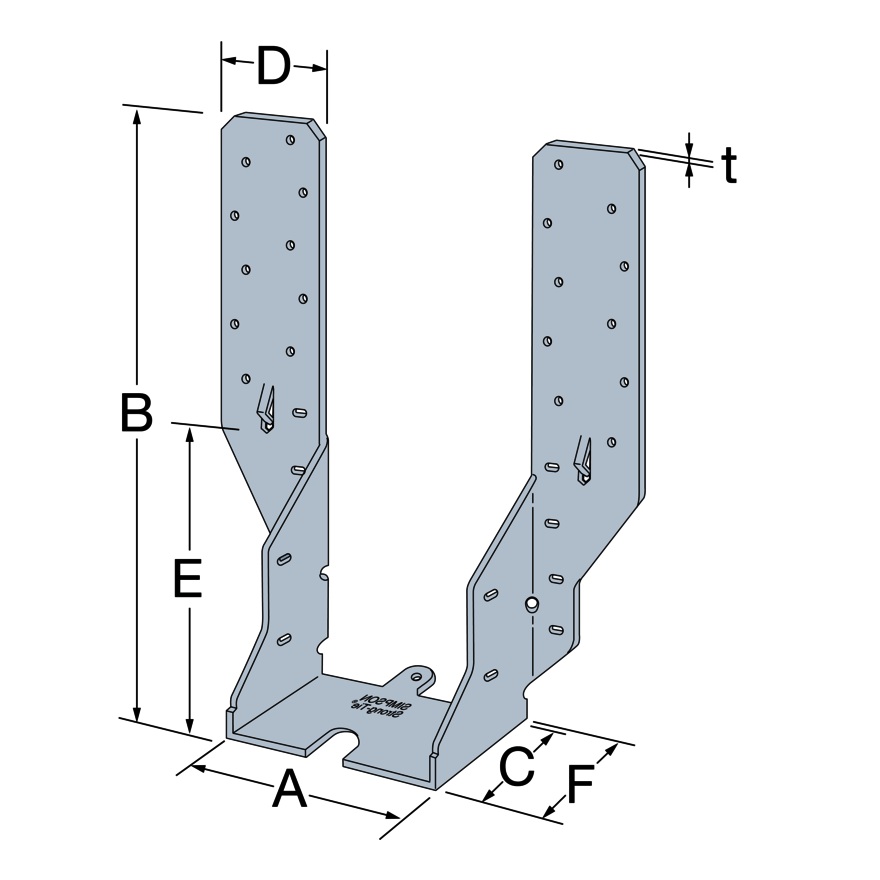

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

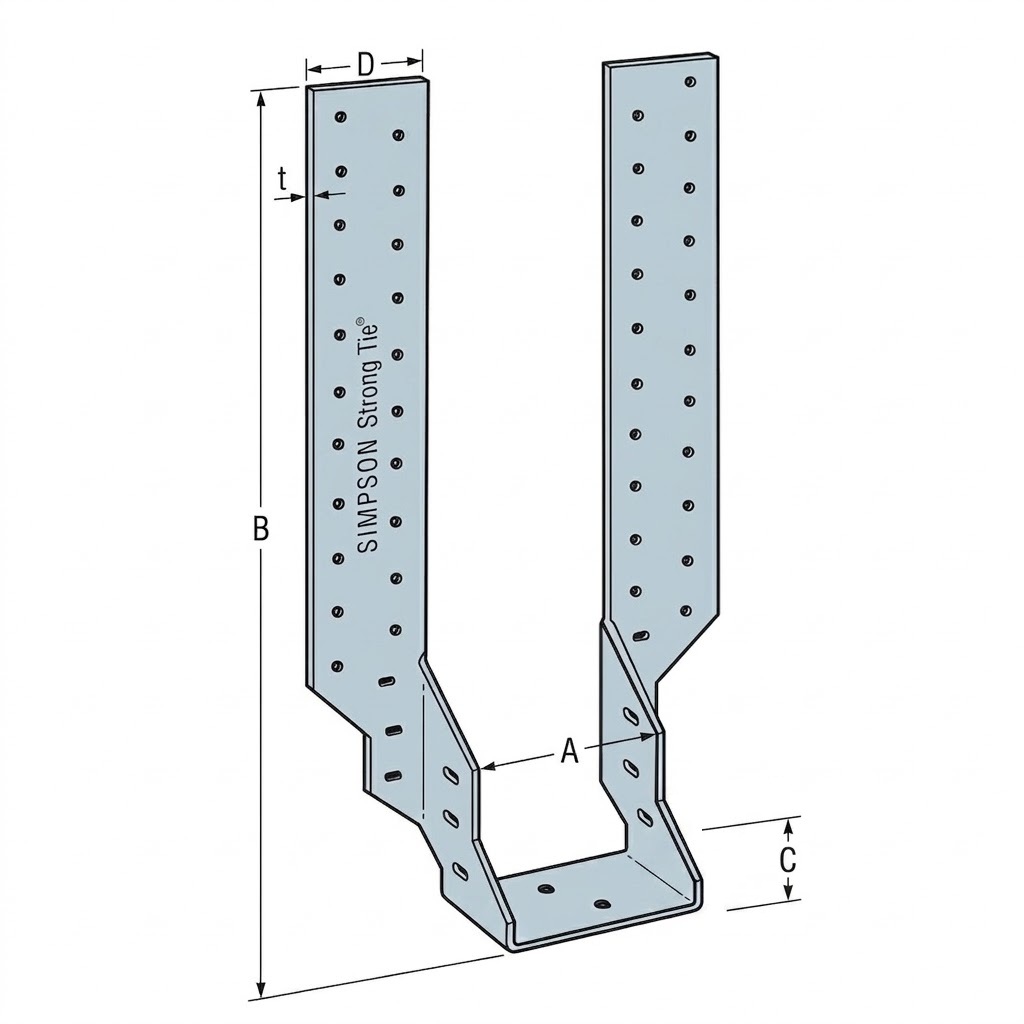

Simpson Strong-Tie JHA450 technical dimension diagram

Key	Dimension Description	JHA450/38 Value
A	Internal Joist Width	38 mm
B	Total Overall Height	481 mm
C	Seat Depth (Bearing Base)	50 mm
D	Strap Width	51.5 mm
E	Side Flange Height	191 mm
F	Bottom Flange Projection	61.5 mm
t	Steel Plate Thickness	1.2 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter	Engineered Values & Materials
Material & Coating	Pre-galvanised mild steel to Z275 specification (Service Class 2 indoor)
Fastener Hole Schedule	Header: 38 round holes (Ø4mm) / Joist: 6 oblong holes (Ø6 x 4mm)
Compatible Joist Sizes	38mm solid sawn timber joists (Single 1x38mm timber)
Characteristic Capacity (Wrap-Over, C24)	Downward R1,k: 10.9 kN / Uplift R2,k: 3.3 kN (with 3.75x30mm square twist nails)
Characteristic Capacity (Face-Fix, C24)	Downward R1,k: 10.9 kN / Uplift R2,k: 3.3 kN (with 3.75x30mm square twist nails)
Characteristic Capacity (Loft Below Support, C24)	Downward R1,k: 9.6 kN (with 3.75x30mm square twist nails)
Approvals & Compliance	UKCA / CE Marked, ETA assessed (European Technical Assessment), EN 15804 EPD

KEY STRUCTURAL PERFORMANCE ADVANTAGES

Extended 481mm Long Leg Reach: Ideal for carrying dropped joists, step-down floor levels, and connections where the header sits significantly above the ceiling level.
Heavy-Duty 1.2mm Steel Core: Formed from 1.2mm thick structural steel with an increased 51.5mm strap width, providing higher load resistance and rigidity under heavy loads.
Dedicated Loft Conversion Installation: Certified for below-support installation where the hanger strap extends beneath the carrying member, making it the industry standard for attic conversions.
Higher Uplift Resistance: Equipped with 6 dedicated joist fastening holes providing an uplift capacity of up to 3.3 kN to counter negative wind load forces.

CLICK HERE TO SEE THE FULL SIMPSON JHA JIFFY RANGE

JHA Data Sheet

Declaration of Performance
