Simpson Strong-Tie JHA270/91 91mm Jiffy Joist

Simpson Strong-Tie JHA270/91 91mm Jiffy Joist

Hanger For Timber to Timber Pre-galvanised

Simpson Strong-Tie

Product Code: 78JHA270091

Model Code: JHA270/91

Brand: Simpson Strong-Tie

Finish: Pre Galvanised

From £0.73 inc VAT ( Priced Each )

(Include VAT?)

Joist Width:

Quantity:

1443 IN STOCK

Sorry! This product is only sold in multiples of 0.

BULK QUANTITY DISCOUNTS:

Qty	Price Per Unit	Price Per 1 Units
1 - 59	0.8040	£0.80
60+	0.7320	£0.73

Prices inc VAT based on Each

Order by 2pm for Next Day Delivery (Mon-Fri)

FREE Standard Delivery on Orders over £100*

TIMBER-TO-TIMBER CONNECTORS / ADJUSTABLE JOIST HANGERS

Simpson Strong-Tie JHA270/91 Adjustable Height Strap Joist Hanger (91mm Width)

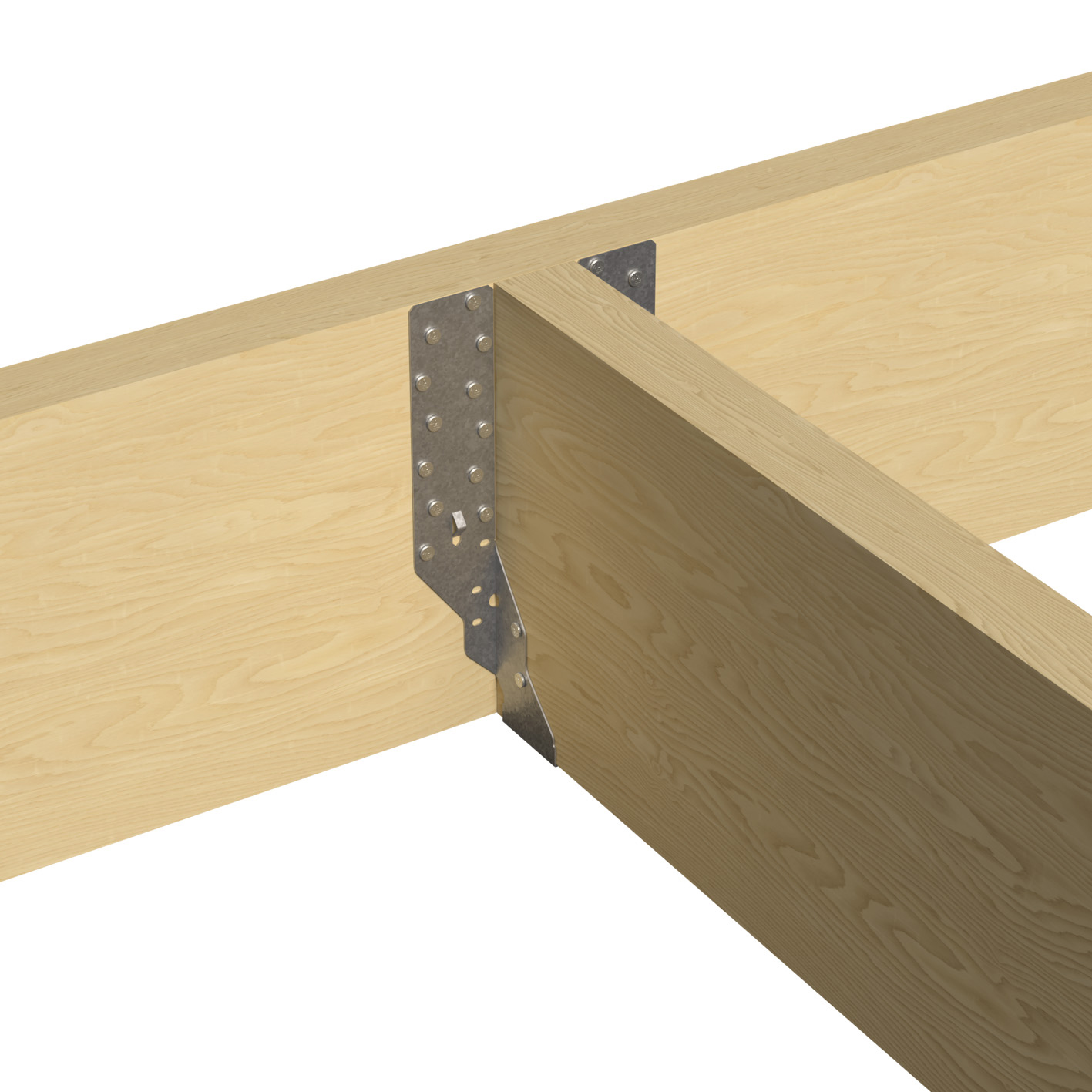

The Simpson Strong-Tie JHA270/91 is a height-adjustable standard-leg timber joist hanger engineered to support 91mm wide timber members (specifically paired 2x 45mm/47mm two-ply joists) from carrying timber headers, trimmer joists, and structural beams. Manufactured from 0.9mm pre-galvanised structural mild steel (Z275 coating), the JHA270 incorporates integral Speed-Prongs that temporarily embed into the supporting timber face, securing the hanger firmly in position so site operatives can align the incoming two-ply joist and nail accurately without assistance. A built-in location tab ensures instant, uniform vertical registration against the supporting beam, while the wider strap profile distributes high bearing loads evenly and allows broader nail spacing across the timber face. Certified for both high-load wrap-over fixing and flush face-fix mounting, each hanger features its model code and size stamped directly into the base seat for clear identification during site inspection and building control sign-off.

RECOMMENDED FASTENERS & INSTALLATION NAILING

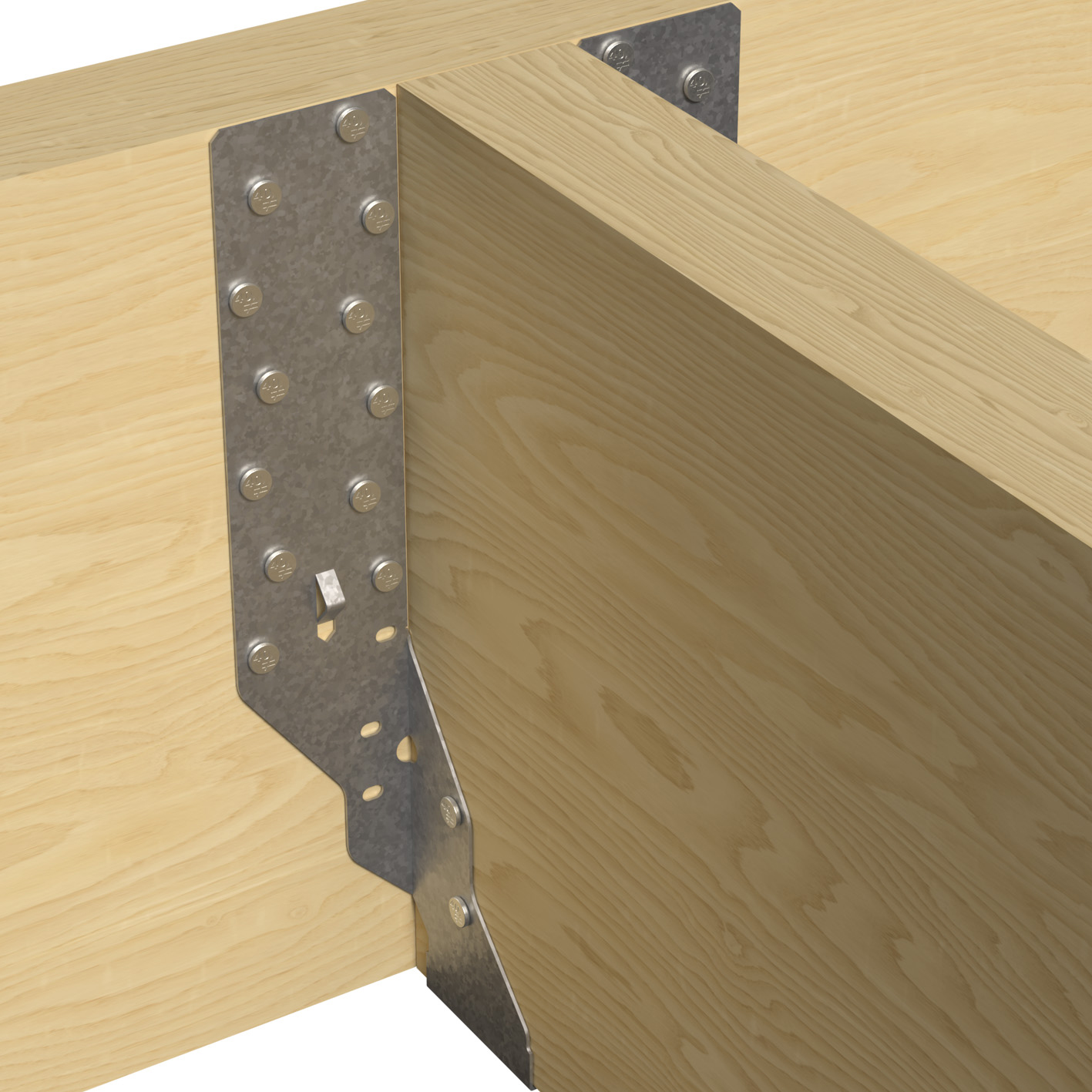

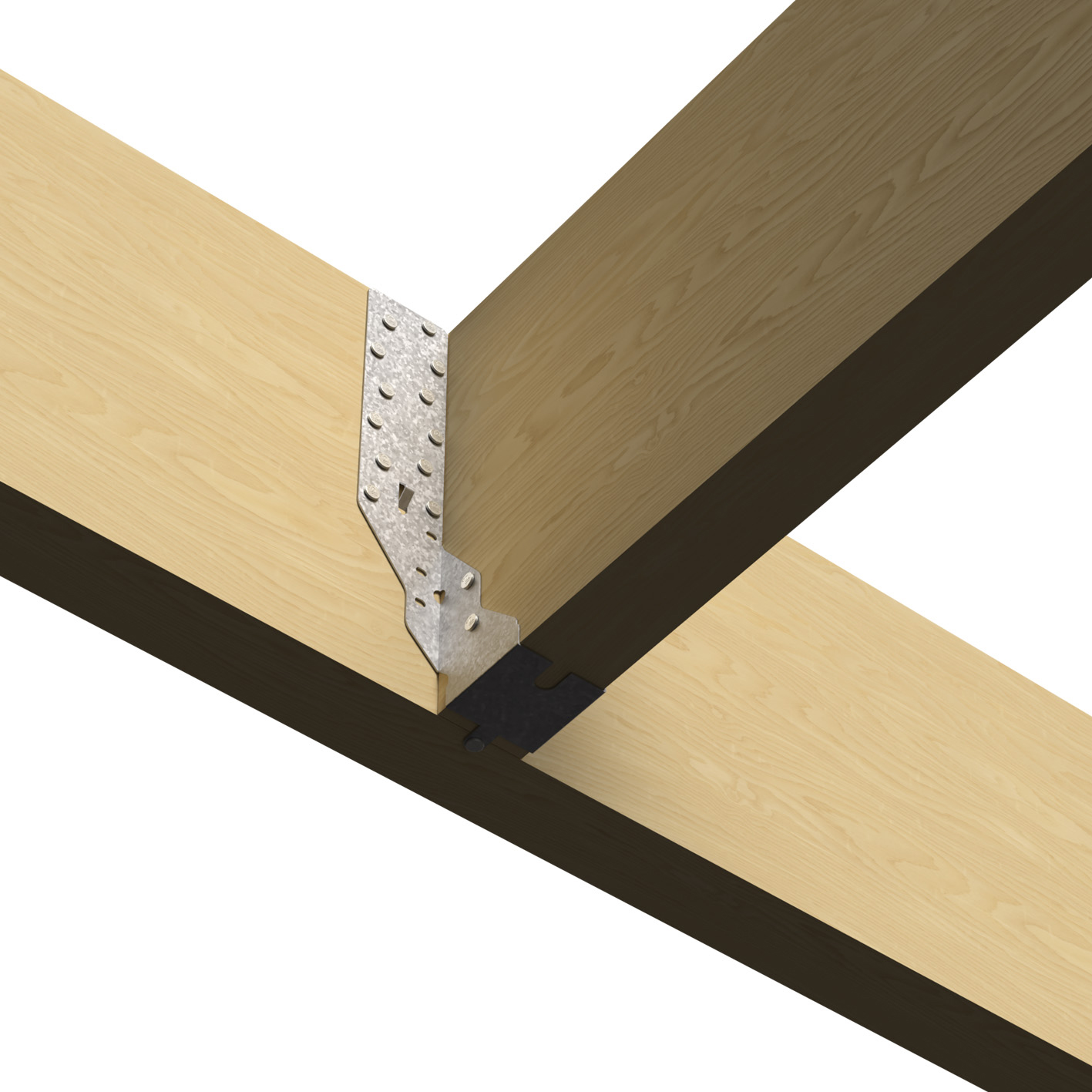

Published structural capacities are certified using Simpson Strong-Tie 3.75 x 30mm Square Twist Nails (N3.75x30) or CSA4.0x30 Connector Screws. Can be fixed either using the Wrap-Over configuration (8 face nails, 4 top nails, and 4 joist nails) or the full Face-Fix installation schedule (20 header nails and 4 joist nails). Minimum and maximum nailing schedules are clearly stamped into the strap for site operatives.

CLICK HERE TO VIEW OUR FULL RANGE OF SIMPSON JHA JIFFY JOIST HANGERS

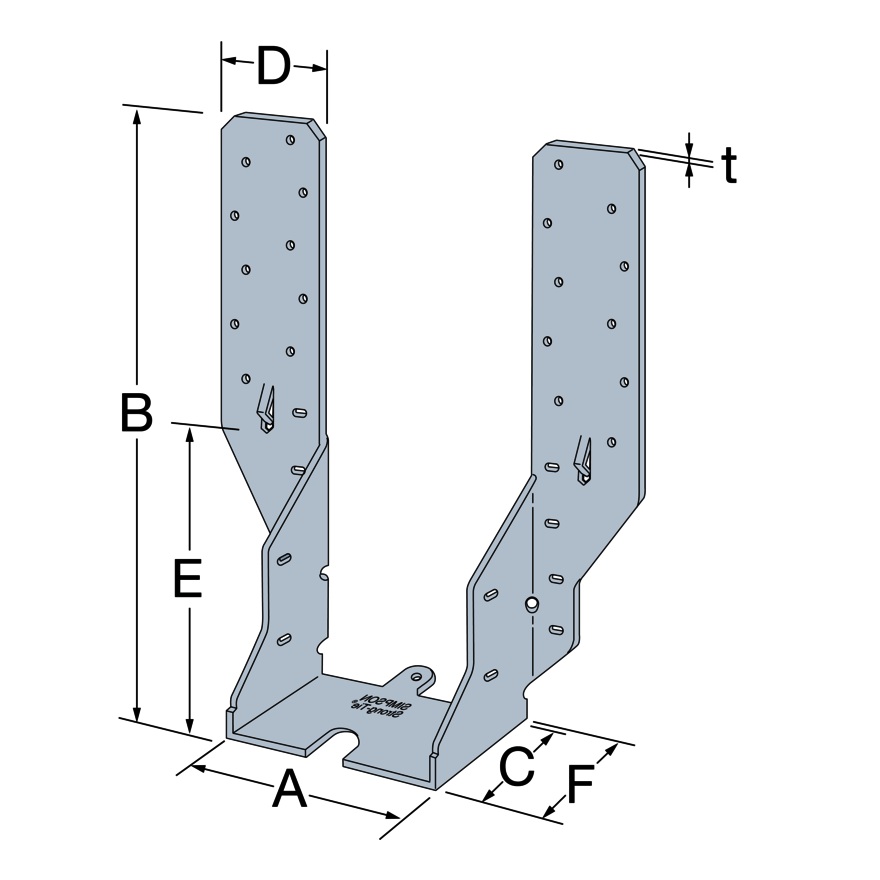

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie JHA270 technical dimension diagram

Key	Dimension Description	JHA270/91 Value
A	Internal Joist Width	91 mm
B	Total Overall Height	234 mm
C	Seat Depth (Bearing Base)	50 mm
D	Strap Width	48.8 mm
E	Side Flange Height	95 mm
F	Bottom Flange Projection	52.1 mm
t	Steel Plate Thickness	0.9 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter	Engineered Values & Materials
Material & Coating	Pre-galvanised mild steel to Z275 specification (Service Class 2 indoor)
Fastener Hole Schedule	Header: 22 round holes (Ø4mm) / Joist: 4 obround holes (Ø6 x 4mm)
Compatible Joist Sizes	91mm wide timber (2x 45mm/47mm two-ply joists; Height range: 125mm to 200mm)
Characteristic Capacity (Wrap-Over, C24)	Downward R1,k: 13.9 kN / Uplift R2,k: 2.2 kN (with 3.75x30mm square twist nails)
Characteristic Capacity (Face-Fix, C24)	Downward R1,k: 8.6 kN / Uplift R2,k: 2.2 kN (with 3.75x30mm square twist nails)
Approvals & Compliance	UKCA / CE Marked, ETA assessed (European Technical Assessment), EN 15804 EPD

KEY STRUCTURAL PERFORMANCE ADVANTAGES

Engineered for Two-Ply Joists: Specifically sized at 91mm internal width to carry double 45mm/47mm trimmer and joist combinations securely within a single hanger.
Speed-Prongs for Rapid Alignment: Integral site prongs press lightly into the timber header, allowing quick single-handed positioning before driving fasteners.
Positive Location Tab: Provides accurate vertical alignment over the top edge of the carrying beam for level floor and roof runs.
Dual Installation Flexibility: Supports both high-load wrap-over installation and flush face-fix mounting where header top access is restricted.

CLICK HERE TO SEE THE FULL SIMPSON JHA JIFFY RANGE

JHA Data Sheet

Declaration of Performance
