TFLS Levelling System

TFLS provides the combined function of levelling and fixing the sole plate to the foundation or substructure. It comprises a universal base plate and packing pieces which can be added or removed as required. The system transfers vertical and lateral loads from the wall to the foundation.

  • Suitable for use with traditional timber frame walls and closed panel systems.
  • Adaptable - accommodates structural packing up to 30mm deep.
  • Universal - suitable for walls of 89mm and 140mm construction.
  • Flexible - packing pieces can easily be added or removed from the base plate to achieve the required depth.
  • Structural - Satisfies NHBC requirements for permanent structural packing of the sole plate when installed at load points.
  • Multiple nail holes in bracket offer a variety of nailing options.

***CLICK HERE FOR TECHNICAL SPECIFICATIONS***

REFINE SEARCH
0 FILTERS APPLIED

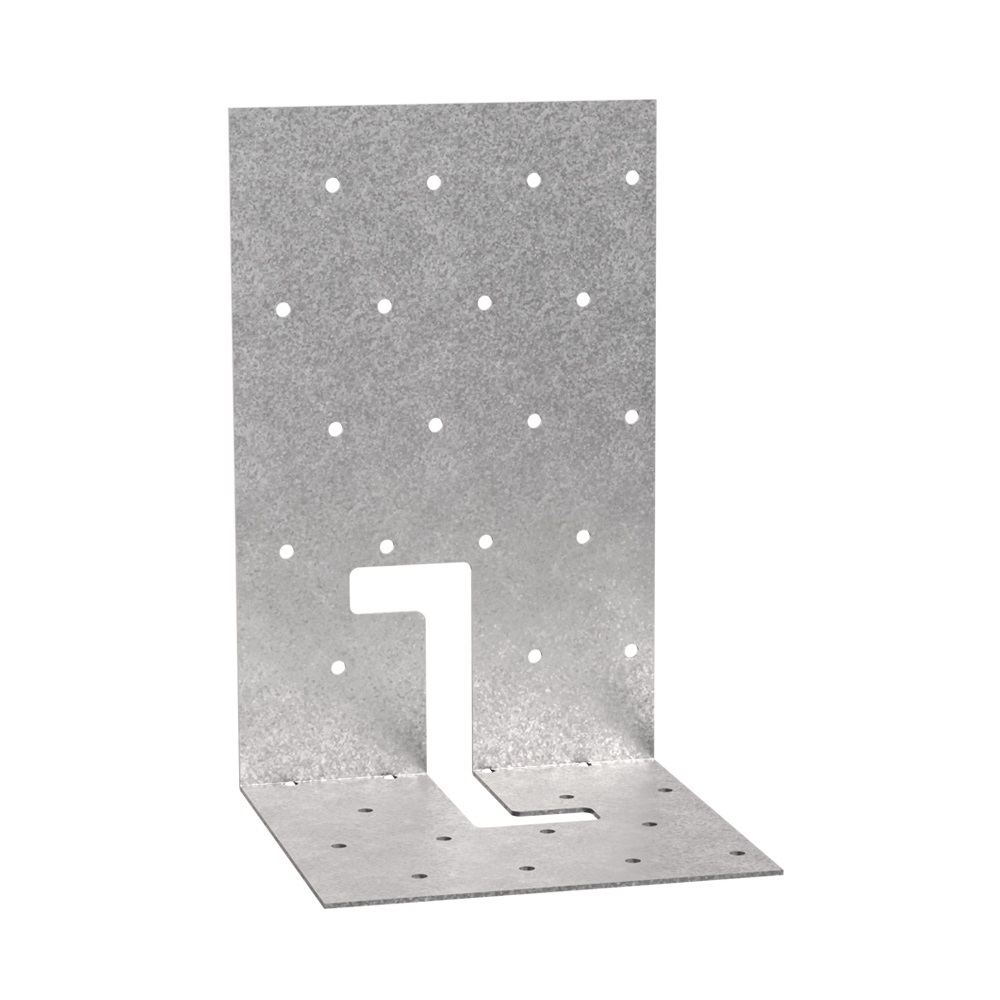

Simpson Strong-Tie TFLSB 89 x 140mm

Levelling Bracket Pre-Galvanised Mild Steel

Product Code: 78TFLSB

Each
£3.84

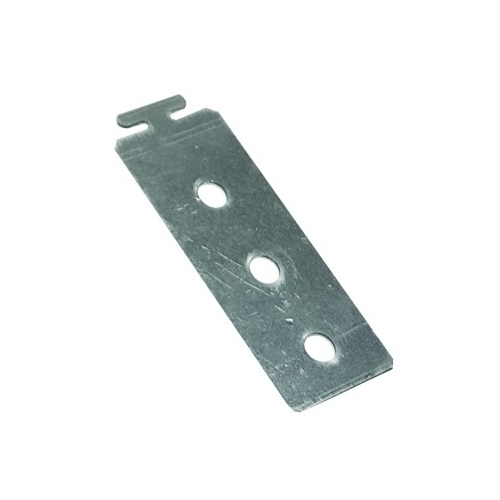

Simpson Strong-Tie TFLSPK89 89 x 39 x 2.0

Levelling Packer Pre-Galvanised Mild Steel

Product Code: 78TFLSPK89

Each
£0.58

Simpson Strong-Tie TFLSPK140 140 x 39 x 2.0

Levelling Packer Pre-Galvanised Mild Steel

Product Code: 78TFLSPK140

Each
£0.90
