Simpson Strong-Tie JHA450/137 137mm Long Leg

Joist Hanger For Timber to Timber Pre-galv.

Simpson Strong-Tie

Product Code: 78JHA450137

Model Code: JHA450/137

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £3.05 inc VAT ( Priced Each )

(Include VAT?)
Joist Width:

Quantity:

436 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 49 3.4200 £3.42
50+ 3.0480 £3.05
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




The Simpson Strong-Tie JHA450/137 is a premium, heavy-duty long-leg height-adjustable joist hanger engineered for supporting 137mm wide solid sawn timber joists from carrying timber members. Specially designed with an extended profile for high-load applications such as loft conversions or where the joist extends below the header line, this robust hanger is manufactured from 1.2mm thick pre-galvanised mild steel to achieve maximum structural capacity.

Product Dimensions & Attributes

  • A (Joist Width): 137mm
  • B (Overall Height): 432mm
  • C (Seat Depth): 50mm
  • D (Flange Width): 51.5mm
  • E (Strap Length): 142mm
  • F (Total Depth): 61.5mm
  • t (Material Thickness): 1.2mm
  • Header Holes: 38
  • Joist Holes: 6
  • Unit Weight: 0.63 kg
  • Material Finish: Pre-Galvanised Mild Steel (Z275 Coating)

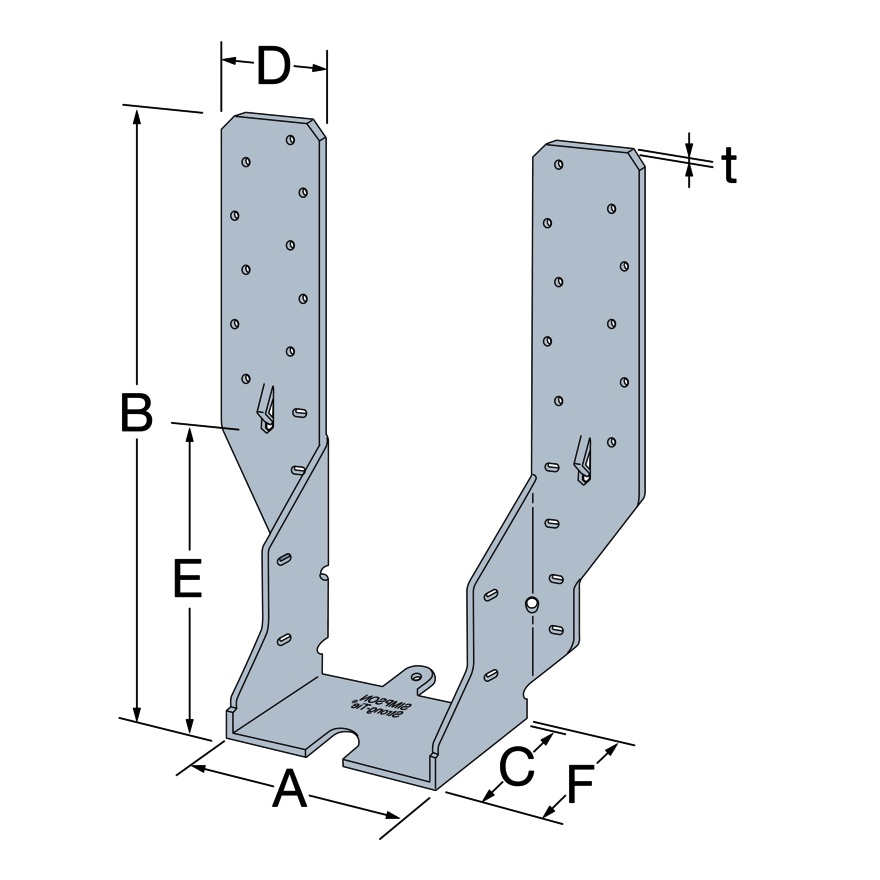

Simpson Strong-Tie JHA Dimension Blueprint Drawing

Key Performance Features

  • Long-Leg Configuration: Engineered for structural installations requiring deeper reach, offering a total profile height of 432mm optimized for modern timber frames and loft expansions.
  • Heavy-Gauge Steel: Built using premium 1.2mm material thickness, designed to resist deflection and hold rigid connection lines under significant dead loads.
  • Wider Steel Strap: The advanced wider strap provides greater surface area coverage across the supporting member, widening nail spacing and drastically improving load capacity.
  • Stamped Nailing Guides: Minimum and maximum nailing schedules are stamped permanently into the steel strap to guarantee site compliance for sub-contractors and site inspectors.
  • Clear Post-Fix Inspection: The unique model number and physical sizing are permanently stamped directly into the seat base for effortless safety identification even after installation.

Engineered Performance & Safe Working Loads (C16 Timbers)

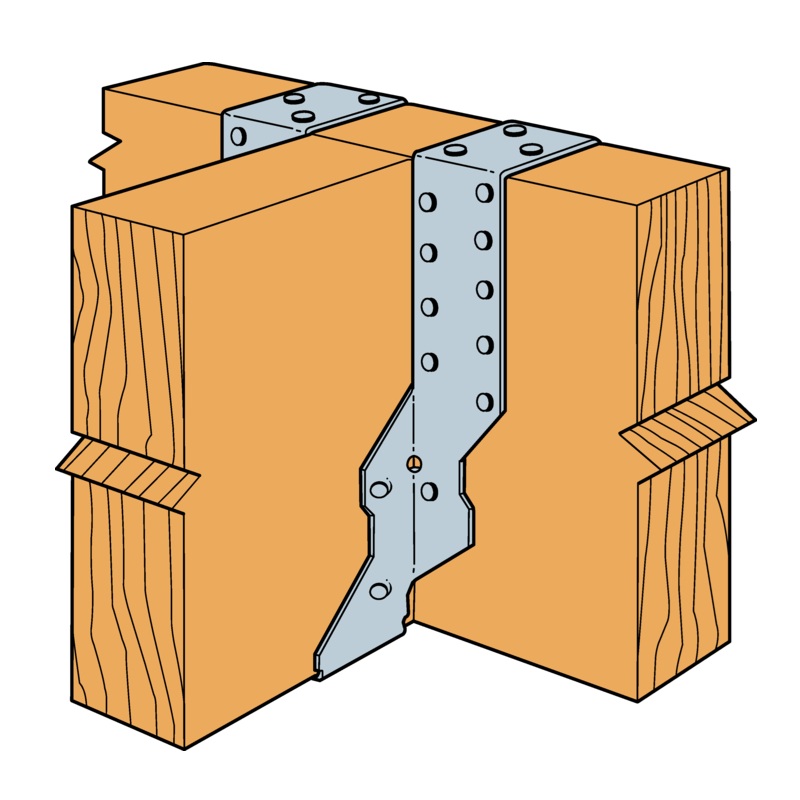

1. Wrap Over Installation Schedule

Fixing Layout Fasteners (3.75x30mm) Char. Capacity (R1,k) SWL Medium Term SWL Long Term Short Term Uplift
Wrap Over 4 Face / 8 Top / 6 Joist 13.2 kN 6.3 kN 5.5 kN 1.6 kN

2. Face Fix Installation Schedule

Fixing Layout Fasteners (3.75x30mm) Char. Capacity (R1,k) SWL Medium Term SWL Long Term Short Term Uplift
Face Fix Only 20 Face / 6 Joist 10.6 kN 5.1 kN 4.4 kN 1.6 kN

3. Below Support (Loft Conversion) Installation Schedule

Fixing Layout Fasteners (3.75x30mm) Char. Capacity (R1,k) SWL Medium Term SWL Long Term
Below Support standard 4 Face / 4 Top / 6 Joist 9.6 kN 4.6 kN 4.0 kN
Below Support alternative 20 Face / 6 Joist 9.6 kN 4.6 kN 4.0 kN

Note: All certified characteristic and safe working load (SWL) capacities are strictly dependent on utilizing industry-standard 3.75 x 30mm square twist nails or approved CSA4.0x30 screws across all specified holes. Minimum wrap over of 45mm is required where applicable.
