Simpson Strong-Tie SAI500/91/2 91mm Width

x 205mm Height Concealed Hanger Pre-galv

Simpson Strong-Tie

Product Code: 78SAI500091

Model Code: SAI500/91

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £3.92 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

39 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 24 4.9080 £4.91
25+ 3.9240 £3.92
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*

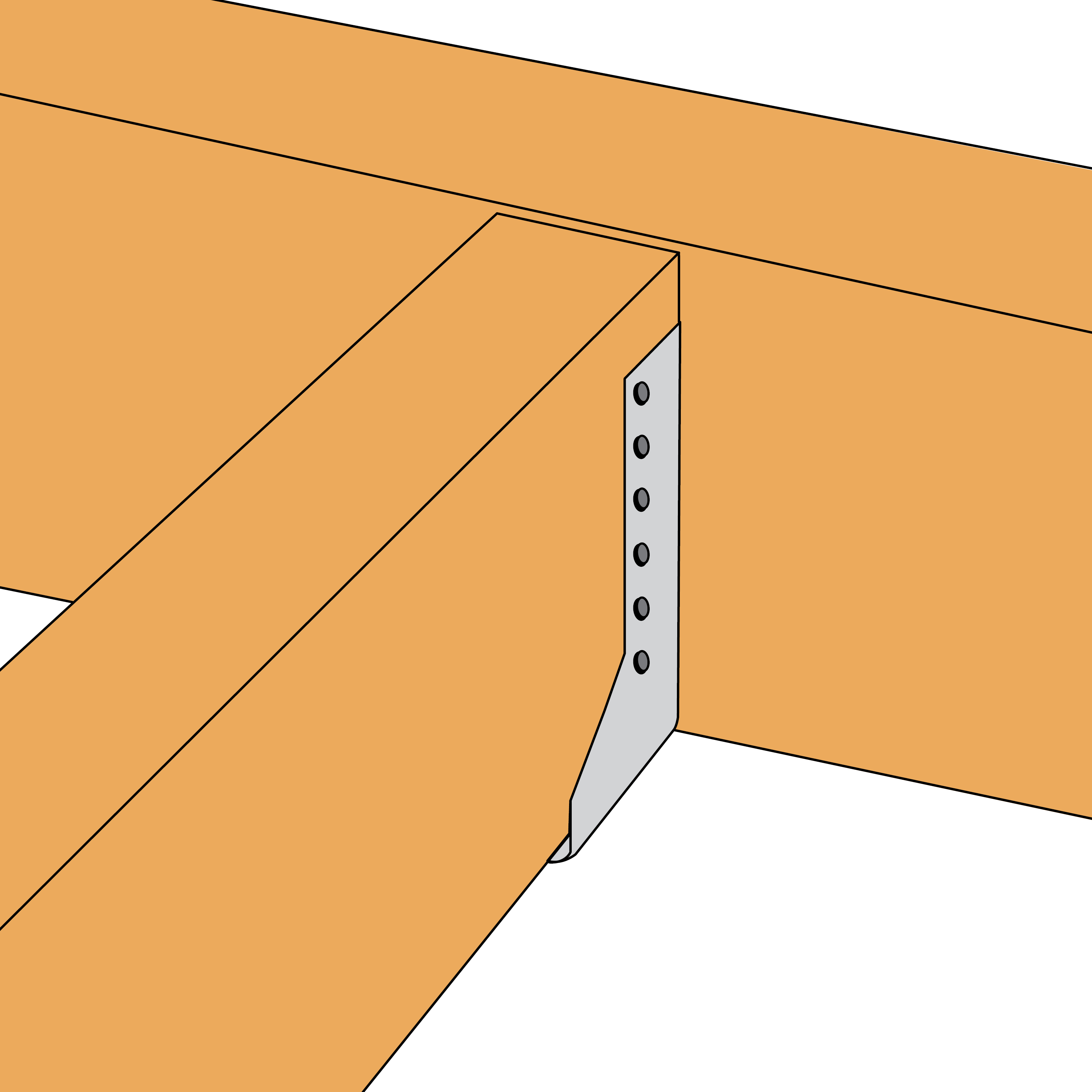

The Simpson Strong-Tie SAI500/91/2 is an engineered, heavy-duty face-fix joist hanger designed specifically for timber-to-timber applications requiring additional structural strength. Constructed with concealed internal flanges, this hanger is ideal for corner joints or restricted spaces where a clean visual appearance is required or a standard external flange layout cannot be accommodated.

Product Dimensions & Attributes

  • A (Joist Width): 91mm
  • B (Hanger Height): 205mm
  • C (Seat Depth): 34mm
  • D (Flange Width): 76mm
  • F (Total Depth): 82mm
  • t (Material Thickness): 2.0mm
  • Header Holes (Ø5mm): 32
  • Joist Holes (Ø5mm): 16
  • Unit Weight: 0.66 kg
  • Material Finish: Pre-Galvanised Mild Steel (Z275 Coating)

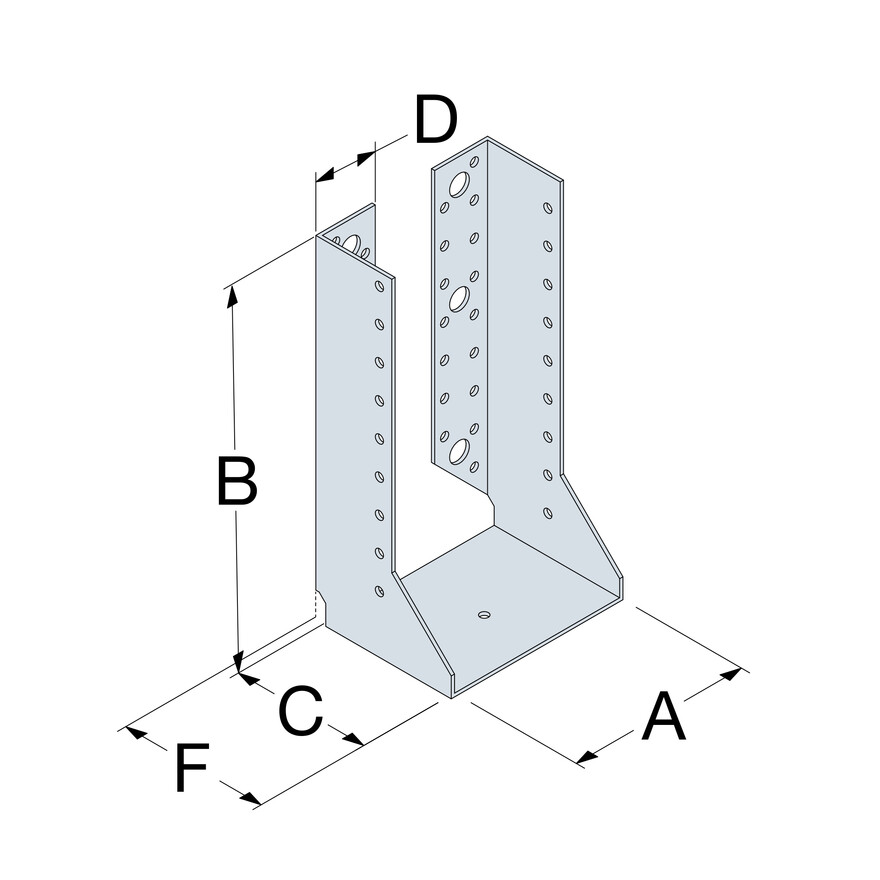

Simpson Strong-Tie SAI Dimensions Blueprint Drawing

Key Performance Features

  • Concealed Internal Flanges: Designed with internal orientation to ensure fixing flanges remain hidden behind the joist, delivering a tidy visual finish and making it perfect for snug boundaries.
  • Thick 2.0mm Gauge Steel: Engineered from high-strength pre-galvanised mild steel to satisfy demanding connection parameters under heavy framing loads.
  • Rotational Resistance: Designed to provide firm lateral containment. Ensure that the total hanger depth covers at least 60% of the carried member's height to prevent joist rotation unless a top lateral restraint is applied.
  • Standardised Hole Pattern: Pre-punched layout distributes fastening stress uniformly across timber framing structures during high-load distributions.
  • Optimised Site Installation: Offers straightforward and rapid installation, utilizing industry-standard nails with clearly mapped out positioning profiles.

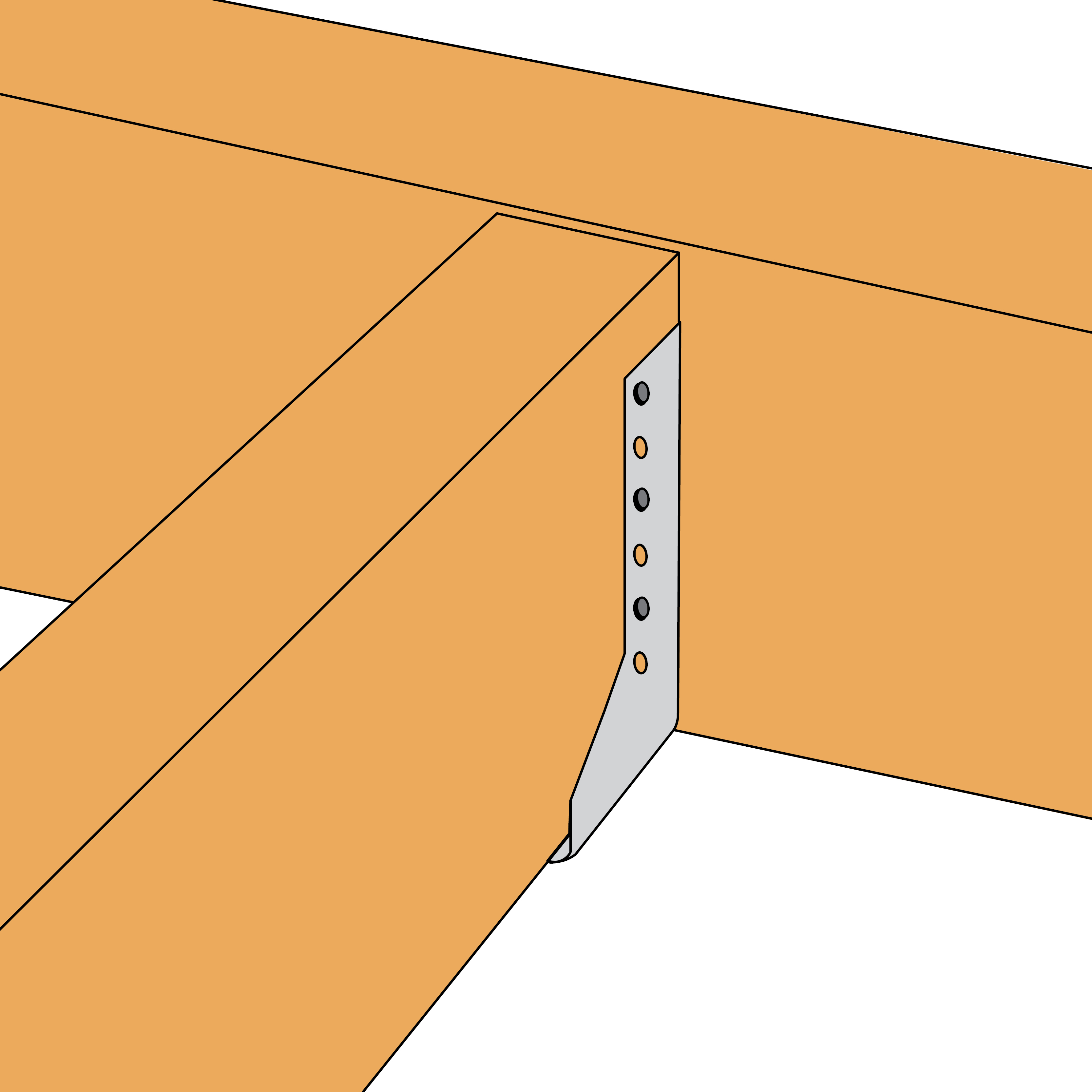

Engineered Performance & Safe Working Loads (Full Nailing)

Fixing Layout Fasteners (3.75x30mm) Char. Capacity (R1,k) Timber C24 SWL Long Term (C16 Header) SWL Long Term (C24 Header) Short Term Uplift (R2,k)
Full Nailing 32 Header / 16 Joist 35.6 kN 13.9 kN 14.8 kN 12.2 kN

Note: All certified characteristic and safe working load (SWL) values are calculated using standard 3.75 x 30mm square twist nails across all specified hole pathways. Please note that SAI concealed hangers are not recommended for structural bolted installations.
