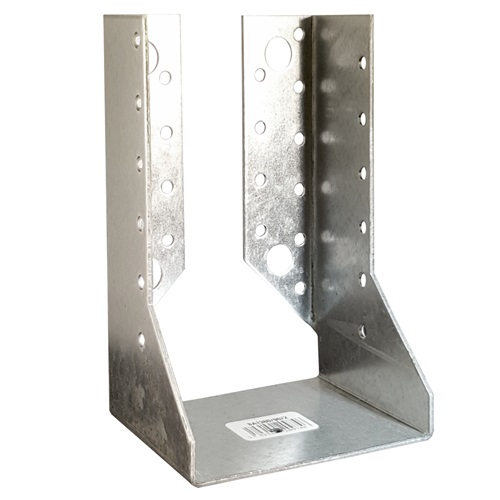

Simpson Strong-Tie SAI380/90/2 90mm Width

x 145mm Height Concealed Hanger Pre-Galv

Simpson Strong-Tie

Product Code: 78SAI380090

Model Code: SAI380/90

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £3.79 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

58 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 24 4.7400 £4.74
25+ 3.7920 £3.79
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / CONCEALED & INTERNAL FLANGE JOIST HANGERS

Simpson Strong-Tie SAI380/90 Heavy Duty Internal Flange Hanger (90mm x 145mm)

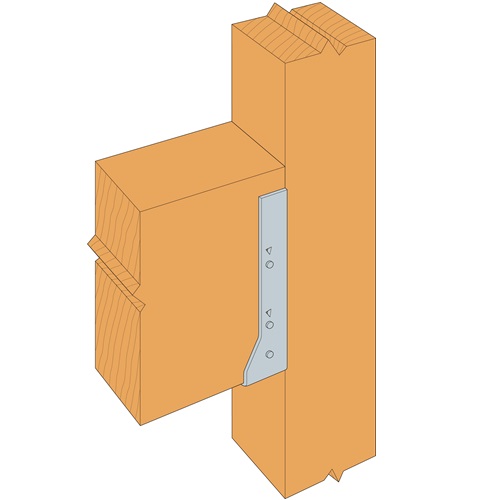

The Simpson Strong-Tie SAI380/90 (SAE380/90/2) is an industrial-grade, heavy-duty face fix joist hanger engineered with inward-turned internal fixing flanges to deliver a sleek, concealed finish. Designed specifically for securing 90mm wide solid sawn timber joists, glulam, LVL, and deep engineered wood members, this structural connector is ideal for tight corner joints, boundary positions, or applications where external flanges would interfere with adjacent cladding or structures. Manufactured from 2.0mm thick pre-galvanised steel, it features a generous 76mm seat depth and pre-punched fastener patterns for high shear load capacities across floor framing and structural timber connections.

RECOMMENDED INSTALLATION FASTENERS

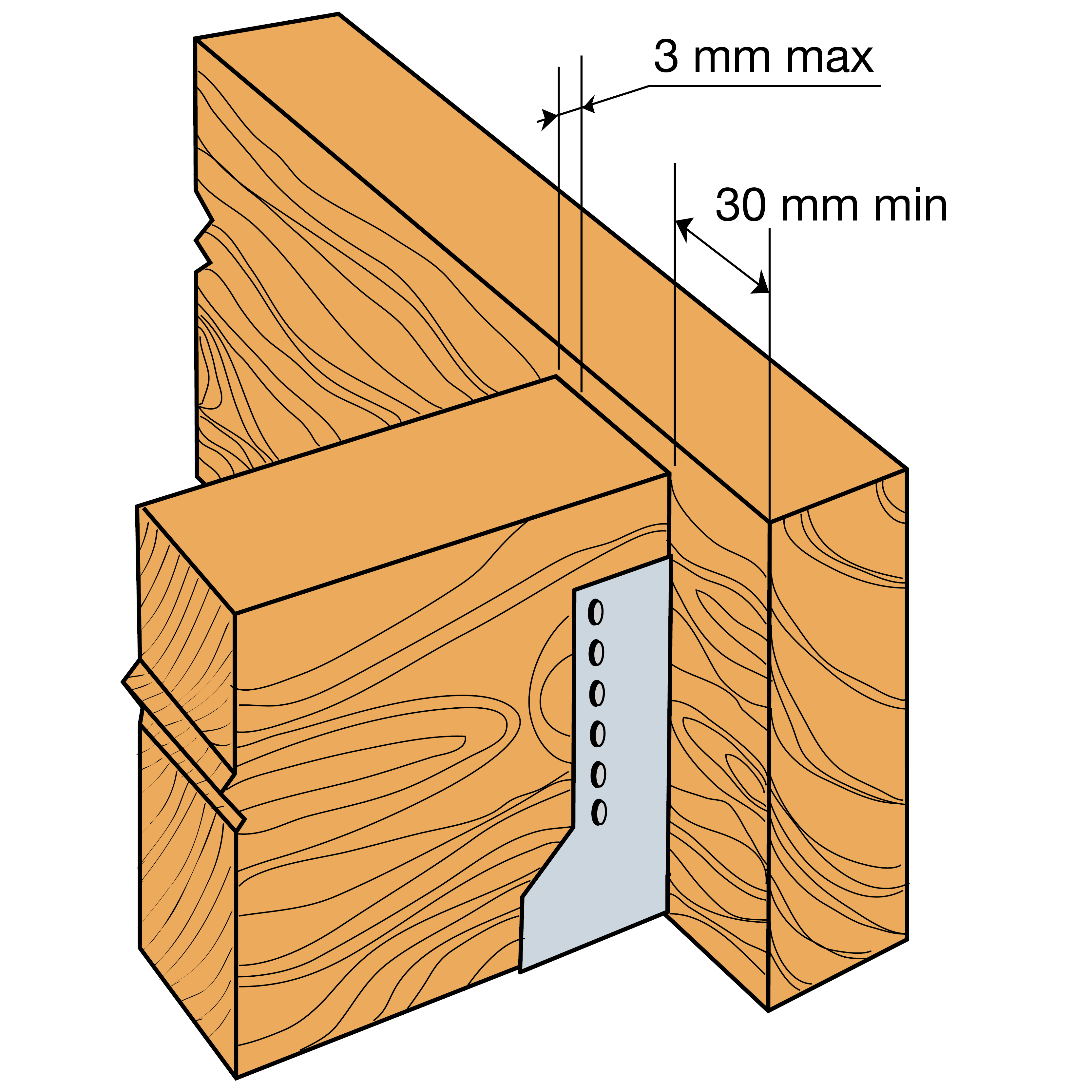

To achieve published structural load values and satisfy UK building control regulations, the SAI380/90 must be installed using specified 3.75x30mm square twist nails or CNA connector nails. Ensure all header and joist nail holes are filled as required by the structural layout specification. Note: Internal flange (SAI) hangers are not recommended for structural bolted applications.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

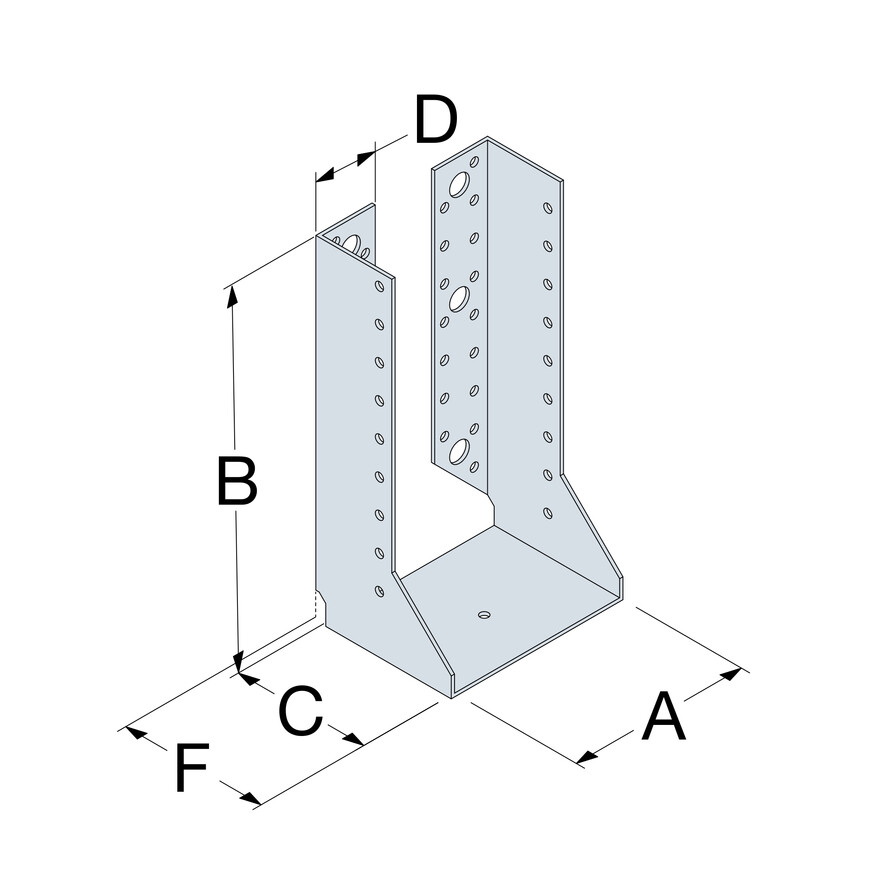

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie SAI380/90 internal flange heavy duty face fix joist hanger technical drawing dimension diagram
Key Dimension Description SAI380/90 Value
A Internal Width (Joist Width) 90 mm
B Internal Height (Joist Depth) 145 mm
C Bearing Seat Depth 76 mm
D Flange Width 34 mm
F Overall External Depth 82 mm
t Steel Gauge Plate Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Supported Joist Dimensions 90mm width x 145mm depth (suitable for extended timber depths with lateral restraint)
Material Steel Grade 2.0mm G275 structural pre-galvanised mild steel
Corrosion Protection Grade Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Header Nail Holes (Ø5mm) 20 No. pre-drilled structural nail locations
Joist Nail Holes (Ø5mm) 12 No. pre-drilled structural nail locations
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0270)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

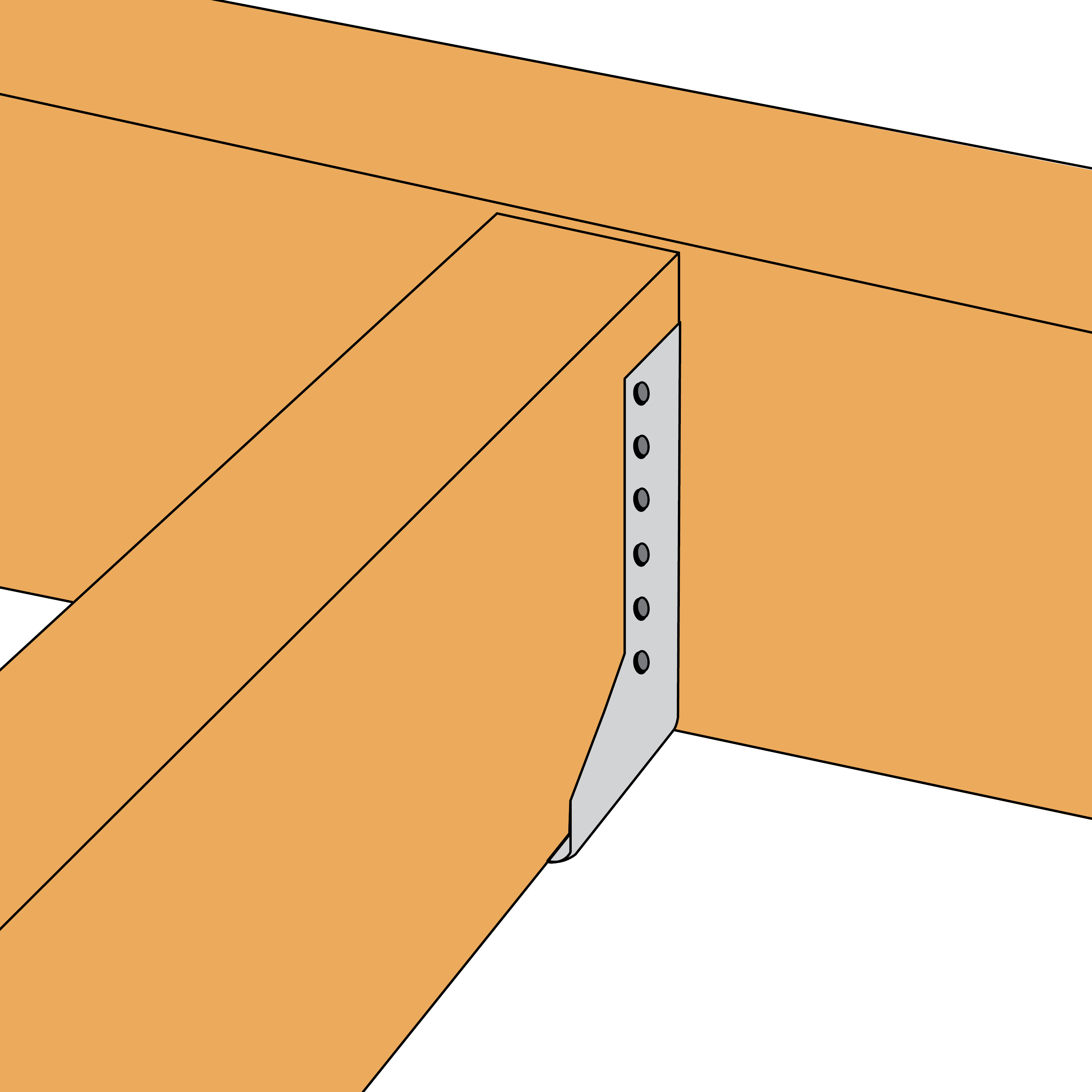

  • Concealed Internal Flanges: Turn inward to hide fixing flanges completely behind the carried member, creating an aesthetically clean finish and allowing joists to flush up tightly against walls or adjacent corner framing.
  • Heavy-Duty 2.0mm Construction: Engineered from thick G275 pre-galvanised steel to handle high downward and shear loads in heavy timber structures.
  • Generous 76mm Bearing Seat: Delivers maximum support area for the incoming joist, reducing localized timber crushing stress and boosting joint stability.
  • Fully Building Code Certified: ETA and UKCA compliant to maintain strict structural compliance across commercial and residential timber frame assemblies.
CLICK HERE TO SEE THE FULL SAI CONCEALED JOIST HANGER RANGE
