Simpson Strong-Tie SAE500/182/2 182mm Width

x 159mm Height Face Fix Hanger Pre-galvanised

Simpson Strong-Tie

Product Code: 78SAE500182

Model Code: SAE500/182/2

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £3.16 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

5 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 24 3.6120 £3.61
25+ 3.3600 £3.36
50+ 3.1560 £3.16
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*

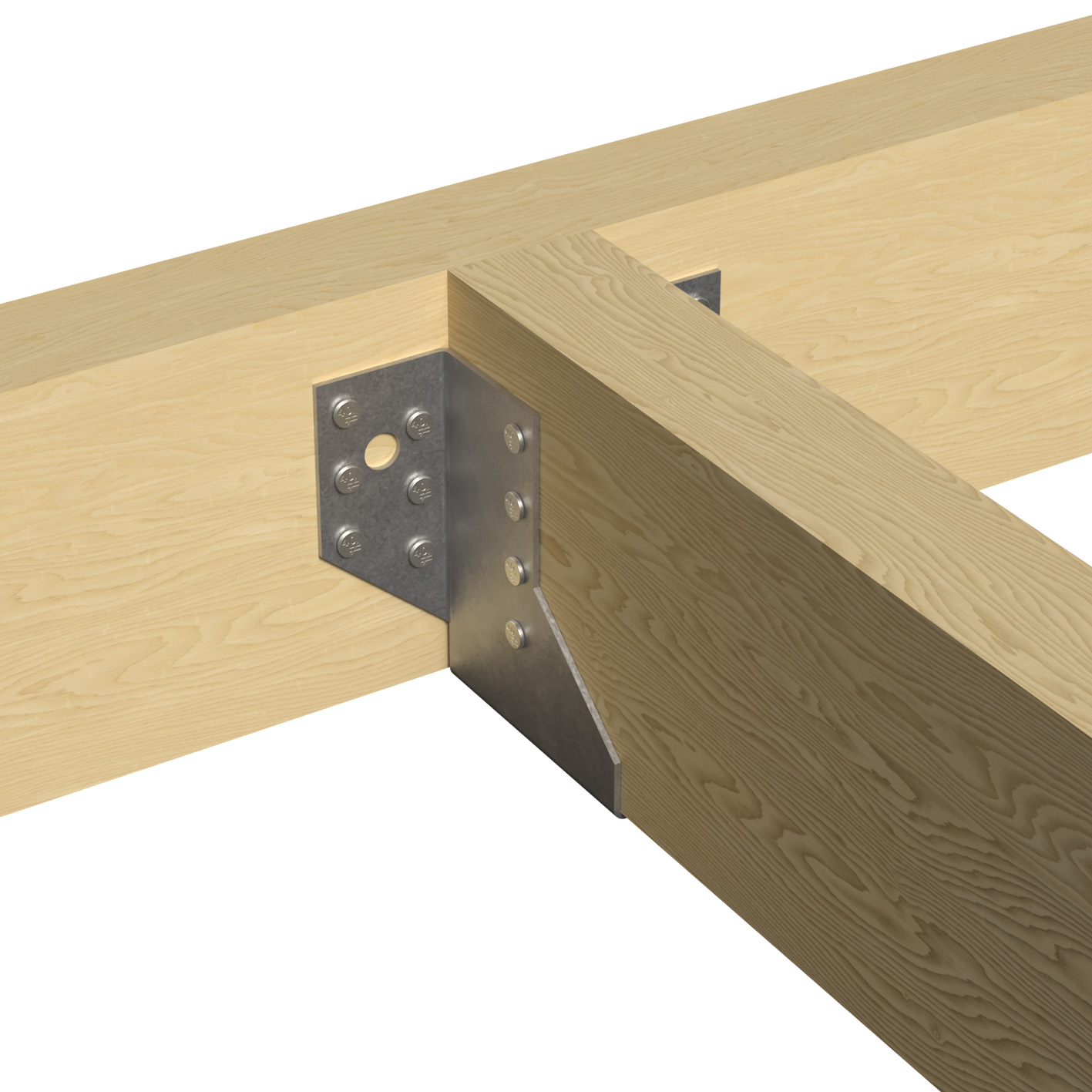

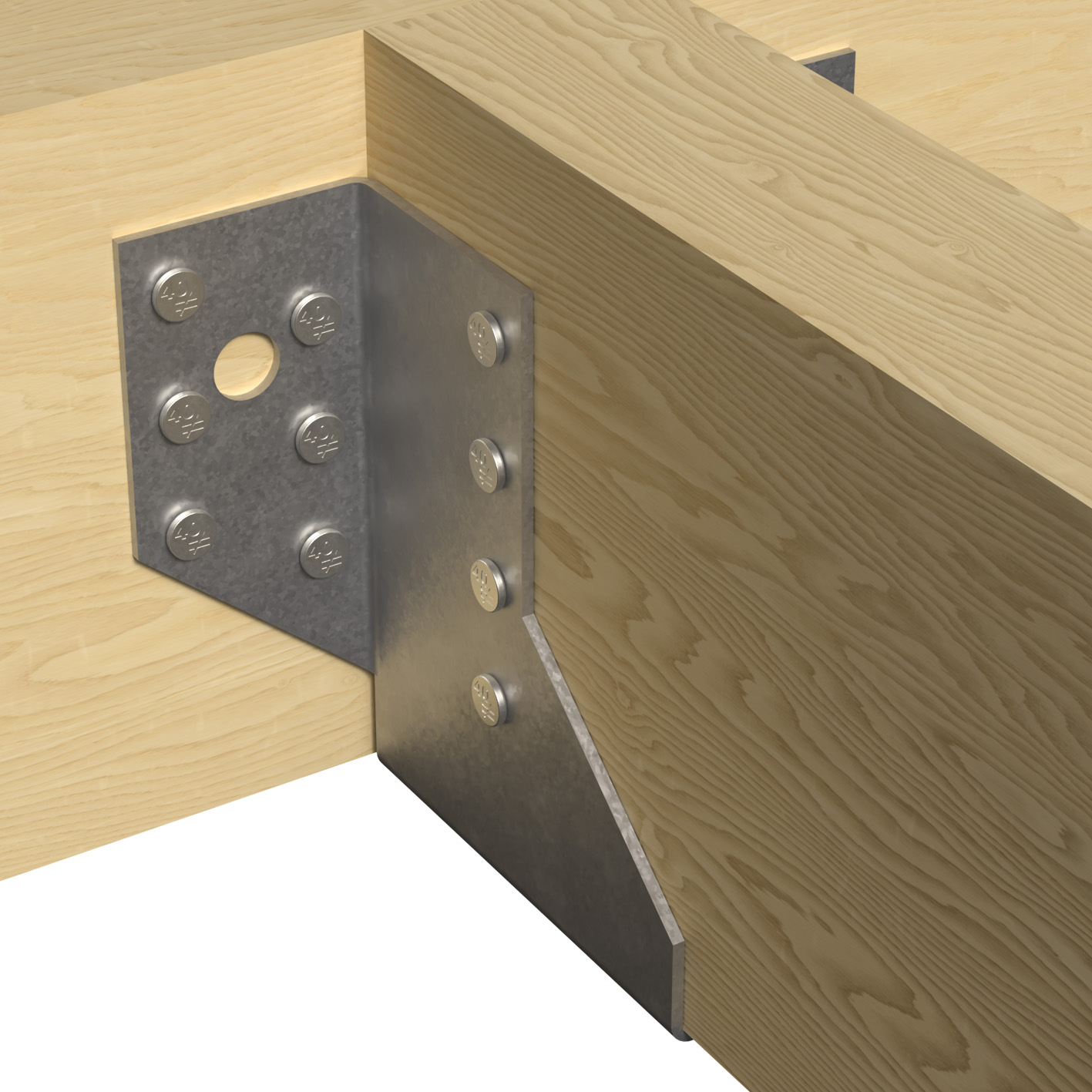

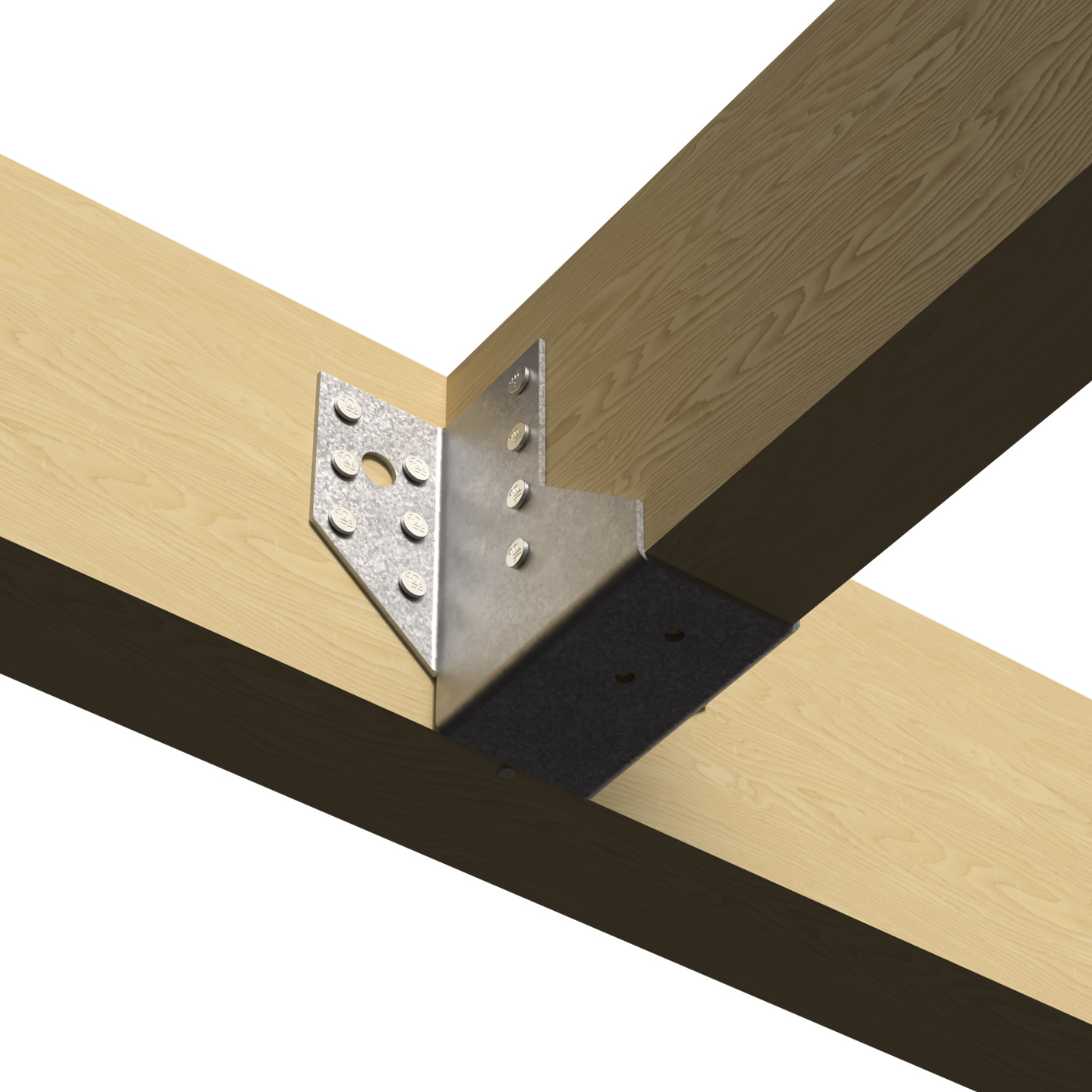

The Simpson Strong-Tie SAE500/182 is a high-performance, heavy-duty face-fix joist hanger designed for 182mm wide timber. Unlike standard hangers, the SAE range is manufactured from 2.0mm thick pre-galvanised steel, making it ideal for structural applications where high load-bearing capacity is required.

This hanger is uniquely versatile, featuring a combination of small holes for 3.75x30mm square twist nails and larger Ø11mm holes for M10 bolts or anchors, allowing it to be secured into timber, masonry, or steel headers.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

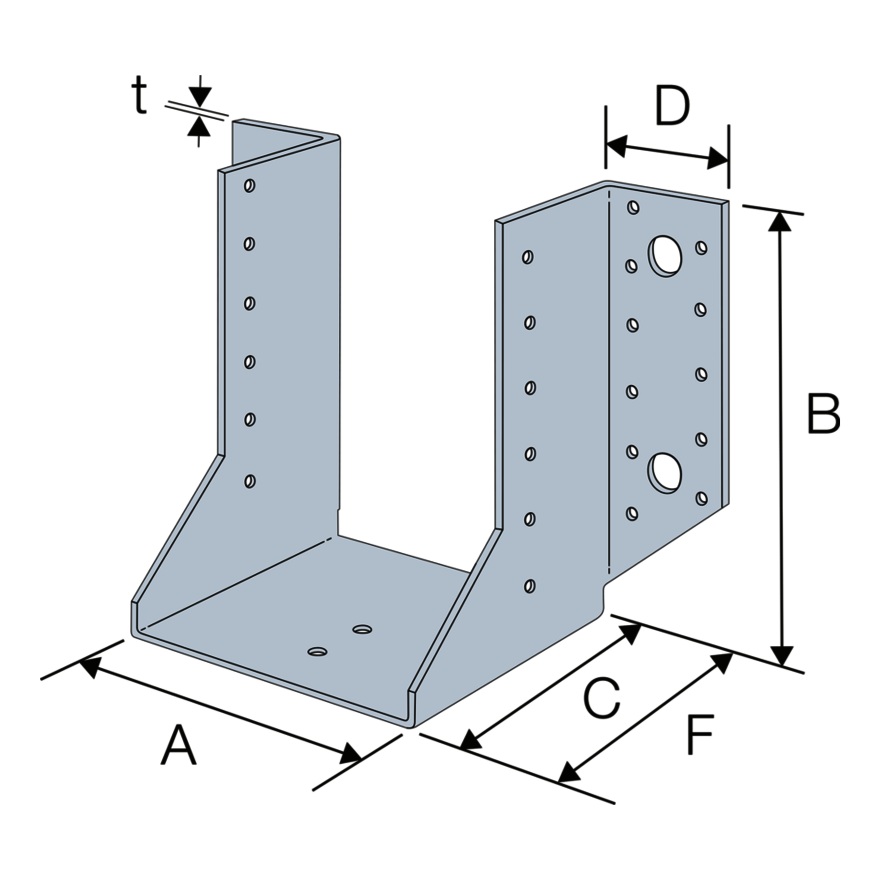

Product Dimensions & Materials

  • A = 182mm
  • B = 159mm
  • C = 84mm
  • D = 41.5mm
  • F = 86mm
  • t = 2mm
  • Header holes = 38
  • Joist holes = 16
  • Material = Pre-galvanised mild steel

Product Features:

  • Heavy-Duty Gauge: 2.0mm steel thickness for maximum structural rigidity.
  • Multi-Substrate Fixing: Engineered for timber-to-timber, timber-to-masonry, and timber-to-steel applications.
  • Certified Quality: Fully CE Marked and ETA-06/0270 approved.
  • Corrosion Resistance: Pre-galvanised finish (Z275) for long-term protection in Service Class 2 environments.


Installation Note: For maximum load capacity, ensure all nail and bolt holes are filled as per the Simpson Strong-Tie nailing schedule. The hanger should support at least 60% of the joist height to prevent rotation.

Data Sheet
Data Sheet
Declaration of Performance
Declaration of Performance
European Technical Assessment (ETA)
European Technical Assessment (ETA)
