Lindapter VN10 M10 2.1kN SWL Fixings

Universal for ComFlor, MetFloor, Holorib

Lindapter

Product Code: 18VN10

Model Code: VN10

Brand: Lindapter

Finish: Zinc Plated


(Include VAT?)

Boxes of 50
Individual Items

From £1.09 inc VAT
( Priced Each )

600 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 99 1.1640 £1.16
100+ 1.0920 £1.09
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




COMPOSITE DECKING CONNECTIONS / SUSPENSION SYSTEM COMPONENTS

Lindapter Type VN M10 Composite Decking Fixing Wedge V-Nut (VN10)

The Lindapter Type VN10 V-Nut is a highly versatile, cost-effective, and efficient secondary structural decking fixing engineered to allow direct suspension of building services and heavy mechanical utilities from composite floor decking systems. Precision manufactured from high-tensile mild steel with a corrosion-resistant bright zinc plated finish, this M10 locking wedge fixing is specifically shaped to seamlessly clear and secure within the internal profile boundaries of dovetail re-entrant channels. By dropping into position post-pour, the Type VN eliminates the requirement for specialised dynamic drilling tools or messy powder-actuated structural anchors, acting as an optimal zero-impact hanging system that preserves structural concrete deck integrity.

CRITICAL STRUCTURAL APPLICATION & COMPATIBILITY MANDATE

The Type VN anchor must be strictly installed after the concrete floor deck slab has been fully poured and has successfully reached its complete rated structural curing strength. The V-Nut is universally designed to fit within profiles sharing standard dovetail re-entrant channel characteristics, including AMDECK 54, R51+, ComFlor 51+, Holorib, Superib, Multideck 50, and MetFloor 55 decking profiles. For installation, screw the VN10 piece onto a minimum grade 4.6 M10 threaded rod, push the full assembly upward directly into the narrow re-entrant decking opening, and execute a firm 90-degree rotation. Ensure the tapered outer wedge wings cleanly rotate over the channel lips to achieve complete, locked mechanical load engagement, then torque to exactly 10 Nm.

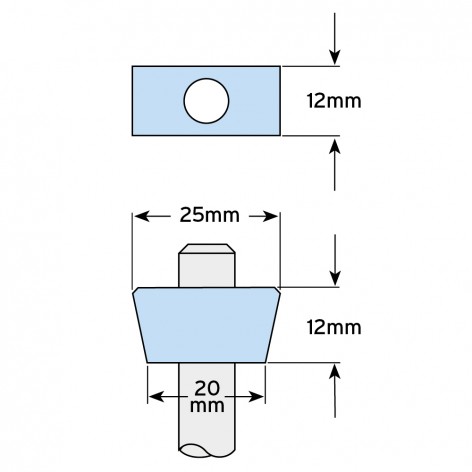

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Lindapter Type VN wedge V-nut composite decking fixing dimension layout diagram
Key Dimension Parameter VN10 Metric Value
Thread (Z) Nominal Internal Rod Size M10
Length Total Top Profile Base Width 25 mm
Height Total Internal Vertical Depth 12 mm
Width Cross-Sectional Wedge Thickness 12 mm

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Performance Standards
Safe Working Tensile Load 2.1 kN baseline safe load limit per single rod configuration (FOS 4:1 integrated safety factor)
Installation Tightening Torque 10 Nm maximum setting threshold to prevent composite metal profile deformation
Fire Rated Tensile Limit (60 Min) 1.00 kN characteristic resistance under F(60) structural safety periods (BS EN 1991-1-2 validated)
Fire Rated Tensile Limit (90 Min) 0.70 kN characteristic resistance under F(90) structural safety periods (BS EN 1991-1-2 validated)
Fire Rated Tensile Limit (120 Min) 0.40 kN characteristic resistance under F(120) structural safety periods (BS EN 1991-1-2 validated)
Reaction to Fire Classification Class A1 Non-Combustible rating per EC decision 96/603/EC (no contribution to fire)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Zero-Impact Installation Strategy: Eliminates structural deck drilling and shot-firing, completely preventing profile delamination or subsurface concrete matrix micro-cracking.
  • Multi-Profile Dovetail Versatility: Universally fits multiple proprietary profiles like ComFlor 51+, Multideck 50, and MetFloor 55 from a single stock item.
  • On-Site Linear Adjustability: Threaded rod assembly slides easily along the span of the re-entrant channel, providing seamless positional correction for service layouts before final torquing.
  • No Specialist Labor or Tooling: Demands no high-cost plant or drilling gear, substantially cutting down active installation times and lowering total containment installation overheads.
