Lindapter COM10 M10 ComFlor Decking Clamp

Bright Zinc Plated for ComFlor 60/80

Lindapter

Product Code: 18COM10

Model Code: COM10

Brand: Lindapter

Finish: Zinc Plated


(Include VAT?)

Boxes of 50
Individual Items

£1.56 inc VAT
( Priced Each )

200 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




COMPOSITE DECKING CONNECTIONS / SUSPENSION SYSTEM COMPONENTS

Lindapter Type COM M10 ComFlor Composite Decking Clamp (COM10)

The Lindapter Type COM10 ComFlor Clamp is a premium structural secondary fixing manufactured to provide a safe, rapid method for suspending mechanical services, cable containment, and pipework installations directly from composite floor profiles. Explicitly designed to lock natively into the dovetail re-entrant channel profile of ComFlor 60 and ComFlor 80 steel decking manufactured by Tata Steel, this M10 anchor consists of a two-piece cold-formed steel wedge nut and a pre-galvanised locking plate. By utilising the integral re-entrant channel track, the Type COM bypasses the traditional requirement for overhead dynamic concrete drilling or dangerous powder-actuated tools, ensuring a completely non-destructive installation process that preserves the design strength and fire-containment performance of the concrete floor slab.

CRITICAL STRUCTURAL APPLICATION & COMPATIBILITY MANDATE

The Type COM10 decking assembly must strictly be installed following the complete structural curing of the overhead poured concrete floor deck slab. This fixing is custom-contoured for precise structural alignment within the dove-tailed profiles of Tata Steel ComFlor 60 and ComFlor 80 building decks. For installation, pre-assemble the locking plate and wedge onto an M10 threaded rod line, then insert the wedge upward into the narrow entry slot of the re-entrant channel. Execute a firm 90-degree mechanical rotation to span the internal locking wings across the internal decking flanges. Screw the rod upward until it contacts the top of the deck profile, slide the pre-galvanised locking plate firmly over the wedge to prevent rotational slippage, and complete the installation by tightening the locknut below to a strict maximum torque value of 10 Nm.

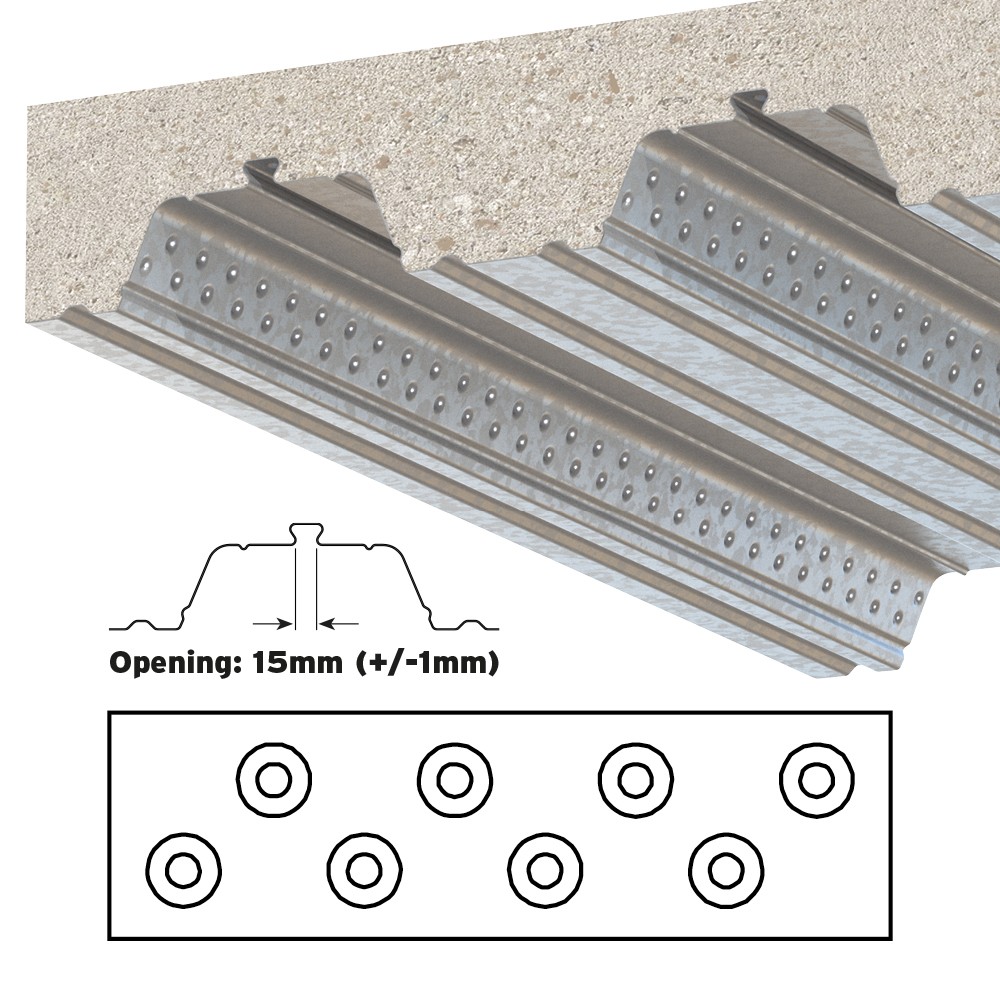

DECKING PROFILE IDENTIFICATION

For decking type ComFlor 60 & 80

Lindapter Type COM composite steel profile drawing for ComFlor

TECHNICAL SPECIFICATION DRAWING

Key Dimensions & Values

Key Dimension Parameter COM10 Value
Thread (Z) Internal Rod Size Diameter M10
Material Wedge Composition Cold Formed Steel
Finish Anti-Corrosion Plating Specification Electro Zinc Plated

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Performance Standards
Safe Working Tensile Load 1.25 kN maximum safe working load rating per rod assembly (FOS 3:1 factor of safety)
Installation Tightening Torque 10 Nm structural tightening value to prevent composite thin-gauge track distortion
Decking Compatibility Fit Exclusively engineered for structural locking within Tata Steel ComFlor 60 and 80 floor profiles
Reaction to Fire Classification Independently fire-tested and assessed according to BS EN 1991-1-2 criteria guidelines

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Zero-Impact Site Strategy: Bypasses overhead heavy concrete diamond core drilling and dynamic cartridge firing, completely protecting the concrete slab matrix from micro-cracking risks.
  • Two-Piece Anti-Vibration Design: Custom matching pre-galvanised locking plate slides perfectly over the structural wedge to eliminate rotational slip paths caused by plant services or building motion.
  • Rapid Parallel Adjustment: Allows easy parallel positioning along the decking profile vector before tightening locknut protocols are fully executed.
  • No Specialist Labour Requirements: Installs using standard trade hand tools without requiring specialist contractor callouts or hot-work fire safety permits.
Purchase Lindapter Type COM Decking Clamps
Data Sheet
Data Sheet
Installation Guide
Installation Guide
