EJOT JC2-KB 6x80/25/40 Concrete Screw

SW13 Hex Head | Zinc Plated (Per 100)

Product Code: 13EJOT9650071314

Model Code: 9650071314

Brand: EJOT


(Include VAT?)

Boxes of 100
Individual Items

From £63.26 inc VAT
( Priced Per 100 )

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 100 Units
1 - 99 0.8052 £80.52
100+ 0.6326 £63.26
Prices inc VAT based on Per 100
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




HEAVY-DUTY MECHANICAL ANCHORS / HIGH-PERFORMANCE CONCRETE SCREWS

EJOT JC2-KB 6x80/25/40 Hex Head Concrete Screw (Box of 100)

The EJOT JC2-KB 6x80/25/40 is an elite, high-performance mechanical anchor engineered for heavy-duty, reliable fastening directly into cracked and non-cracked concrete substrates. Precision-manufactured from high-grade carbon steel and protected by a robust zinc-plated finish, this self-tapping concrete bolt features an integrated washer under a firm SW13 hexagonal drive head. By cutting its own internal thread tracking lines natively into the masonry matrix during installation, the JC2-KB delivers maximum mechanical interlock capacities without generating expansion stresses. This advanced engineering profile permits exceptionally close edge distance vectors and reduced spacing configurations that would instantly fracture standard expansion sleeves or plug anchors, providing unmatched load-bearing security for critical structural site applications.

EXCLUSIVE TRADE PROCUREMENT & PROJECT DISCOUNT SUPPORT

As part of our commitment to supplying the comprehensive, specialised EJOT product range with unparalleled component availability, we provide bespoke commercial support for large-scale contract requirements. We understand that large structural installations demand tailored commercial packages; therefore, we actively bypass rigid, off-the-shelf pricing models. If you have an active commercial project requiring high volumes or need to challenge project costings on a case-by-case basis, please contact our expert sales team directly to discuss competitive volume-based trade discounts negotiated in direct partnership with the manufacturer.

CRITICAL STRUCTURAL APPLICATION & SPECIFICATION MANDATE

The JC2-KB 6x80/25/40 is explicitly fully approved under European Technical Assessment (ETA) regulations for dual deployment parameters. It features dual embedment flexibility configurations to suit specific architectural loads. For maximum structural holding strength, it can be set at an embedment depth of 55mm to secure a fixture thickness of up to 25mm. Alternatively, for shallow concrete depths or smaller loading thresholds, it can be set at an embedment depth of 40mm to secure a thicker fixture of up to 40mm. Installation requires pre-drilling a precise 6mm pilot channel using an impact masonry bit, executing complete bore-hole dust clearance extraction, and driving the high-torque screw directly home using an un-impacted SW13 mechanical socket drive.


ANCHOR GEOMETRY IDENTIFICATION

Hex Head with Integral Washer Profile

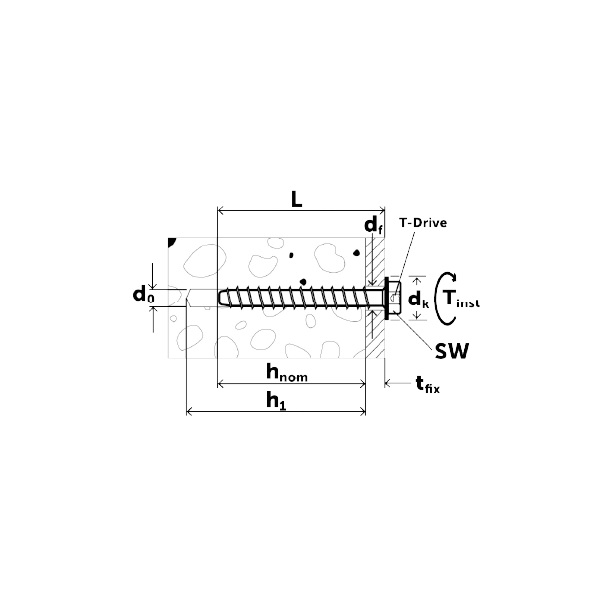

EJOT JC2-KB hex head concrete screw dimensional engineering design drawing

TECHNICAL SPECIFICATION DATA

Key Geometric & Fastener Values

Parameter Description JC2-KB Value
Diameter (d0) Nominal Bore Hole Drill Bit Size 6.0 mm
Length (L) Total Anchor Shaft Length 80 mm
Drive / AF Across Flats Socket Profile SW13 Hex
Fixture (t_fix) Maximum Attachable Thickness 25 mm / 40 mm
Box Qty Commercial Pack Volume Unit 100 Screws

ANGLE OF SPECIFICATION & PERFORMANCE INDEX

Performance Index Validated Structural Ratings & Compliance Data
Regulatory Approvals CE Marked and Option 1 European Technical Assessment (ETA-21/0014) approved
Embedment Depth (h_ef) Standard 55mm (for max load) / Shallow 40mm depth parameters within concrete
Fire Resistance Level Independently certified for up to TR120 minutes exposure values under standard thermo-stress
Substrate Compatibility C20/25 to C50/60 cracked or non-cracked concrete, solid clay brickwork, and dense sandstone

KEY TECHNICAL PERFORMANCE ADVANTAGES

  • Non-Expanding Interlock Matrix: Cuts deep engagement paths cleanly without continuous radial tensile pressures, preventing perimeter block splitting near outside edge coordinates.
  • Option 1 Cracked Concrete Classification: Fully approved for challenging environments subject to structural deflection, minor vibration, dynamic settlement, or micro-fracture pathways.
  • SW13 High-Torque Interface: Hexagonal flange distribution head provides secure mechanical power delivery during installation while resisting drive recess tearing or shear failure.
  • Bespoke Trade Account Project Rates: Direct case-by-case commercial flexibility available via our engineering sales office, tailoring bulk fastener costs to specific contract constraints.
Purchase EJOT JC2-KB Concrete Screws
Data Sheet
Data Sheet
European Technical Assessment (ETA)
European Technical Assessment (ETA)
