Simpson Strong-Tie
Product Code: 78SFLH300063
Model Code: SFLH300/63
Brand: Simpson Strong-Tie
Finish: Pre Galvanised
£13.84 inc VAT ( Priced Each )
Delivery expected in 2/3 days
FREE Standard Delivery on Orders over £100*

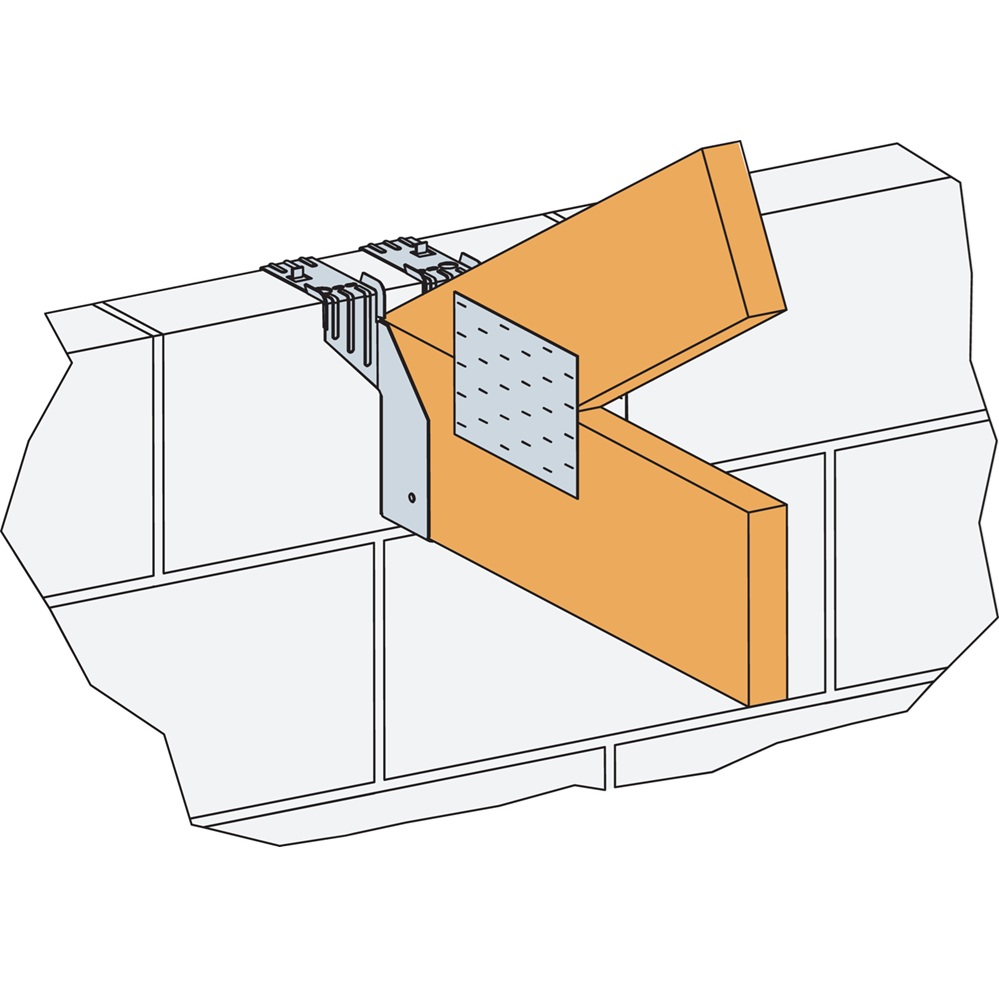

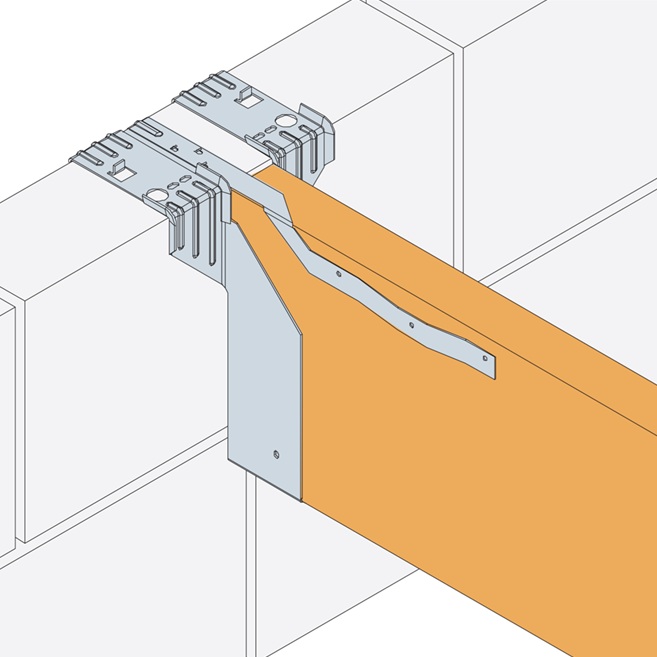

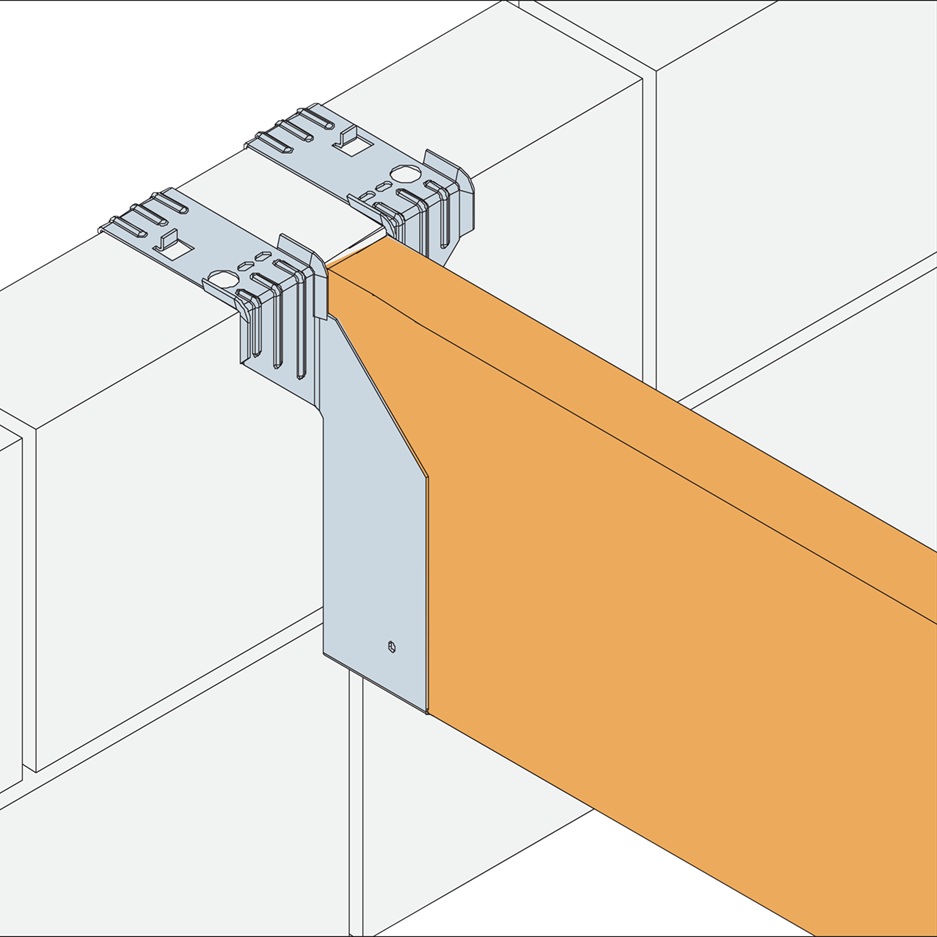

Efficient Masonry-to-Timber Connection with the SFLH300/63
IMPORTANT NOTE: The hanger height is actually 300mm, it is designed with a 10mm undercut to ensure the joist sits flush with the top of the blockwork.
The Simpson Strong-Tie SFLH300/63 is an innovative, single-piece masonry joist hanger engineered to support timber joists directly from masonry walls. Unlike traditional hangers, the SFLH does not require a course of masonry above the hanger to achieve its published load-bearing values, making it an ideal choice for fast-paced construction environments. The SFLH series is engineered to meet Part L air leakage requirements by supporting joists without penetrating the inner masonry leaf, effectively eliminating the need for additional mortars, mastics, or proprietary joist sealants.
Key Features & Benefits:
Rapid Installation: Allows floor deck construction to proceed just 3 days after the supporting blockwork is laid (compared to the industry-standard 28 days).
Enhanced Energy Efficiency: Designed specifically to help meet air leakage requirements for the Code for Sustainable Homes. By supporting the joist without penetrating the inner blockwork leaf, it eliminates the need for time-consuming mortaring or mastic sealing.
High Performance: Achieves full structural capacity without the weight of additional masonry courses above the flange.
Safety First: Reduces H&S risks by eliminating the need for temporary propping of floor joists during the curing process.
Material Quality: Manufactured from high-grade pre-galvanised mild steel for excellent corrosion resistance and durability.
Air Tightness: Replaces the need for proprietary sealants or "joist socks" because the hanger doesn't penetrate the inner leaf of the cavity wall.
Why choose the SFLH300/63 over standard hangers?
Speed: Most masonry hangers require the mortar to cure for 28 days before loading. The SFLH allows you to install joists and flooring just 3 days after the wall is built.
No "Course Above": It is structurally rated to work without a course of bricks or blocks on top of the flange—perfect for the top of a wall or under a wall plate.
Sustainability: Supports compliance with the Code for Sustainable Homes by reducing thermal bridging and air bypass at the floor-to-wall junction.
No Masonry Above: Important: Unlike standard masonry hangers, the SFLH achieves its full load-bearing capacity without the need for a course of blockwork above the hanger.
Installation Guidance:
Blockwork: Use on blocks with a minimum crushing strength of 3.5N/mm².
Nailing: All holes in the side flanges must be filled with 3.75 x 30mm Square Twist Nails.
Pro Tip: Do not use with mortar that hasn't reached its initial set (wait at least 72 hours).

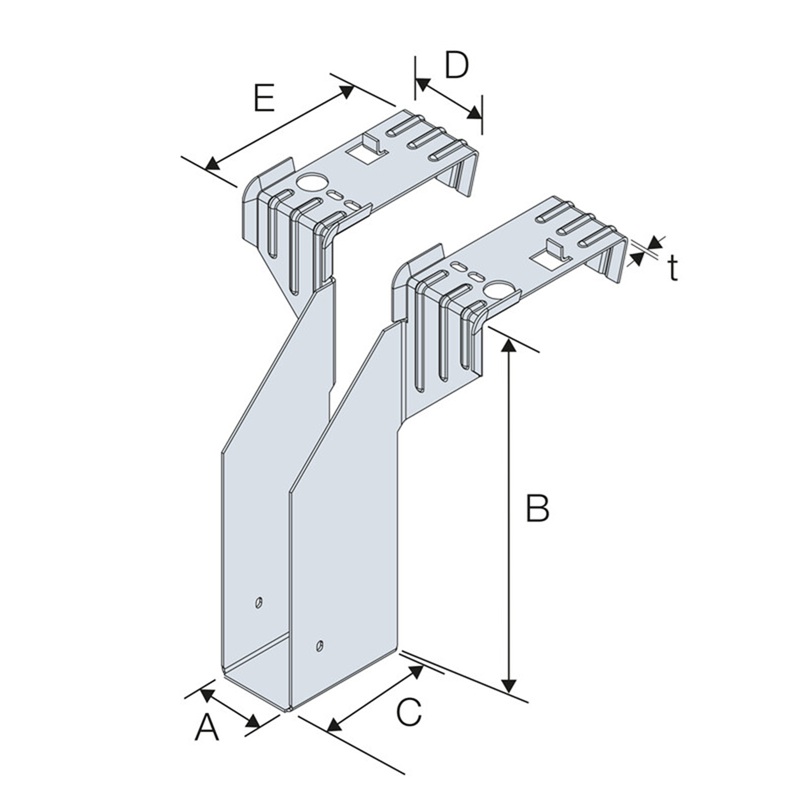

| A | B | C | D | E | F | t |
| 63mm | 290mm | 75mm | 49.5mm | 103mm | 81mm | 1.5mm |
*Hanger height (B), the hanger is 300mm, with a 10mm undercut, which gives the advertised 290mm height.
Dimensions
H (Hanger Height): 300mm
Joist Height: 290mm
Undercut: 10mm (The distance from the top of the joist to the top of the blockwork flange)
W (Width): 63mm
