Simpson Strong-Tie SAE600/63/2 63mm Width

x 269mm Height Face Fix Hanger Pre-galvanised

Simpson Strong-Tie

Product Code: 78SAE600063

Model Code: SAE600/63/2

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £4.68 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

21 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 24 5.5800 £5.58
25+ 4.6800 £4.68
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / HEAVY-DUTY FACE FIX JOIST HANGERS

Simpson Strong-Tie SAE600/63 Heavy Duty Face Fix Hanger (63mm x 268.5mm)

The Simpson Strong-Tie SAE600/63 is an industrial-grade, extra-deep heavy-duty face fix joist hanger engineered specifically for high-capacity structural applications securing 63mm wide solid sawn timber joists and deep engineered wood members. Manufactured from 2.0mm thick pre-galvanised steel, this robust structural connector features an extended 84mm seat depth and pre-punched fastener patterns to deliver maximum shear resistance and structural load capacity across deep floor framing, roof trusses, and timber-to-timber, timber-to-steel, or timber-to-masonry assemblies.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load values and satisfy UK building control regulations, the SAE600/63 must be installed using specified 3.75x30mm square twist nails or CNA connector nails. Ensure all header and joist nail holes are filled as required by the structural layout specification.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

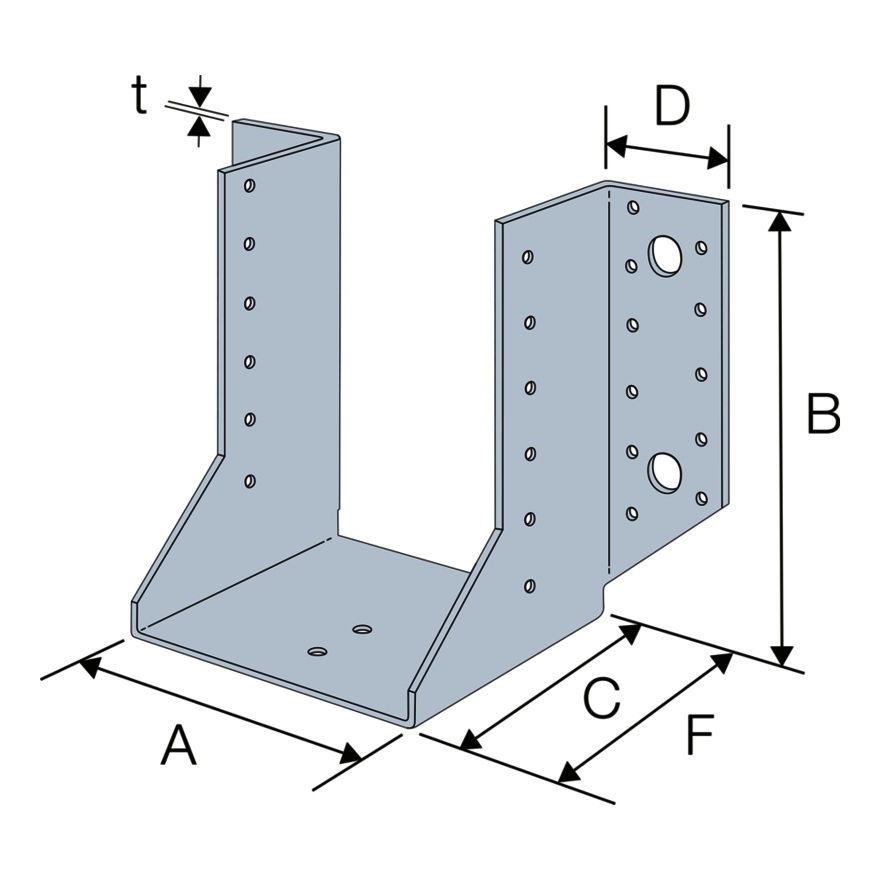

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie SAE600/63 heavy duty face fix joist hanger technical drawing dimension diagram
Key Dimension Description SAE600/63 Value
A Internal Width (Joist Width) 63 mm
B Internal Height (Joist Depth) 268.5 mm
C Bearing Seat Depth 84 mm
D Flange Width 41.5 mm
F Overall External Width 86 mm
t Steel Gauge Plate Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Supported Joist Dimensions 63mm width x 268.5mm depth (suitable for extended timber depths with lateral restraint)
Material Steel Grade 2.0mm G275 structural pre-galvanised mild steel
Corrosion Protection Grade Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Header Nail Holes (Ø5mm) 42 No. pre-drilled structural nail locations
Joist Nail Holes (Ø5mm) 20 No. pre-drilled structural nail locations
Face Bolt Holes (Ø13mm) 6 No. bolt holes for M12 mechanical anchors into masonry, steel, or heavy timber
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0270)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Heavy-Duty 2.0mm Construction: Engineered from thick G275 pre-galvanised steel to handle significantly higher downward and shear loads than standard JHA hangers.
  • Deep 84mm Bearing Seat: Delivers maximum bearing area for the incoming joist, reducing localized timber crushing stress and boosting joint stability.
  • Versatile Hybrid Attachment: Features integrated Ø13mm bolt holes alongside standard Ø5mm nail patterns, allowing heavy-duty bolting directly to concrete, masonry, or steelwork headers.
  • Fully Building Code Certified: ETA and UKCA compliant to maintain strict structural compliance across commercial and residential timber frame assemblies.
CLICK HERE TO SEE THE FULL SAE JOIST HANGER RANGE
Data Sheet
Data Sheet
Declaration of Performance
Declaration of Performance
European Technical Assessment (ETA)
European Technical Assessment (ETA)
