Simpson Strong-Tie PBH120 120mm x 120mm

Heavy Duty Elevated Post Base Galvanised

Simpson Strong-Tie

Product Code: 78PBH120

Model Code: PBH120

Brand: Simpson Strong-Tie

Finish: Hot Dip Galv


(Include VAT?)

Total Price

£118.80 inc VAT

Quantity:

26 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / HEAVY-DUTY POST BASES

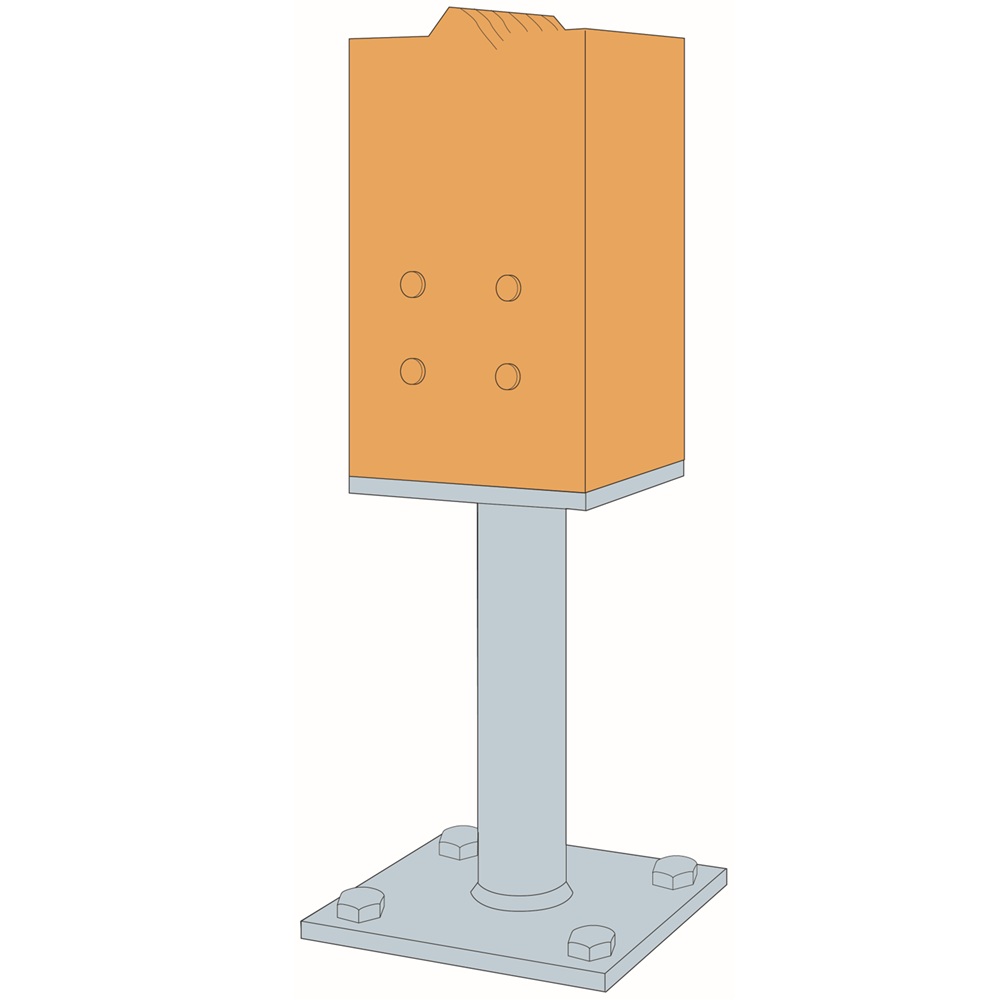

Simpson Strong-Tie PBH120 Heavy-Duty Elevated Post Base (120mm x 120mm)

The Simpson Strong-Tie PBH120 is an engineered, industrial-grade structural post support specifically developed for high-capacity heavy-duty applications including Glulam timber columns. Suitable for timber post sizes ranging from 120x120mm up to 200x200mm, it features a substantial 216mm stand-off height. This elevated configuration ensures absolute structural isolation of the timber column from the concrete foundation substrate, eliminating moisture tracking paths and protecting primary load-bearing timbers from fungal decay in demanding Service Class 3 exterior environments.

CRITICAL STRUCTURAL SPECIFICATION: LATERAL RESTRAINT MANDATE

Like all standard stand-off structural supports, the PBH120 operates strictly as a pinned structural connection. It is engineered exclusively to resist vertical axial loads, tension uplift, and horizontal shear—it is not designed to withstand bending moments or rotational momentum. To maintain structural integrity, the top of the timber post must be rigidly secured via an approved lateral restraint configuration (such as floor diaphragms, cross-bracing, or braced beam structures).

Click here to read our industrial engineering guide on why lateral restraint is required.

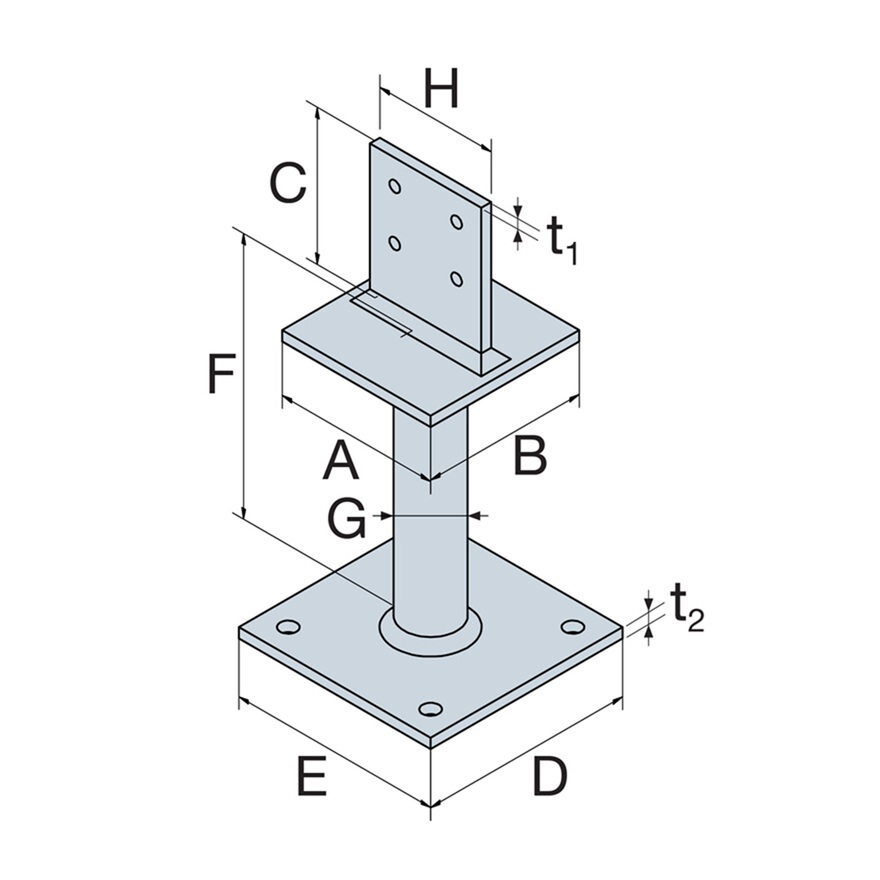

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie PBH120 heavy duty elevated post base structural dimension diagram technical drawing
Key Dimension Description PBH120 Value
A Top Plate Width 120 mm
B Top Plate Length 120 mm
C Vertical Plate Height 155 mm
D Concrete Base Plate Width 155 mm
E Concrete Base Plate Length 155 mm
F Stand-Off Column Isolation Height 216 mm
G Vertical Fin Plate Width 90 mm
t1 Steel Components Plate Thickness 8 mm

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Materials
Base Plate Dimensions 155mm x 155mm square structural footprint
Stand-Off Ground Clearance 216mm clean isolation zone height
Material Composition Premium hot-dip galvanised mild steel plate (Heavy-duty array)
Corrosion Protection Grade Hot-Dip Galvanised (Optimized for Outdoor Service Class 3 exposures; EPD EN 15804 certified)
Characteristic Capacities R1,k (Compression) = 156.4 kN | R2,k (Uplift) = 20.7 kN | R3,k = 8.3 kN | R4,k = 7.7 to 9.2 kN (C24 Timber)

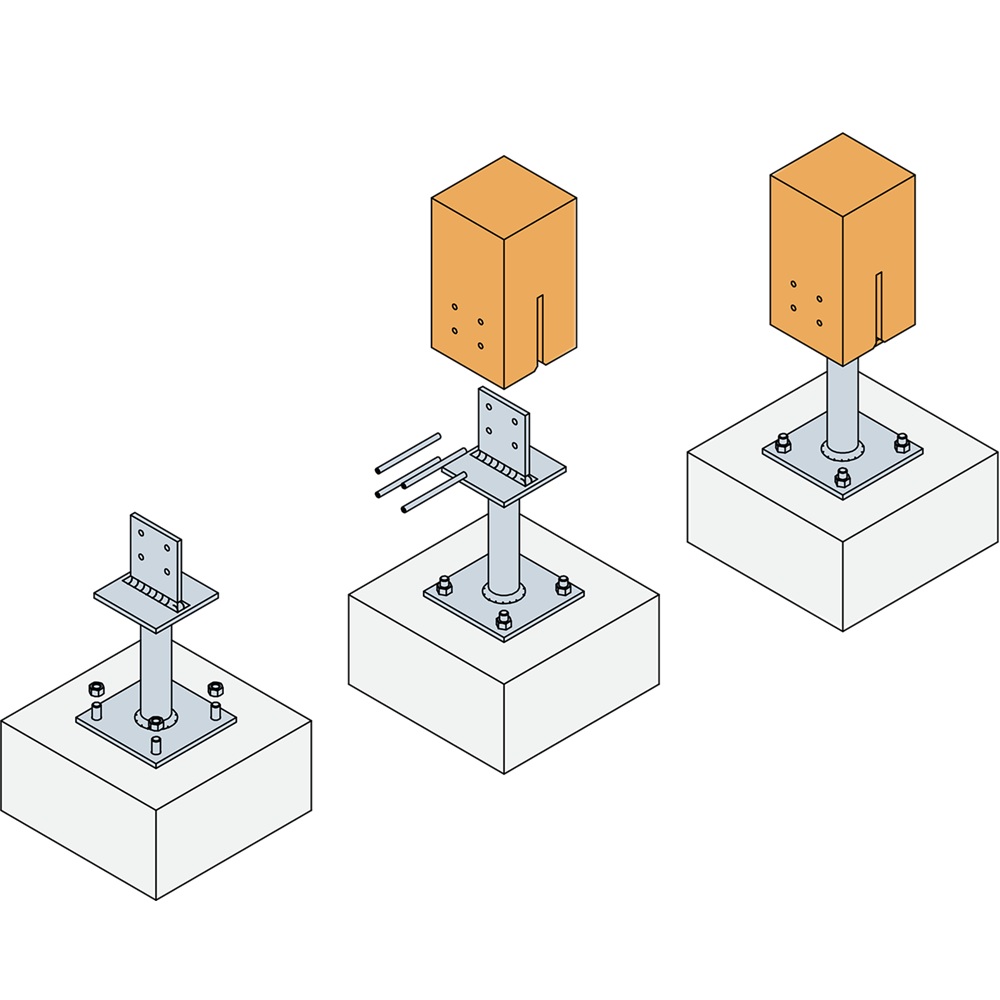

Fastener Requirements (Timber) Requires 4 No. STD 08 structural dowel pins (Dowels included)
Fastener Requirements (Concrete) Requires 4 No. heavy-duty structural anchors (Ø12mm anchor holes provided)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Extreme Structural Load Transfer: Specifically rated for heavy-duty applications, providing a characteristic compression capacity of up to 156.4 kN on structural columns.
  • Advanced Stand-Off Protection: Elevates the column timber base 216mm off the concrete ground substrate, completely blocking moisture tracking paths to prevent timber rot cycles.
  • Maximum Weather Protection: Hot-dip galvanised finish shields internal and external structural steel components from environmental corrosion hazards in Service Class 3 exposures.
  • Regulatory Compliance: Fully CE and ETA certified (ETA 503), maintaining absolute engineered load profiles across all primary structural axes.
Purchase PBH120 Post Bases & Fixing Kits
Data Sheet
Data Sheet
Declaration of Performance
Declaration of Performance
European Technical Assessment (ETA)
European Technical Assessment (ETA)
