Simpson Strong-Tie IHS300 300mm to 302mm

I-Joist Hole Support (Pair)

Simpson Strong-Tie

Product Code: 78IHS300

Model Code: IHS300

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


£43.82 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / I-JOIST HOLE SUPPORTS

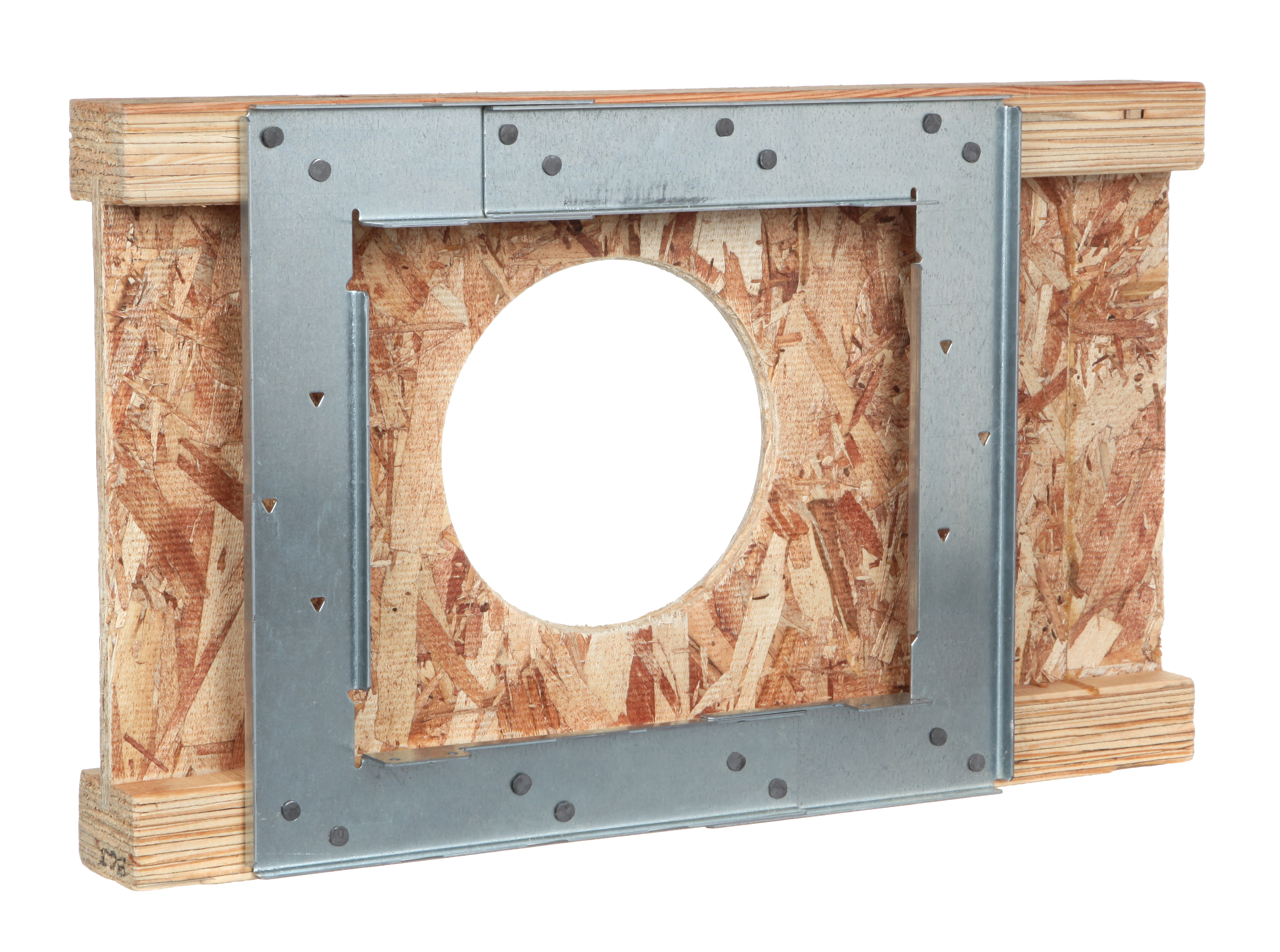

Simpson Strong-Tie IHS300 I-Joist Hole Support (For 300mm–302mm Joists)

The Simpson Strong-Tie IHS300 is an innovative web-reinforcement solution engineered to structurally strengthen 300mm to 302mm deep I-joists when web holes must be cut in locations normally restricted by standard building guidelines. Manufactured from 1.5mm pre-galvanised mild steel, the IHS system allows large rectangular services holes—up to 200mm high by 250mm wide—to be positioned as close as 50mm from the bearing face. Supplied as two sets of interlocking plates (one complete set per side of the joist), it can be retrofitted even around existing pipework, eliminating expensive and labor-intensive timber trimming for Soil Vent Pipe (SVP) runs and HVAC ducting.

RECOMMENDED INSTALLATION FASTENERS

To maintain full shear capacity and satisfy UK building control standards, the IHS300 must be fixed into the top and bottom chords using 3.75x30mm square twist nails. Fastener count depends on the bracket opening width: 24 nails for a 150mm opening or 32 nails for a 250mm opening (per hole support set). Ensure a minimum overlap of 45mm between the interlocking plate halves.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

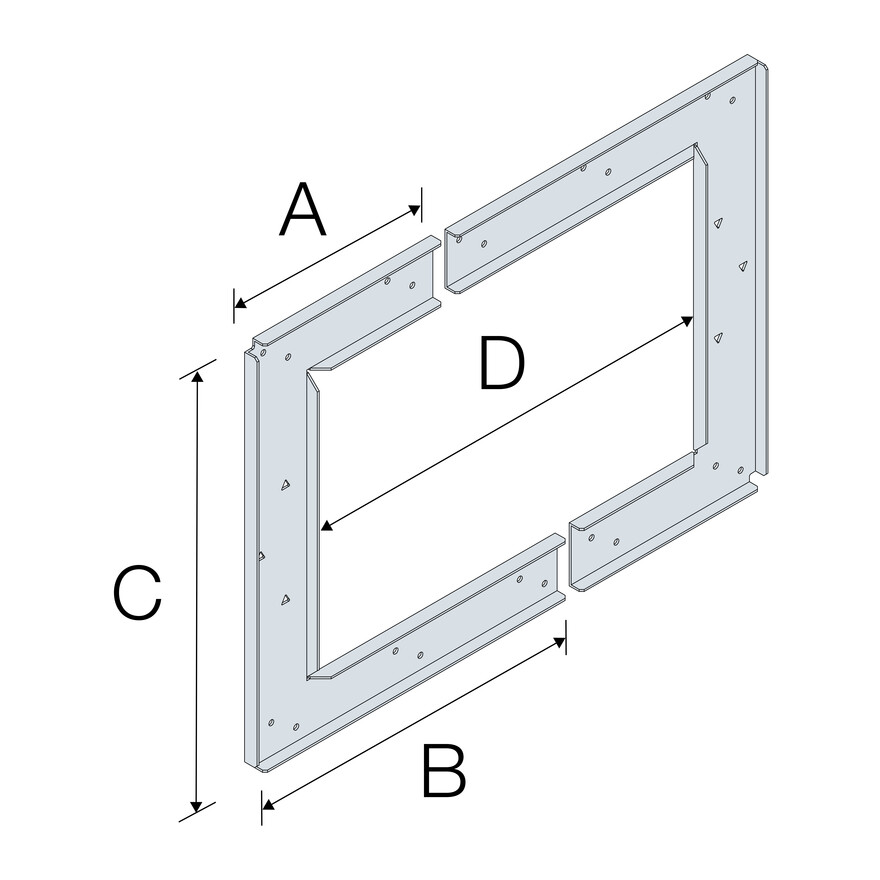

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie IHS300 I-joist hole support technical drawing dimension diagram
Key Dimension Description IHS300 Value
C Overall Bracket Height 296 mm
D1 Minimum Opening Width 150 mm
D2 Maximum Opening Width 250 mm
Max Hole Max Hole Aperture (Depth x Width) 200mm x 250mm
t Steel Plate Gauge Thickness 1.5 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Compatible Joist Height 300mm to 302mm deep I-joists (James Jones JJI, Masonite, Boise, etc.)

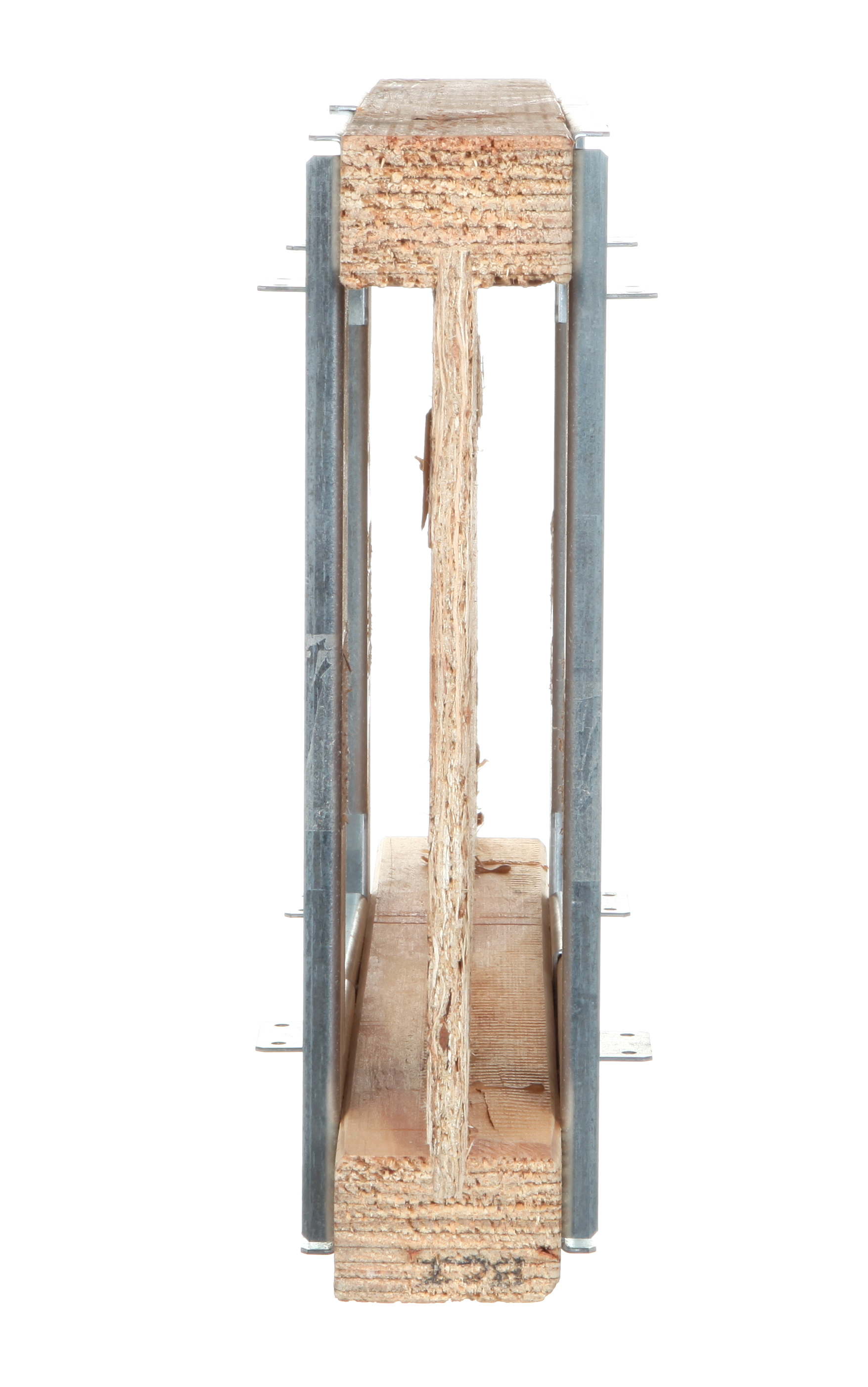

Joist Ply Compatibility Suitable for single-ply and double-ply I-joist configurations
Material Steel Grade 1.5mm pre-galvanised mild steel
Corrosion Protection Grade Pre-Galvanised (Service Class 1 and 2 internal structures)
Nails Required per Hole Set 24 No. (150mm opening) or 32 No. (250mm opening) 3.75x30mm Square Twist Nails

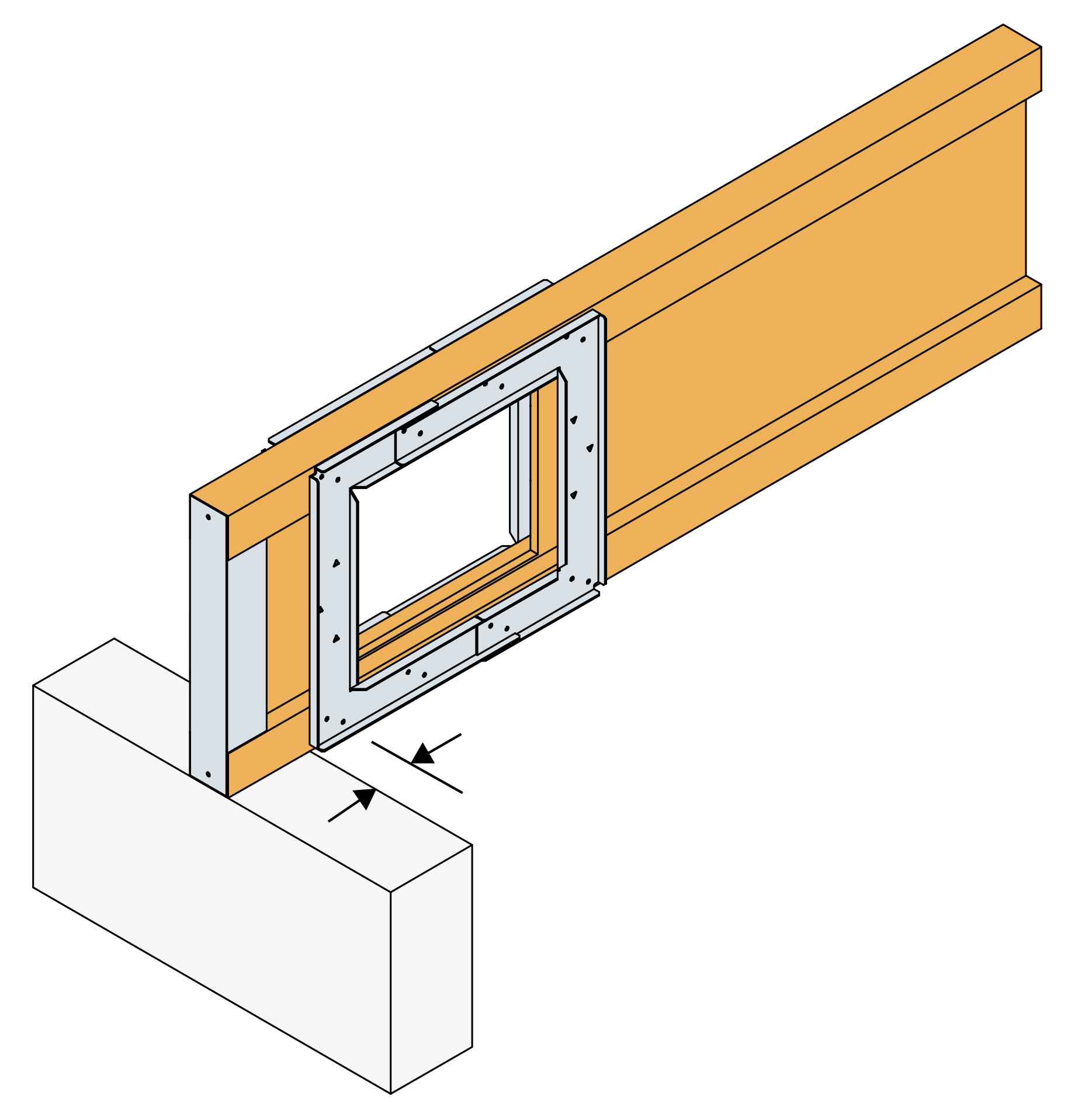

Minimum Bearing Clearance 50mm from edge of cut hole to inner face of support bearing

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Close-to-Bearing Hole Placement: Enables service holes to be cut as close as 50mm to external support walls, simplifying Soil Vent Pipe (SVP) and duct runs without compromising shear strength.
  • Interlocking Retrofit Design: Supplied as 2 pairs of sliding, interlocking plates that easily fit over installed joists or around pre-existing services.
  • Variable Opening Adjustment: Easily adjusts horizontally to accommodate hole widths ranging from 150mm up to 250mm.
  • Saves Time & Trimming Costs: Eliminates complex joist-trimming timber details when rerouting large soil or ventilation pipes through floor zones.
CLICK HERE TO SEE THE FULL IHS HOLE SUPPORT RANGE
