Simpson Strong-Tie APB100/150 100mm-150mm

Adjustable Elevated Post Base Pre-Galvanised

Simpson Strong-Tie

Product Code: 78APB100150

Model Code: APB100150

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £35.98 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

420 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 4 38.3160 £38.32
5+ 36.4920 £36.49
20+ 35.9760 £35.98
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / ADJUSTABLE POST BASES

Simpson Strong-Tie APB100/150 Adjustable Elevated Post Base

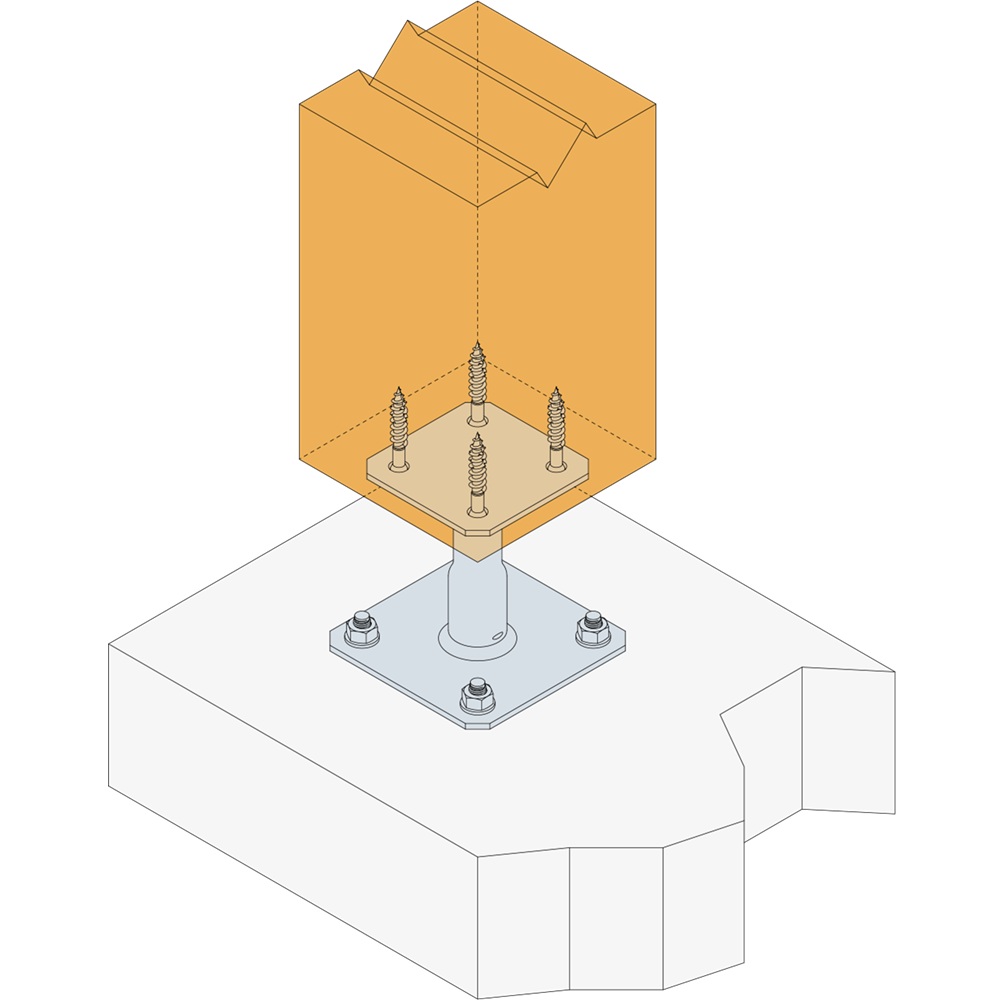

The Simpson Strong-Tie APB100/150 is a highly versatile, precision-engineered adjustable structural timber post support designed for solid and glulam timber columns. Perfect for structures like garage ports and pergolas, it features an integrated adjustment screw that allows the installer to set a custom, precise stand-off clearance height ranging anywhere from 100mm to 150mm. Accommodating timber post dimensions from 100x100mm up to 200x200mm, this elevated configuration isolates the column timber base from ground moisture, mitigating fungal decay risks while complying with modern engineering preferences.

CRITICAL STRUCTURAL SPECIFICATION: LATERAL RESTRAINT MANDATE

Like all standard stand-off structural supports, the APB100/150 operates strictly as a pinned structural connection. It is engineered exclusively to resist vertical axial loads and downward forces—it is not designed to withstand bending moments or rotational momentum. To maintain structural integrity, the top of the timber post must be rigidly secured via an approved lateral restraint configuration (such as floor diaphragms, cross-bracing, or braced beam structures).

Click here to read our industrial engineering guide on why lateral restraint is required.

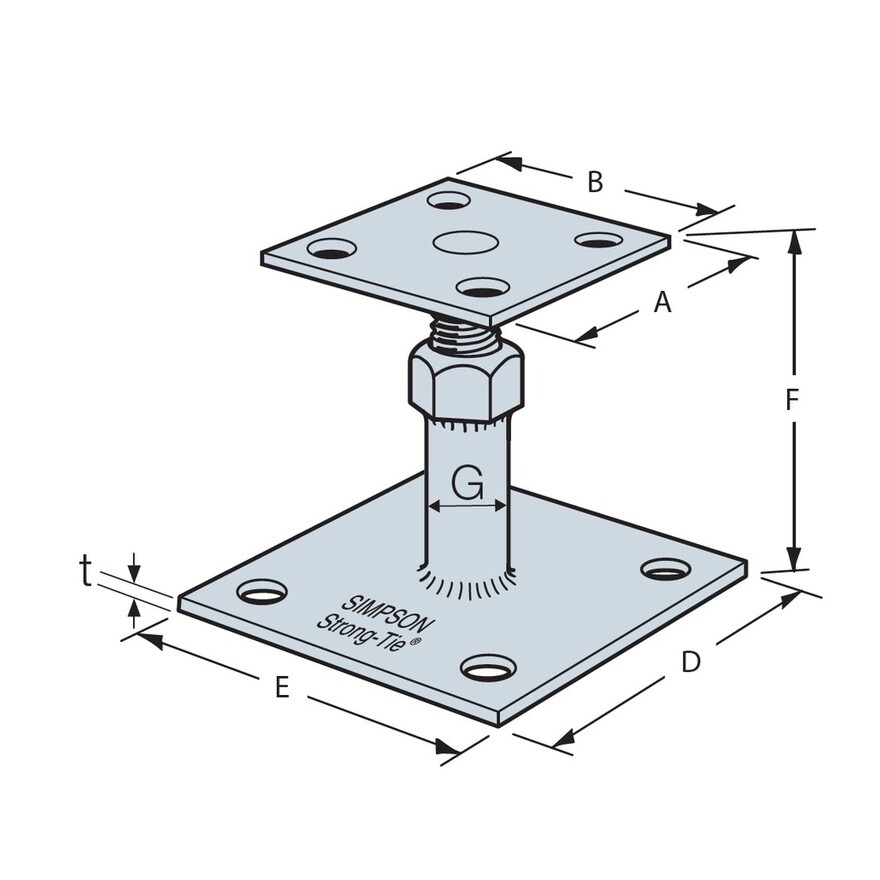

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie APB100/150 height adjustable elevated post base structural dimension diagram technical drawing
Key Dimension Description APB100/150 Value
A Top Plate Width 100 mm
B Top Plate Length 100 mm
D Concrete Base Plate Width 130 mm
E Concrete Base Plate Length 130 mm
F Adjustable Stand-Off Range 100 - 150 mm
Gt Threaded Rod Diameter / Height 20 mm

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Materials
Base Plate Dimensions 130mm x 130mm square footprint
Stand-Off Ground Clearance Fully adjustable telescopic screw range from 100mm to 150mm
Material Composition Premium pre-galvanised mild steel body plate array
Corrosion Protection Grade Electro-galvanised zinc (EZ) plating finish (Optimized for Service Class 2 exposures; EN 15804 EPD certified)
Characteristic Capacities R1,k (Downward Vertical Compression) = 64.8 kN (C24 Timber columns)
Fastener Requirements (Timber) Requires 4 No. structural coach screws (e.g. SSH10x60mm to SSH10x75mm into timber end grain)
Fastener Requirements (Concrete) Requires 4 No. M10/M12 structural anchors (e.g. SET-XP or AT-HP dependent on spacing rules; Ø12mm anchor holes provided)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Dynamic Threaded Height Adjustment: Integrated structural screw mechanism permits variable leveling adjustments from 100mm up to 150mm on-site prior to final loading.
  • Reliable Compression Loading: Solid structural engineering provides a robust downward characteristic capacity profile of up to 64.8 kN.
  • Protected Stand-Off Architecture: Safely elevates timber columns clear of pooling slab moisture, creating a critical structural break that stops decay trajectories.
  • Certified Standards Alignment: Fully ETA and CE approved component array guaranteeing dependable, uniform performance specifications under load.
Purchase APB100/150 Post Bases & Fixing Kits
Data Sheet
Data Sheet
Declaration of Performance
Declaration of Performance
European Technical Assessment (ETA)
European Technical Assessment (ETA)
