Simpson Strong-Tie ABR98 98mm x 98mm

x 88mm Edge Reinforced Angle Bracket Pre-Galv

Simpson Strong-Tie

Product Code: 78ABR98

Model Code: ABR98

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


£4.45 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

42 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR98 Heavy Duty Reinforced Bracket (98mm x 98mm x 88mm)

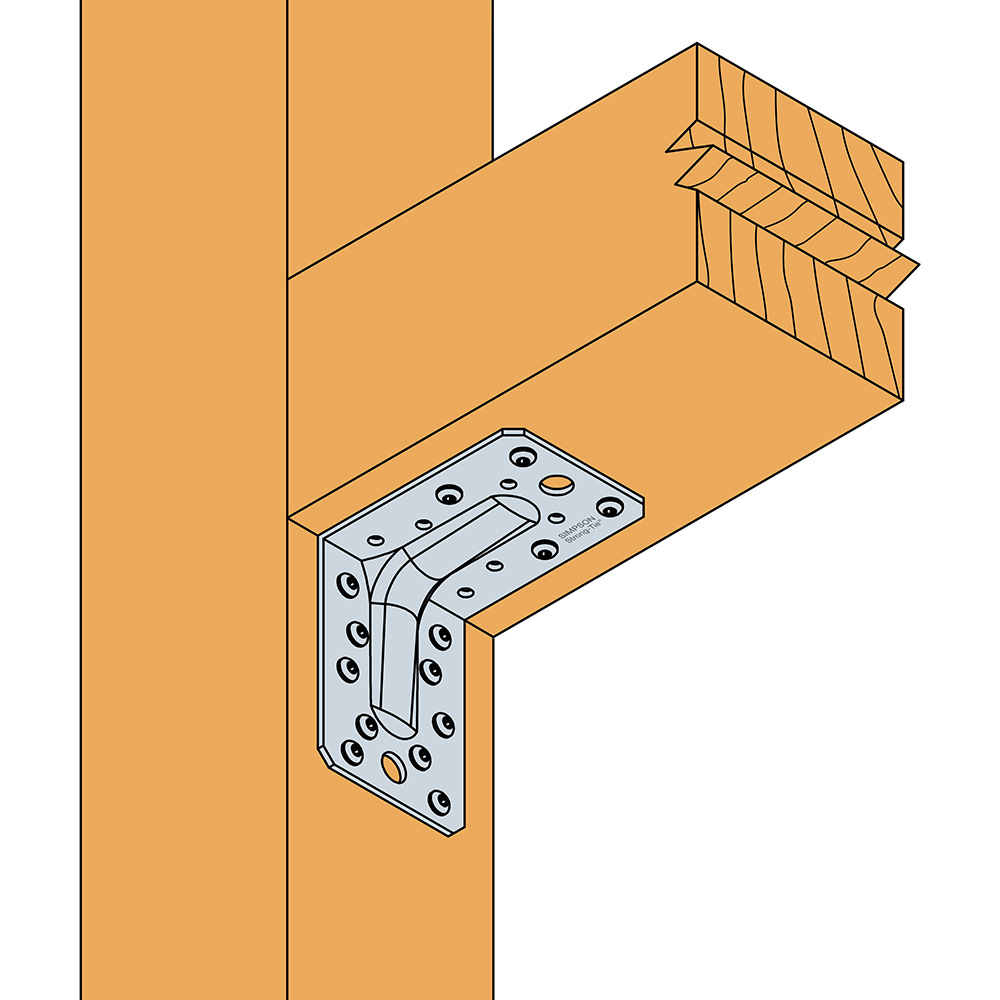

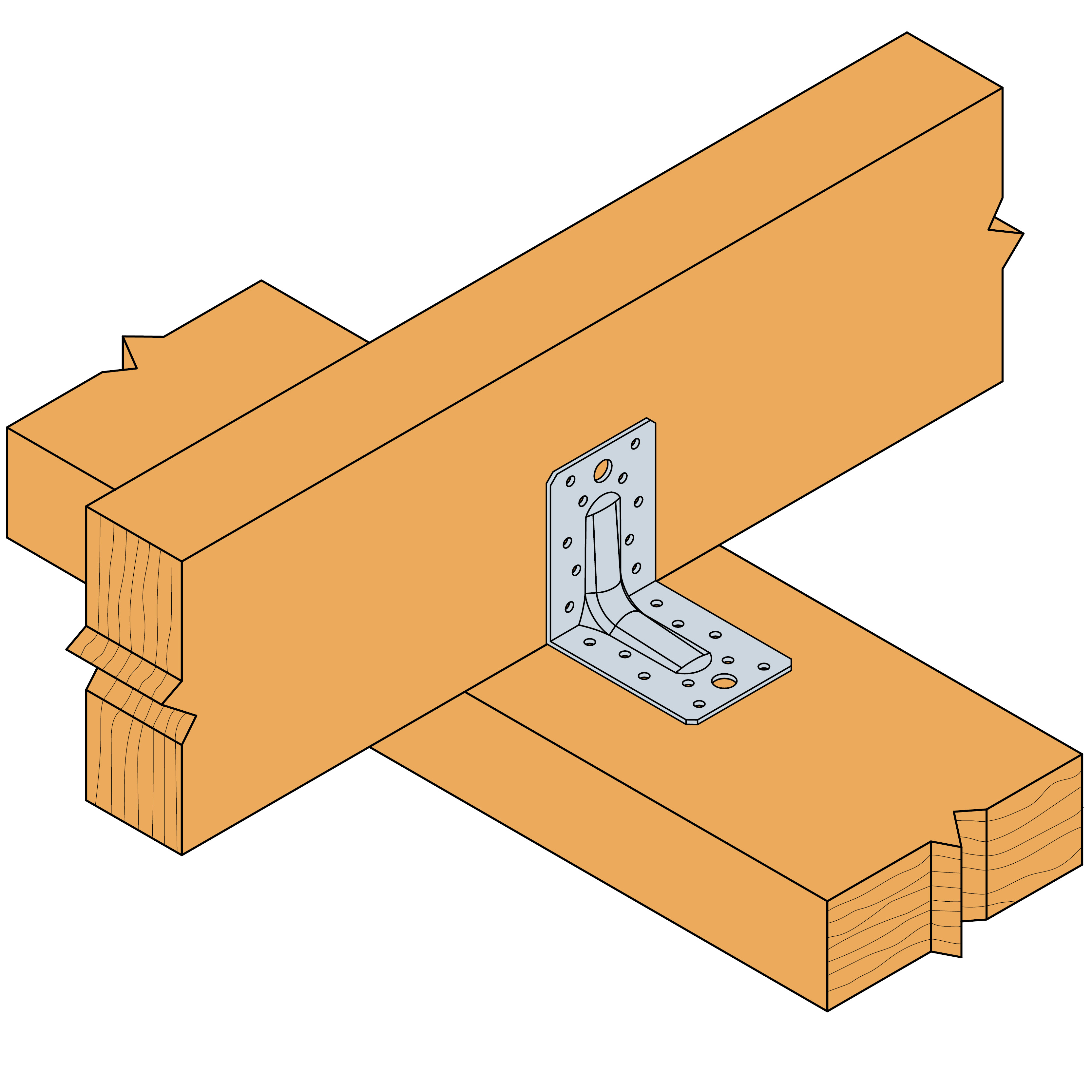

The Simpson Strong-Tie ABR98 is an industrial-grade, heavy-duty reinforced angle bracket engineered for demanding timber-to-timber, timber-to-concrete, and timber-to-steel structural connections. Manufactured from ultra-thick 3.0mm pre-galvanised steel with a central stamped reinforcement rib, the ABR98 provides exceptional flexural rigidity and high shear/tensile resistance across all loading planes. Its robust 98mm x 98mm x 88mm profile makes it ideal for securing heavy floor joists, purlins, wall plates, truss tie-downs, and cross-laminated timber (CLT) assemblies where maximum structural strength is required.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load capacities and satisfy UK building control regulations, the ABR98 should be installed using 3.75x30mm square twist nails, 4.0x35mm, or 4.0x50mm CNA ring-shank connector nails for timber-to-timber connections. For concrete and masonry anchoring, install M12 mechanical expansion anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

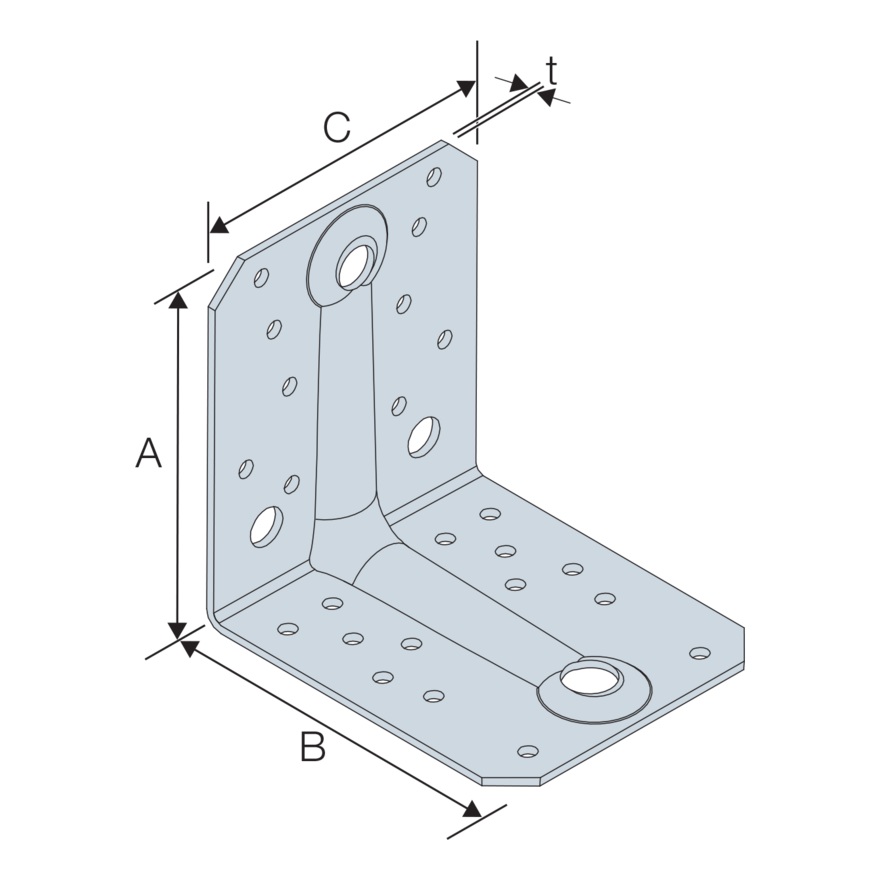

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie ABR98 heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR98 Value
A Vertical Leg Height 98 mm
B Base Leg Length 98 mm
C Bracket Width 88 mm
t Steel Plate Gauge Thickness 3.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 3.0mm S250GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 12 No. on Flange B (22 total)
Bolt Hole Pattern (Ø13mm) 3 No. Ø13mm bolt holes on Flange A & 3 No. Ø13mm bolt holes on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Heavy-Duty 3.0mm Steel Plate: Premium 3.0mm gauge steel combined with a central stiffening rib offers exceptional resistance against deformation under high structural loads.
  • Wide 88mm Footprint: Generous 98mm x 98mm x 88mm dimensions provide expansive contact area for heavy timber framing, wall plates, and truss connections.
  • Versatile Fastener Layout: Features a high density of 5mm nail holes along with 6 No. 13mm anchor bolt holes for timber-to-timber and timber-to-concrete applications.
  • Fully Code Compliant: ETA approved and UKCA/CE marked to ensure complete structural verification across residential, commercial, and industrial engineering builds.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
Data Sheet
Data Sheet
