Simpson Strong-Tie ABR9020S 90mm x 90mm

x 65mm Reinforced Angle Bracket Stainless

Simpson Strong-Tie

Product Code: 78ABR9020S

Model Code: ABR9020S

Brand: Simpson Strong-Tie


£5.26 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

262 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / STAINLESS STEEL REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR9020S Stainless Steel Reinforced Bracket (90mm x 90mm x 65mm)

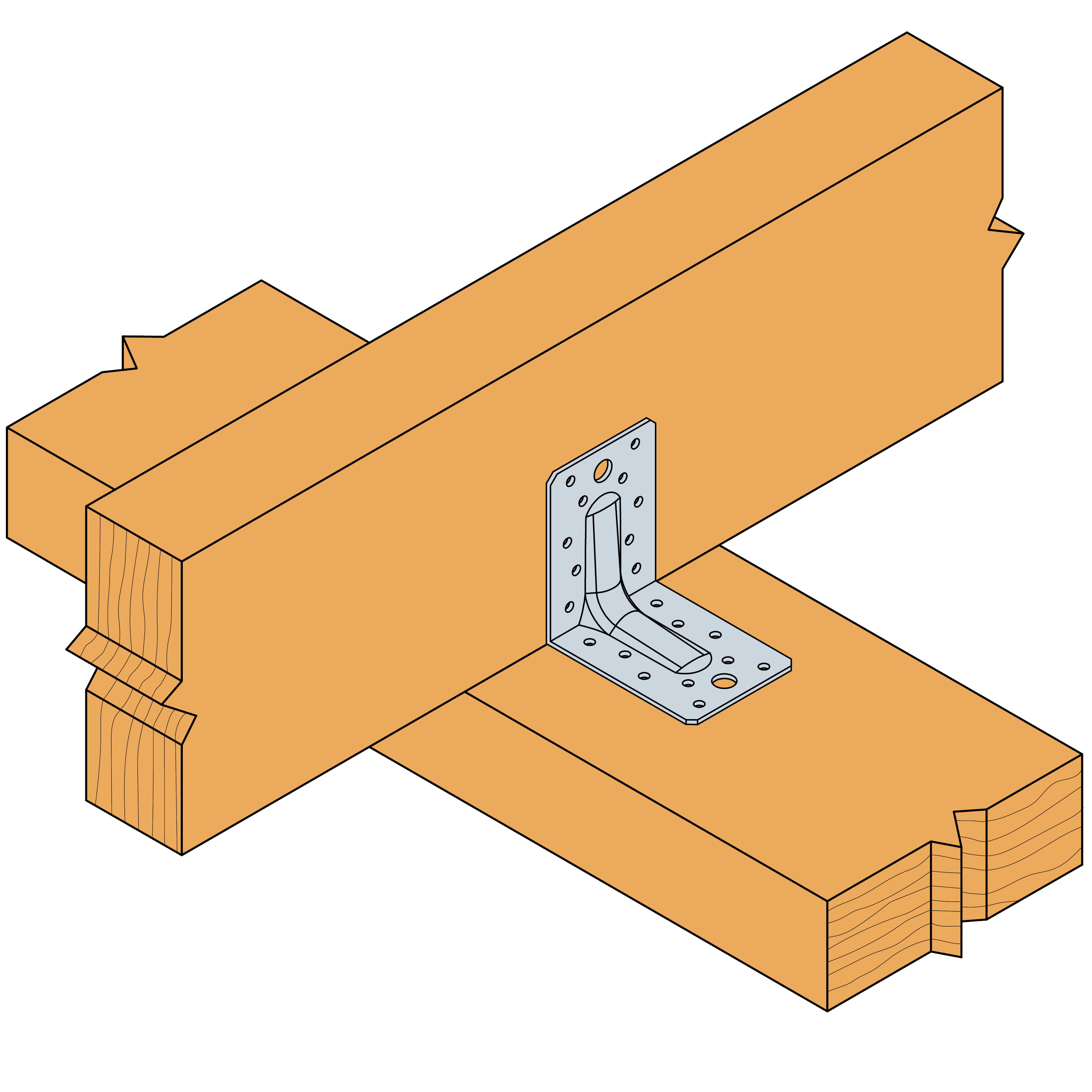

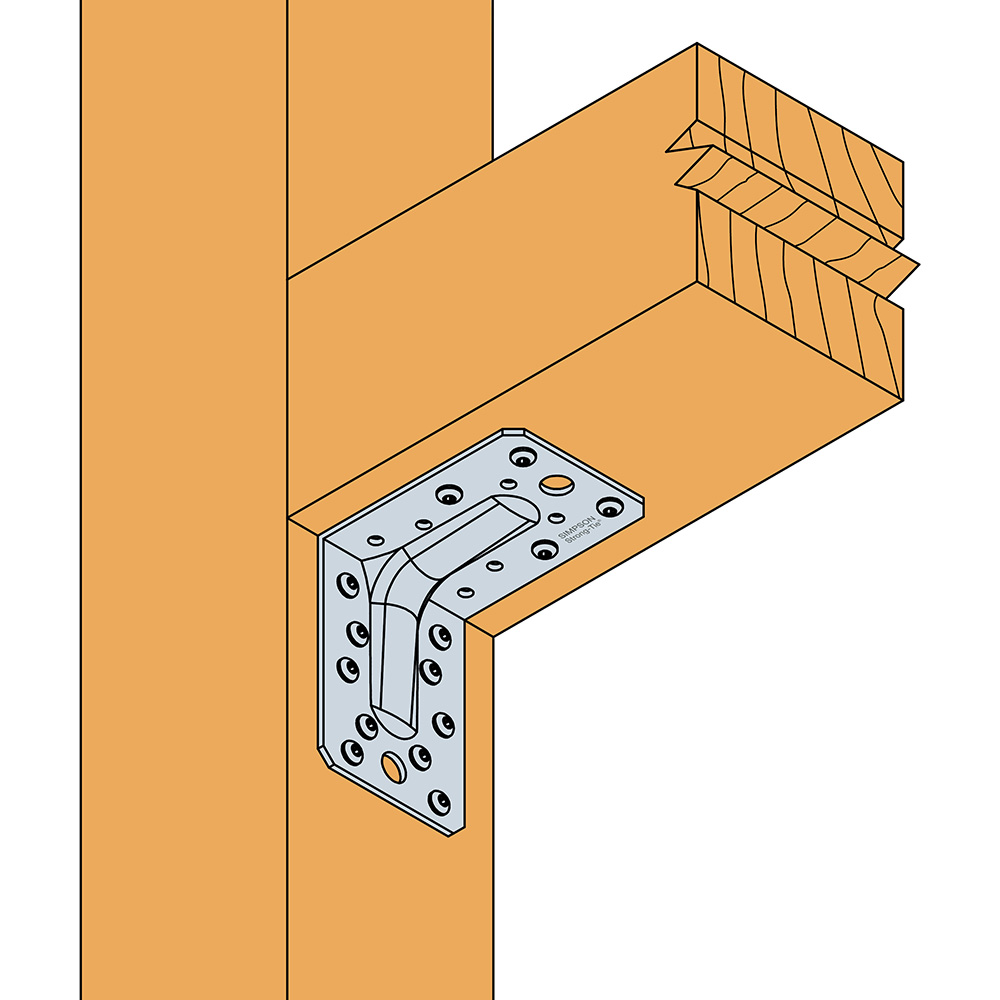

The Simpson Strong-Tie ABR9020S is an industrial-grade, heavy-duty stainless steel reinforced angle bracket engineered for critical structural connections in severe exposure environments. Designed for timber-to-timber, timber-to-concrete, and cross-laminated timber (CLT) assemblies, the ABR9020S features a stamped central reinforcement rib for superior resistance against bending, shear, and uplift forces across all load directions. Manufactured from 2.0mm thick high-grade stainless steel (1.4401 / 1.4404 / A4 / Class III corrosion resistance), it provides long-lasting structural performance in Service Class 3 external or chemically aggressive environments.

RECOMMENDED INSTALLATION FASTENERS

To avoid galvanic corrosion and satisfy UK building control standards, the ABR9020S must be installed using stainless steel fasteners. For timber connections, use 4.0x30mm or 4.0x50mm stainless steel CNA connector nails or CSA connector screws. For concrete and masonry fixings, utilize M10 or M12 stainless steel mechanical anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE STAINLESS STEEL FASTENERS FOR YOUR INSTALLATION

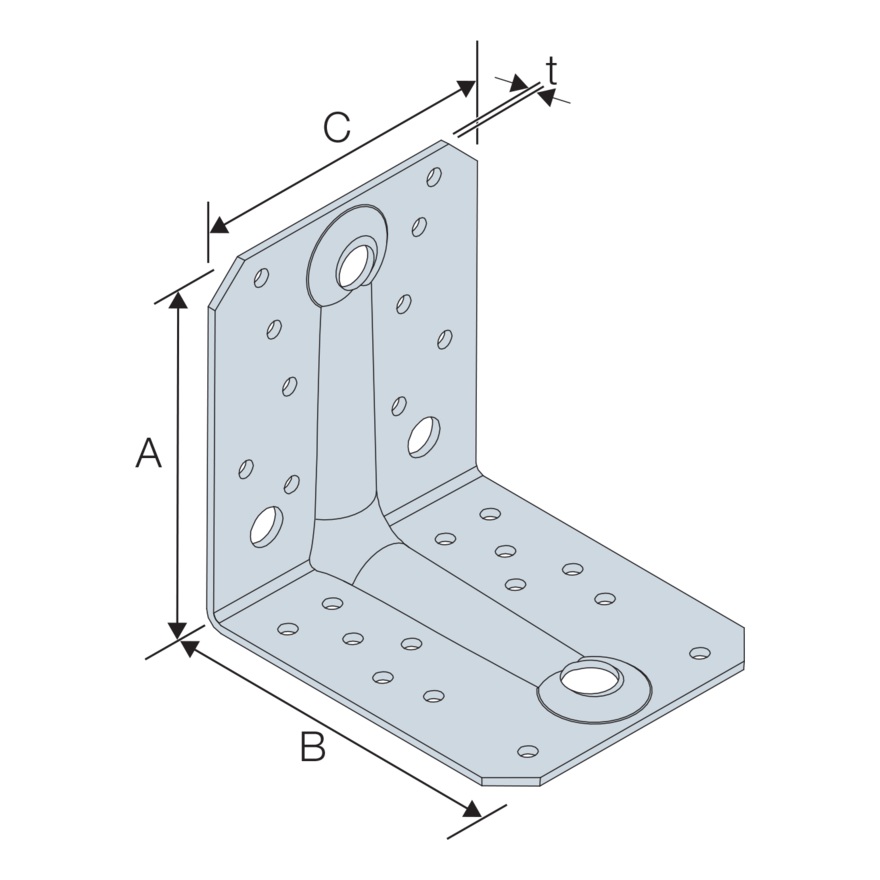

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie ABR9020S stainless steel reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR9020S Value
A Vertical Leg Height 90 mm
B Base Leg Length 90 mm
C Bracket Width 65 mm
t Steel Plate Gauge Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.0mm Austenitic Stainless Steel (1.4401 / 1.4404 / A4 grade)
Corrosion Protection Grade Class III High Corrosion Resistance (Service Class 1, 2 and 3 external applications)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 10 No. on Flange B (20 total)
Bolt Hole Pattern 1 No. Ø11mm bolt hole on Flange A & 1 No. Ø13mm bolt hole on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • High-Grade Stainless Steel: Manufactured from A4 (1.4401/1.4404) stainless steel to provide maximum resistance against coastal salt spray and severe atmospheric conditions.
  • Stiffened Central Rib: Stamped reinforcement rib delivers superior flexural rigidity and high load capacity in all directions.
  • Versatile Fixing Options: Multi-hole configuration accommodates connector nails, screws, and heavy anchor bolts for diverse timber-to-timber and timber-to-concrete applications.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to maintain strict structural compliance across residential and commercial timber engineering projects.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
