Simpson Strong-Tie ABR9020 88mm x 88mm

x 65mm Reinforced Angle Bracket Pre-Galv

Simpson Strong-Tie

Product Code: 78ABR9020

Model Code: ABR9020

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


£2.99 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

8 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR9020 Heavy Duty Reinforced Bracket (90mm x 90mm x 65mm)

The Simpson Strong-Tie ABR9020 (ABR90) is an industry-standard, heavy-duty reinforced angle bracket engineered for high-capacity structural connections in timber framing, timber-to-concrete, and timber-to-steel applications. Featuring a stamped central stiffening rib, the ABR9020 provides exceptional flexural rigidity and shear load performance across all principal loading directions. Manufactured from 2.0mm thick pre-galvanised mild steel, this versatile bracket is widely used for securing purlins, joists, wall plates, truss tie-downs, and heavy timber frame assemblies.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load capacities and satisfy UK building control regulations, the ABR9020 should be installed using 3.75x30mm square twist nails or CNA connector nails for timber-to-timber connections. For concrete and masonry anchoring, utilize M10 or M12 mechanical expansion anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION


TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

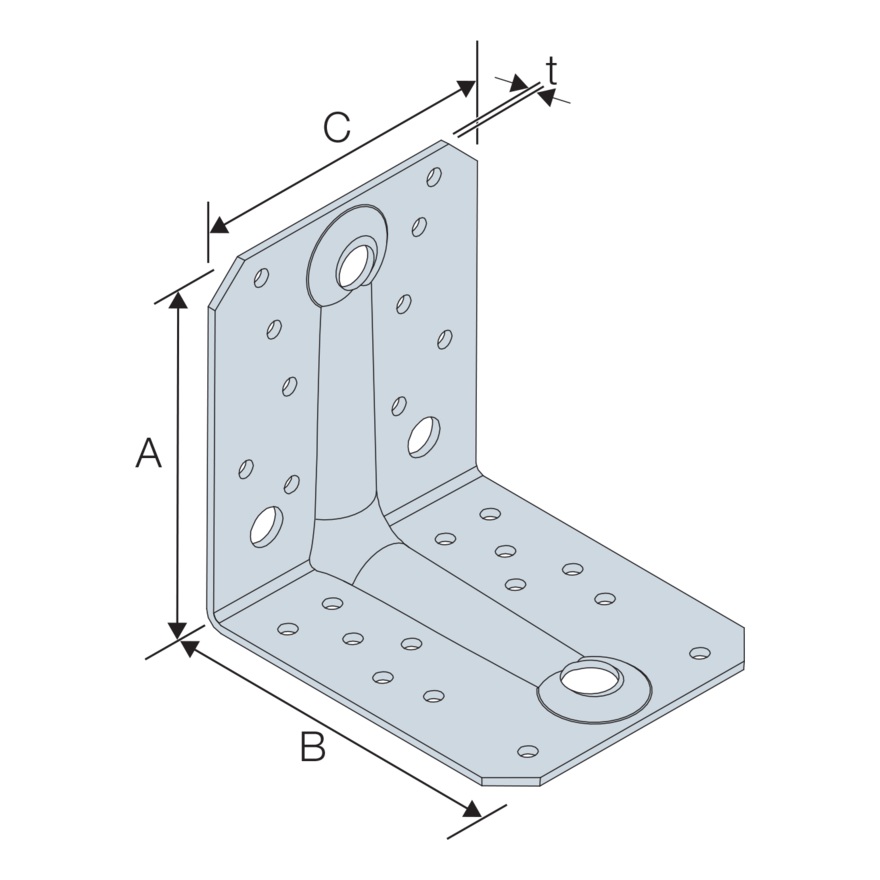

Simpson Strong-Tie ABR9020 heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR9020 Value
A Vertical Leg Height 90 mm
B Base Leg Length 90 mm
C Bracket Width 65 mm
t Steel Plate Gauge Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.0mm S250GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 10 No. on Flange B (20 total)
Bolt Hole Pattern 1 No. Ø11mm bolt hole on Flange A & 1 No. Ø13mm bolt hole on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Stiffened Central Rib: Stamped reinforcement rib delivers superior flexural rigidity and high load capacity in all directions.
  • Proven 90mm Footprint: Versatile 90mm x 90mm x 65mm sizing ideal for heavy timber framing, truss anchoring, and wall plate fixings.
  • Multi-Fastener Compatibility: Pre-drilled pattern accommodates 5mm connector nails/screws as well as 10mm and 12mm mechanical or chemical anchor bolts.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to maintain strict structural compliance across residential and commercial construction.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
