Simpson Strong-Tie ABR70 70mm x 70mm

x 55mm Reinforced Angle Bracket Pre-Galv

Simpson Strong-Tie

Product Code: 78ABR70

Model Code: ABR70

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £1.02 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

151 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 49 1.0920 £1.09
50+ 1.0200 £1.02
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR70 Reinforced Angle Bracket (70mm x 70mm x 55mm)

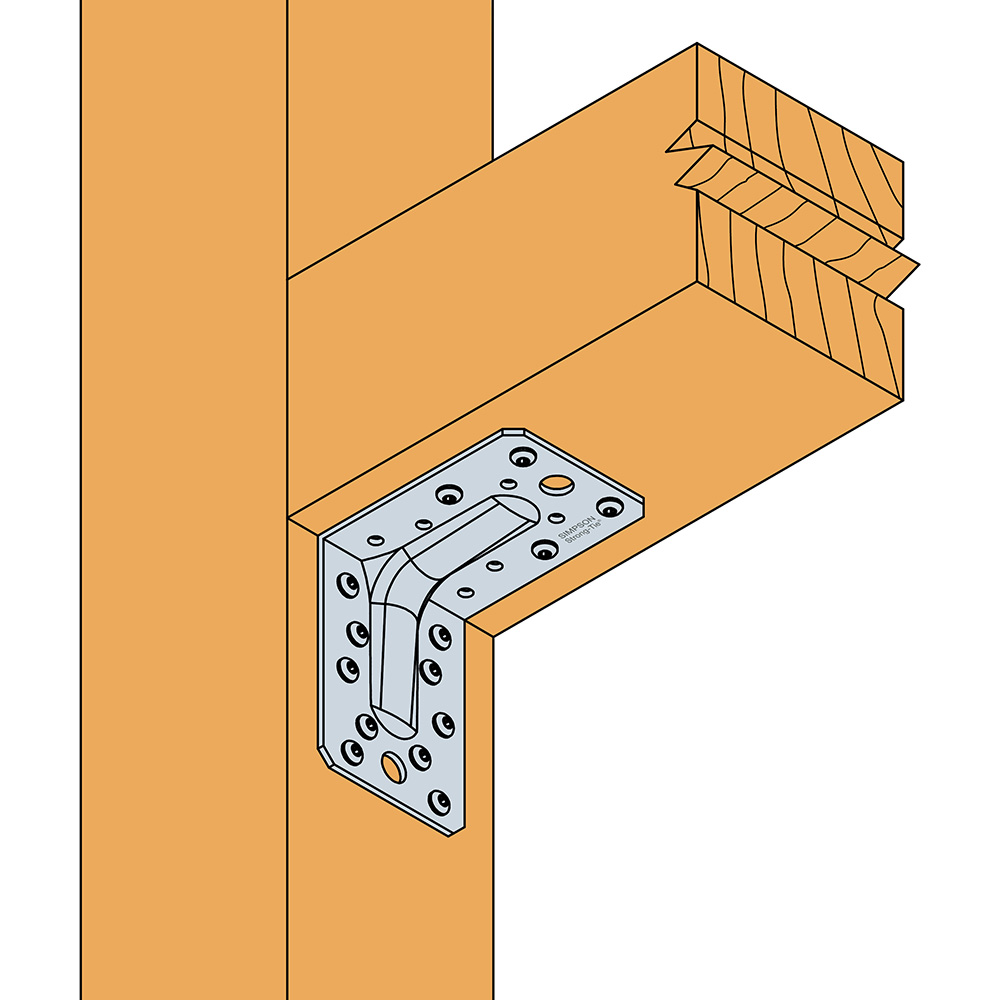

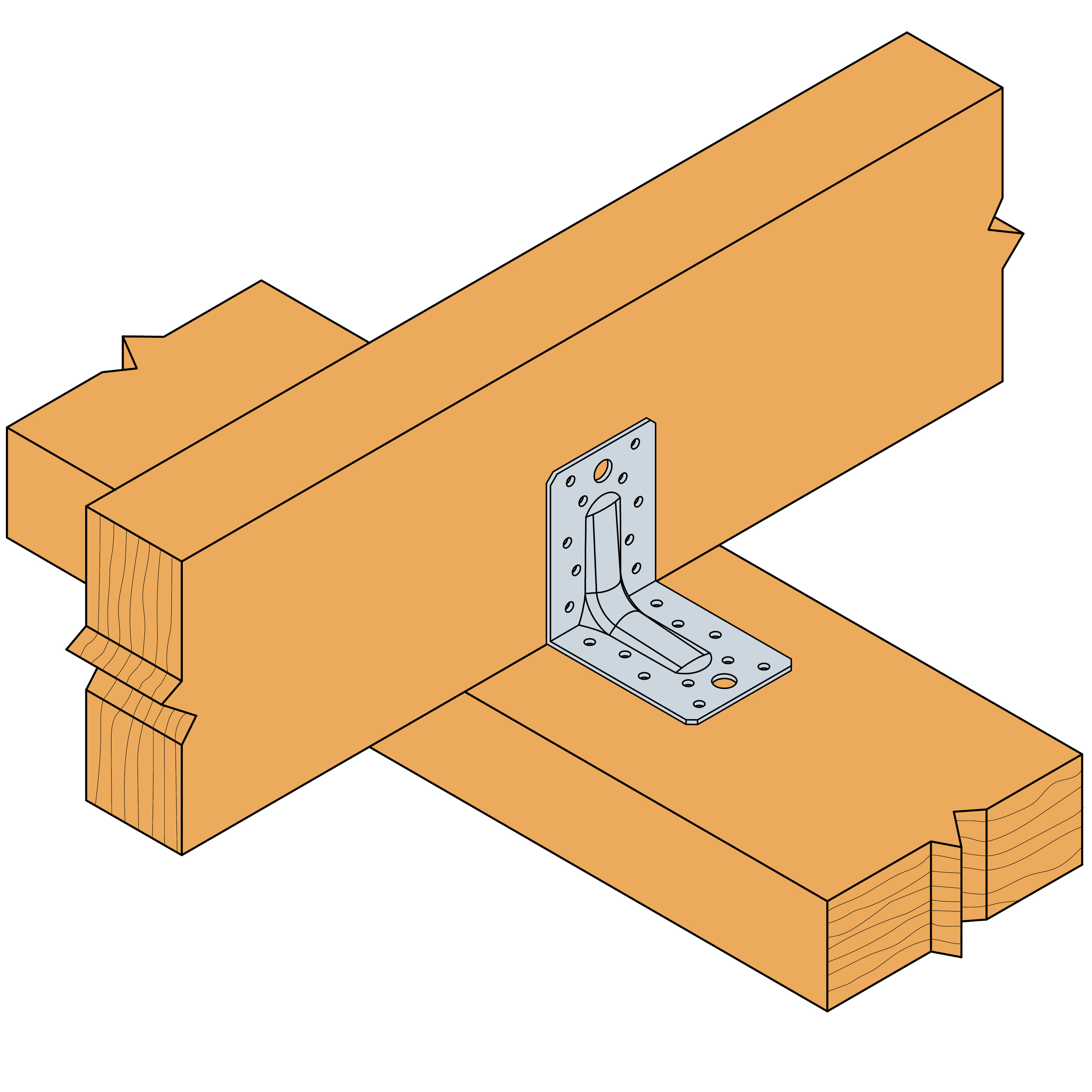

The Simpson Strong-Tie ABR70 is an industrial-grade, heavy-duty reinforced angle bracket engineered for high-load timber-to-timber and timber-to-concrete structural connections. Featuring a prominent stamped central stiffening rib, the ABR70 offers exceptional flexural rigidity and shear strength across compact framing layouts. Manufactured from 2.0mm thick pre-galvanised steel, this multi-purpose connector is ideal for securing joists, purlins, wall plates, and truss connections where space is restricted but high load capacities are required.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load values and satisfy UK building control standards, the ABR70 should be installed using 3.75x30mm square twist nails or CNA connector nails for timber-to-timber applications. For masonry or concrete fixings, utilize M8 or M10 mechanical expansion anchors or chemical studs through the pre-punched bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION


TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

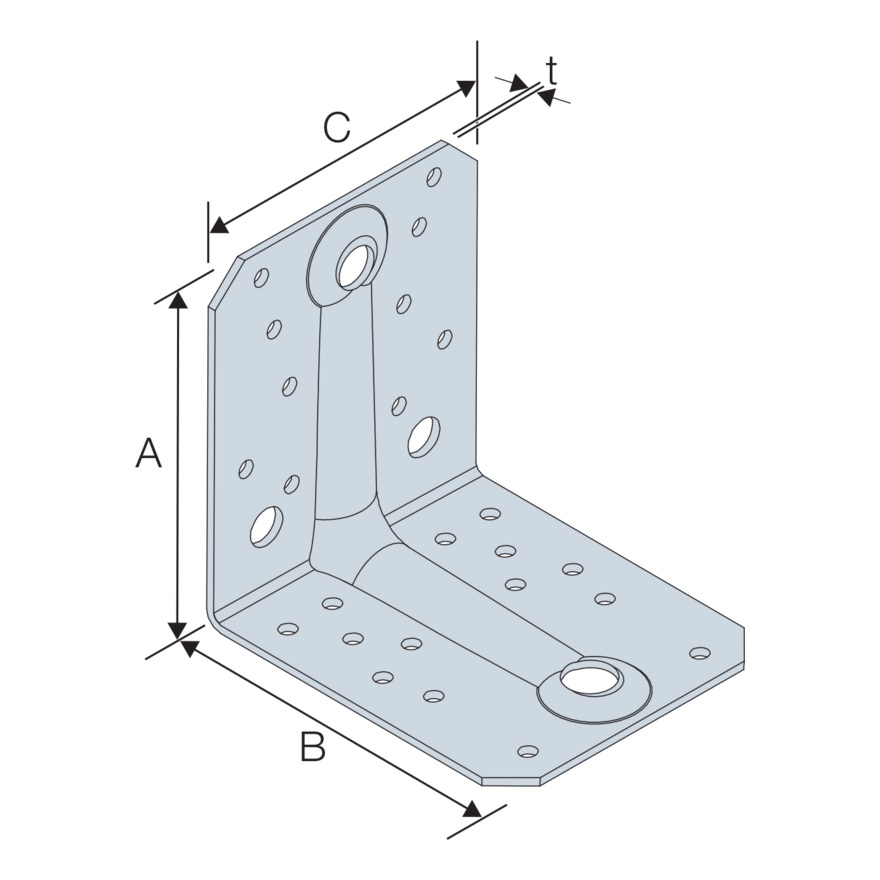

Simpson Strong-Tie ABR70 reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR70 Value
A Vertical Leg Height 70 mm
B Base Leg Length 70 mm
C Bracket Width 55 mm
t Steel Plate Gauge Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.0mm S250GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 6 No. pre-drilled nail holes per leg (12 total)
Bolt Hole Pattern (Ø8.5mm / Ø11mm) Pre-drilled anchor bolt hole locations for structural fixings
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Stiffened Central Rib: Stamped reinforcement rib delivers superior rigidity and reduces deflection under heavy structural loads.
  • Compact Multi-Purpose Footprint: Ideal 70mm x 70mm x 55mm sizing fits easily into tight framing joints, purlin ties, and wall plate connections.
  • Versatile Fixing Layout: Features a combination of standard 5mm nail holes and larger anchor bolt holes for timber-to-timber, timber-to-steel, or timber-to-concrete attachments.
  • Fully Building Code Certified: ETA approved and CE/UKCA marked to ensure complete compliance across commercial and residential construction projects.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
Declaration of performance
Declaration of performance
ABR70 Data Sheet
ABR70 Data Sheet
