Simpson Strong-Tie ABR255 120 x 100 x 255mm

Reinforced Angle Bracket for CLT Pre-Galv

Simpson Strong-Tie

Product Code: 78ABR255

Model Code: ABR255

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £4.85 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

62 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 9 5.9280 £5.93
10+ 4.8480 £4.85
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




TIMBER CONNECTORS / CLT REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR255 Reinforced Angle Bracket for CLT

The Simpson Strong-Tie ABR255 is an engineered, heavy-duty structural angle bracket purpose-designed for high-load connections in cross-laminated timber (CLT), glulam, and heavy timber frame construction. Manufactured from extra-thick 3.0mm pre-galvanised structural steel (Z275 coating), this 255mm x 100mm x 90mm connector incorporates prominent pressed stiffening ribs to deliver exceptional resistance against horizontal shear, overturning moments, and vertical uplift forces. Ideal for securing CLT wall panels to floor slabs, inter-storey wall ties, post-to-beam junctions, and timber-to-concrete foundation bases, the ABR255 provides unyielding structural stability across modern mass timber framing applications.

EXCLUSIVE TRADE PROCUREMENT & PROJECT DISCOUNT SUPPORT

As part of our commitment to supplying the comprehensive Simpson Strong-Tie mass timber range with outstanding availability, we provide bespoke commercial support for mid-rise timber contractors, CLT erectors, and commercial developments. If you have a site requirement for high volumes or need to challenge structural connector rates on a case-by-case basis, please contact our technical sales desk directly to discuss competitive volume-based trade discounts negotiated in direct partnership with the manufacturer.

CRITICAL STRUCTURAL APPLICATION & SPECIFICATION MANDATE

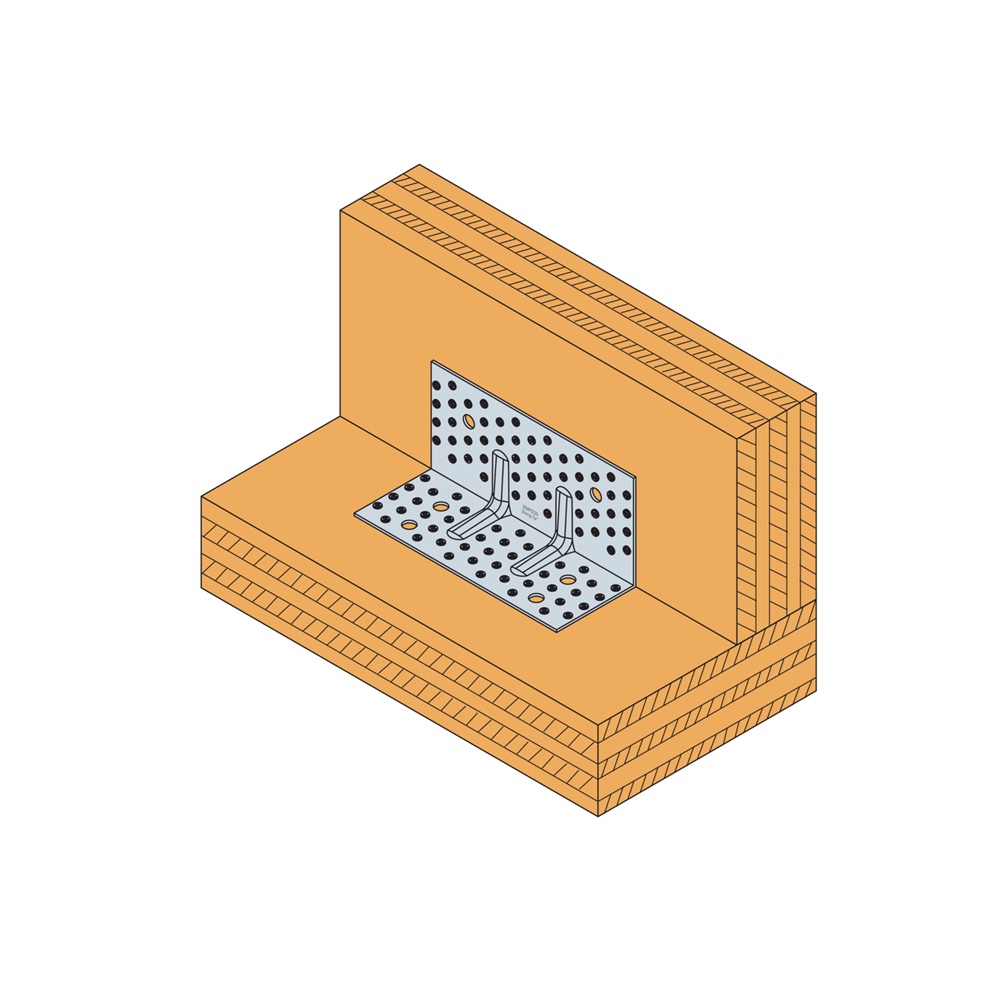

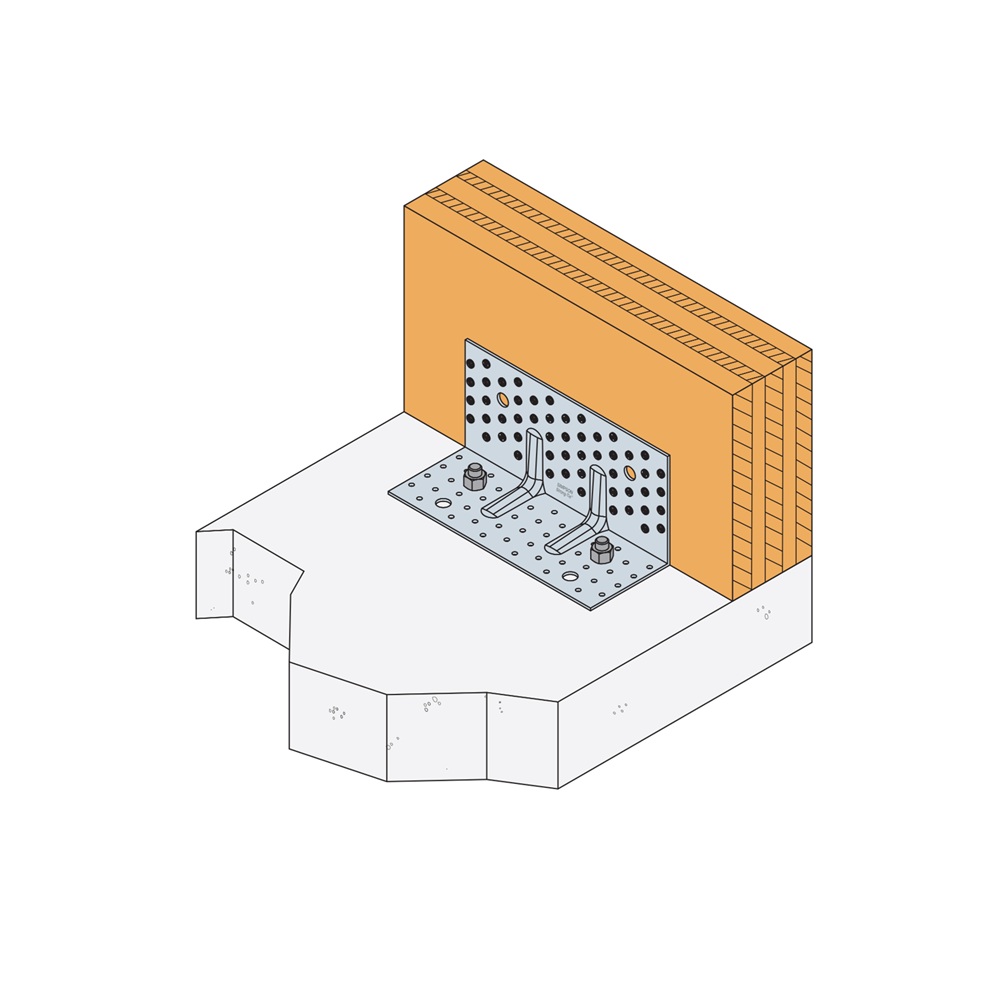

The ABR255 bracket is fully certified under European Technical Assessment (ETA-06/0106) regulations for structural deployment parameters in timber-to-timber and timber-to-concrete applications. Featuring an optimized hole pattern comprising Ø5mm nail/screw holes alongside Ø12mm bolt holes, it permits flexible full or partial fixings. Fasten to timber substrates using Simpson Strong-Tie CNA 4.0mm annular ring-shank nails or CSA 5.0mm connector screws; anchor to concrete foundation bases or concrete floor slabs using M10/M12 mechanical wedge anchors or AT-HP / POLY-GP chemical resin injection systems with threaded studs.

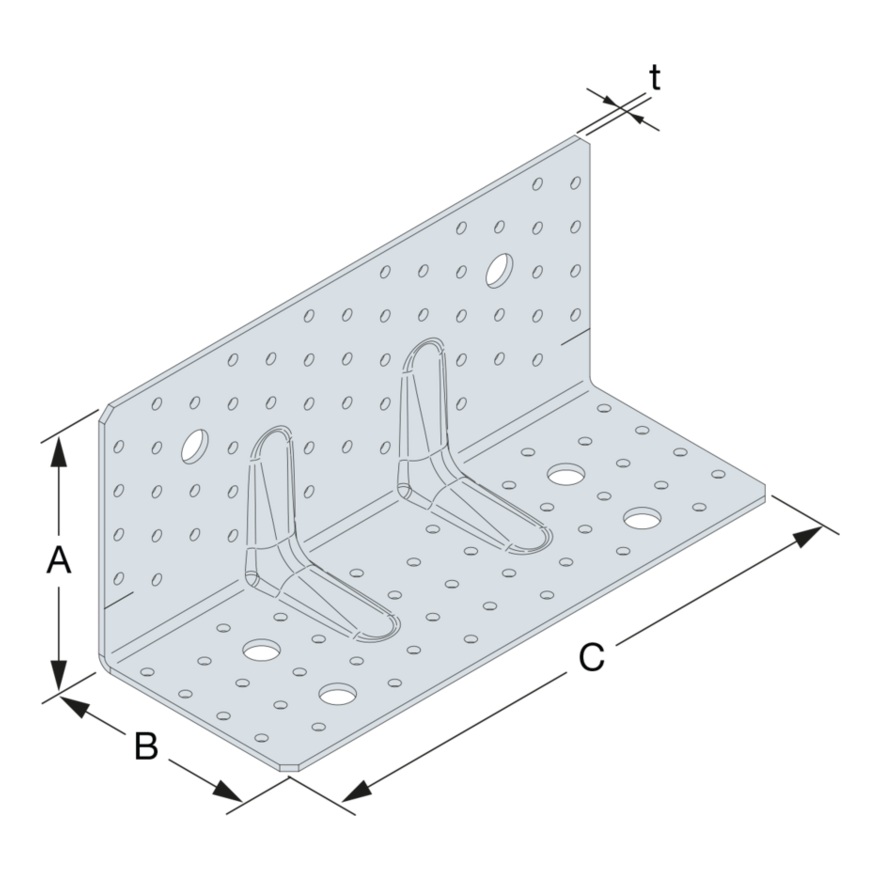

BRACKET GEOMETRY IDENTIFICATION

Heavy 3.0mm Steel 255mm CLT Profile with Pressed Stiffening Ribs

Simpson Strong-Tie ABR255 Reinforced Angle Bracket for CLT dimensional engineering drawing

TECHNICAL SPECIFICATION DATA

Key Geometric & Fastener Values

Parameter Description ABR255 Value
Height (A) Vertical Flange Height 255 mm
Length (B) Horizontal Base Flange Projection 100 mm
Width (C) Overall Bracket Width 90 mm
Thickness (t) Gauge Plate Thickness 3.0 mm
Box Qty Standard Trade Box Packaging 25 Brackets

ANGLE OF SPECIFICATION & PERFORMANCE INDEX

Performance Index Validated Structural Ratings & Compliance Data
Regulatory Approvals CE Marked and European Technical Assessment (ETA-06/0106) approved
Material Grade S250GD structural steel with Z275 electrogalvanised zinc protective layer
Hole Configuration Flange A: 32 x Ø5mm, 4 x Ø12mm | Flange B: 10 x Ø5mm, 3 x Ø12mm
Substrate Compatibility Cross-laminated timber (CLT), glulam, C24+ solid timber, and concrete

KEY TECHNICAL PERFORMANCE ADVANTAGES

  • 3.0mm Structural Steel Construction: Built specifically for heavy mass timber engineering, resisting extreme lateral shear and uplift forces.
  • High Vertical Flange Design: 255mm height optimizes fastener distribution across multiple CLT timber laminations for maximum load transfer.
  • Z275 Galvanised Finish: Provides durable corrosion protection for internal timber structures and Service Class 1 & 2 environments.
  • Bespoke Trade Account Rates: Direct commercial flexibility available via our engineering sales office, tailoring bulk connector pricing to specific contract budgets.
Purchase Simpson Strong-Tie ABR255 Brackets
