Simpson Strong-Tie ABR10525S 105 x 105 x 90

Reinforced Angle Bracket Stainless Steel

Simpson Strong-Tie

Product Code: 78ABR10525S

Model Code: ABR10525S

Brand: Simpson Strong-Tie


From £7.86 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

83 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 19 8.7240 £8.72
20+ 7.8600 £7.86
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / STAINLESS STEEL REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR10525S Stainless Steel Reinforced Bracket (105mm x 105mm x 90mm)

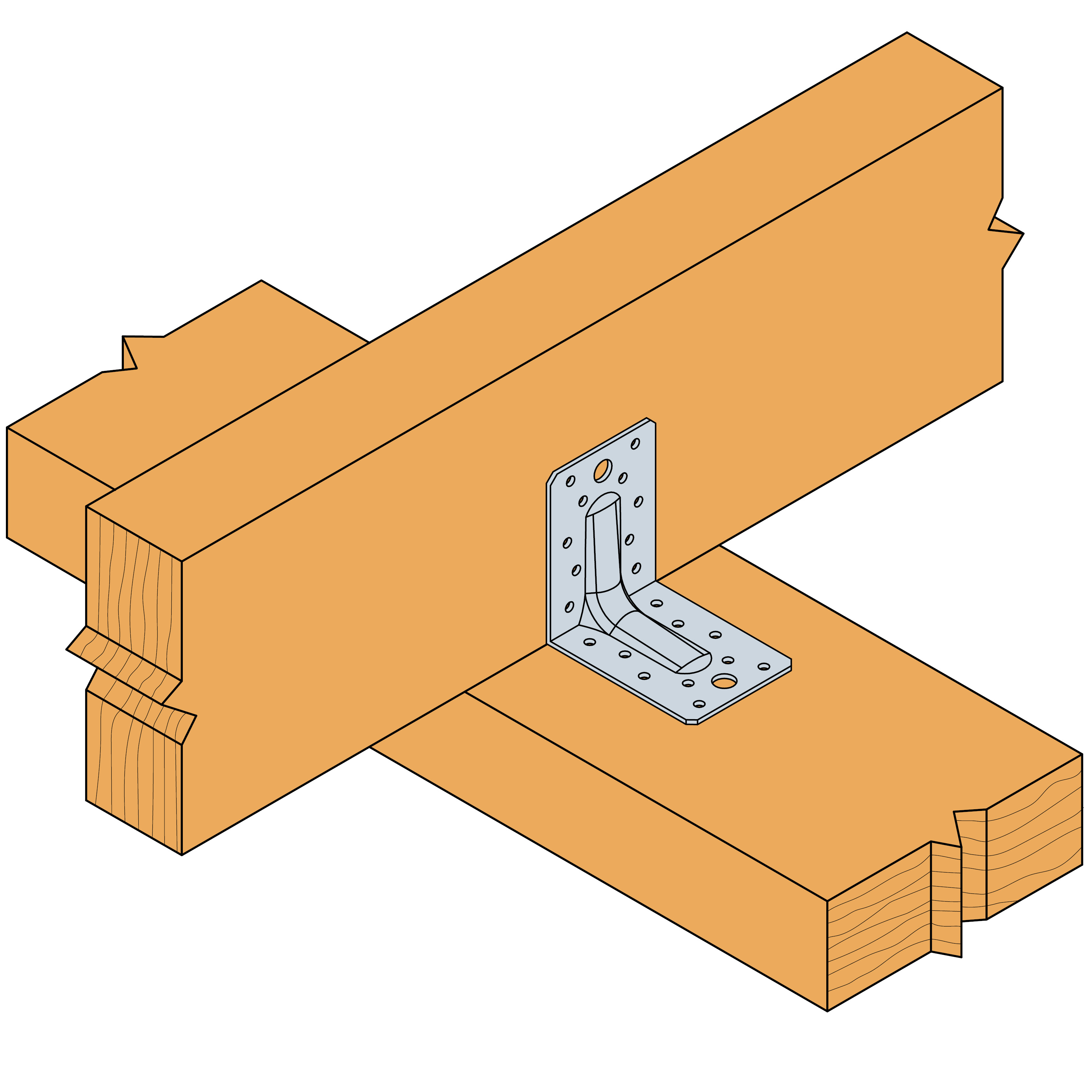

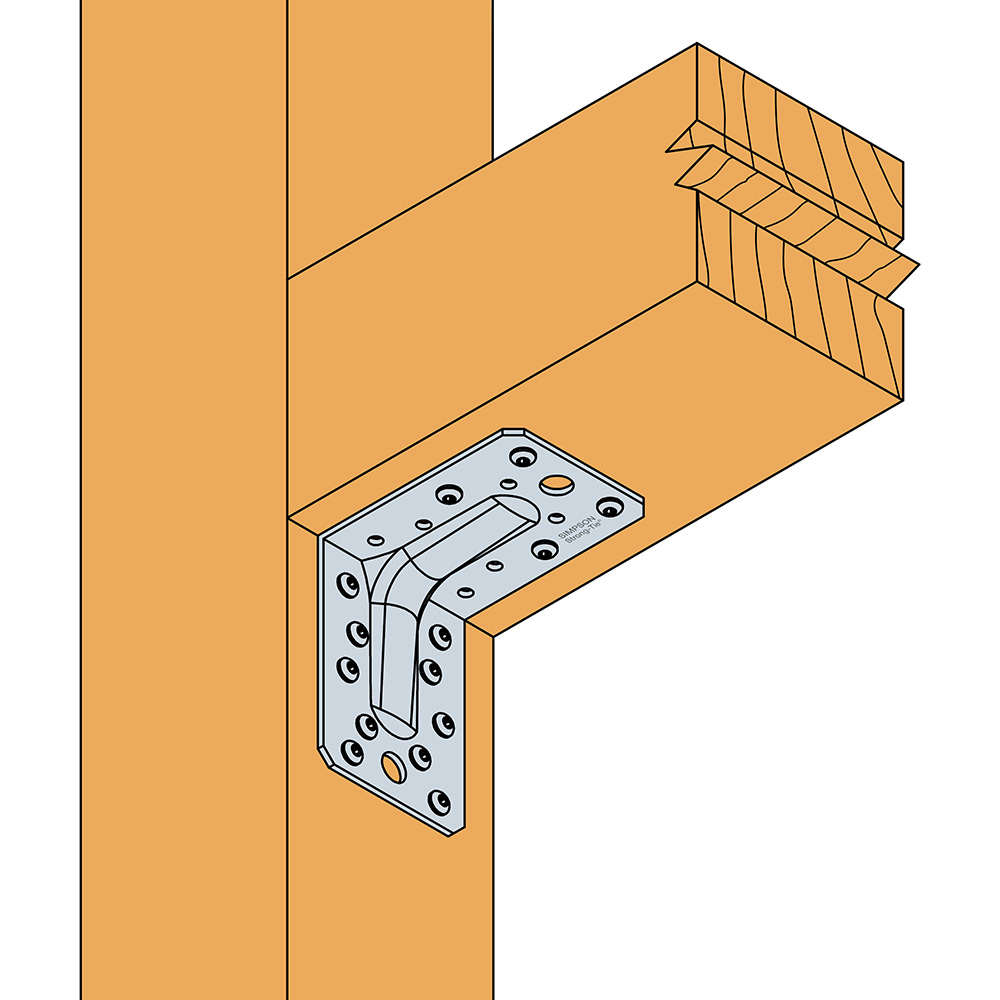

The Simpson Strong-Tie ABR10525S (ABR105/2.5S) is an extra heavy-duty, industrial-grade stainless steel reinforced angle bracket engineered for high-capacity structural timber-to-timber, timber-to-concrete, and cross-laminated timber (CLT) framing in aggressive environments. Manufactured from 2.5mm thick high-grade austenitic stainless steel (1.4401 / 1.4404 / A4 grade / Service Class 3), it features a stamped central reinforcement rib for superior resistance against bending, shear, and uplift forces across all loading directions. Its expansive 105mm x 105mm x 90mm footprint makes it the primary specification choice for heavy timber frame headers, wall plates, column bases, and purlin ties in coastal, agricultural, or severe exposure conditions.

RECOMMENDED INSTALLATION FASTENERS

To avoid bi-metallic corrosion and satisfy UK building control standards, the ABR10525S must be installed using stainless steel fasteners. For timber connections, use 4.0x35mm, 4.0x50mm, or 4.0x60mm CNA-S stainless steel connector nails or CSA-S connector screws. For concrete or masonry anchoring, utilize M10, M12, or M14 stainless steel mechanical expansion anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE STAINLESS STEEL FASTENERS FOR YOUR INSTALLATION

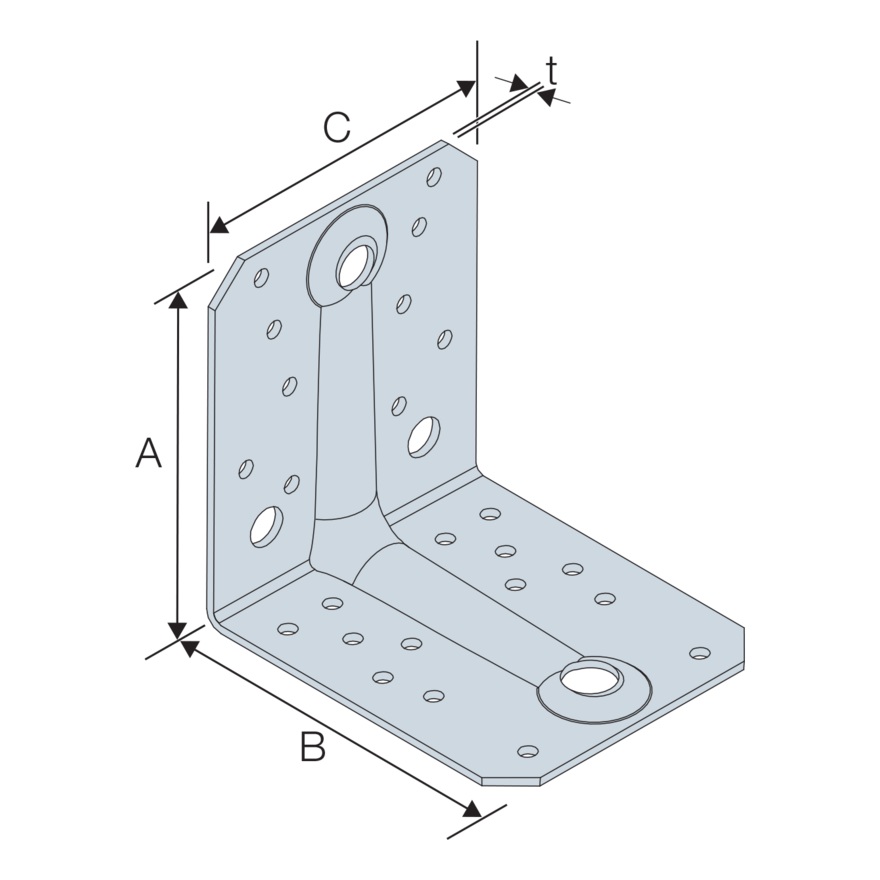

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie ABR10525S stainless steel heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR10525S Value
A Vertical Leg Height 105 mm
B Base Leg Length 105 mm
C Bracket Width 90 mm
t Steel Plate Gauge Thickness 2.5 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.5mm Austenitic Stainless Steel (1.4401 / 1.4404 / A4 grade)
Corrosion Protection Grade Class III High Corrosion Resistance (Service Class 1, 2 and 3 external applications)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 14 No. on Flange B (24 total)
Bolt Hole Pattern 2 No. Ø11mm & 1 No. Ø14mm on Flange A; 1 No. Ø14mm on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • High-Grade A4 Stainless Steel: Premium 1.4401/1.4404 grade stainless steel delivers ultimate corrosion resistance for Service Class 3 external and coastal environments.
  • Heavy-Duty 2.5mm Gauge: Extra-thick structural steel plate combined with a stamped central stiffening rib offers exceptional flexural rigidity and high shear/tensile capacity.
  • Wide 90mm Bearing Surface: 105mm x 105mm x 90mm footprint provides extended contact area for heavy timber framing, purlin joints, and cross-laminated timber (CLT) panels.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to maintain strict structural compliance across residential, commercial, and industrial engineering applications.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
