Simpson Strong-Tie ABR10525 105mm x 105mm

x 90mm Reinforced Angle Bracket Pre Galv

Simpson Strong-Tie

Product Code: 78ABR10525

Model Code: ABR10525

Brand: Simpson Strong-Tie

Finish: Pre Galvanised


From £3.10 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

49 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 49 3.3480 £3.35
50+ 3.0960 £3.10
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR10525 Heavy Duty Reinforced Bracket (105mm x 105mm x 90mm)

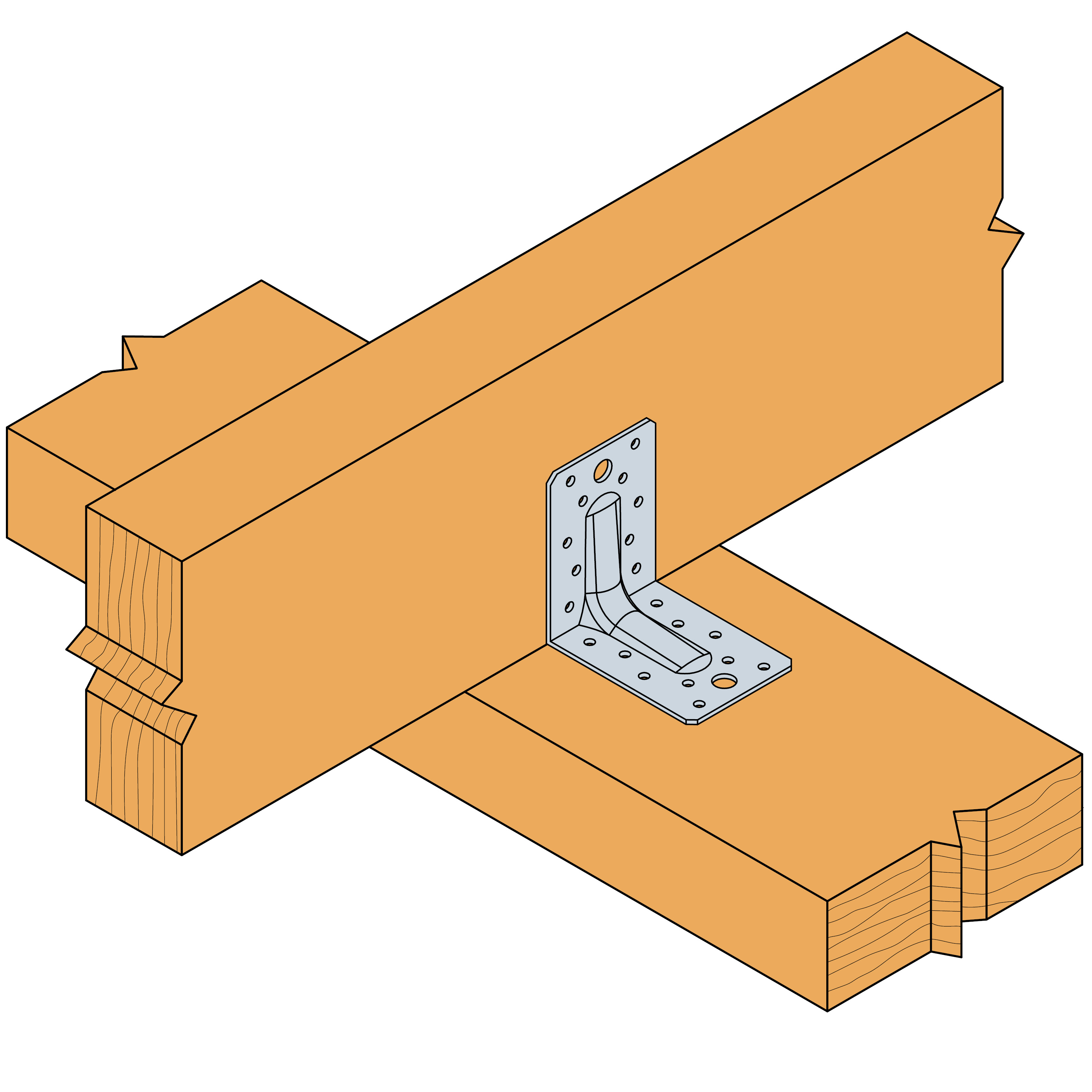

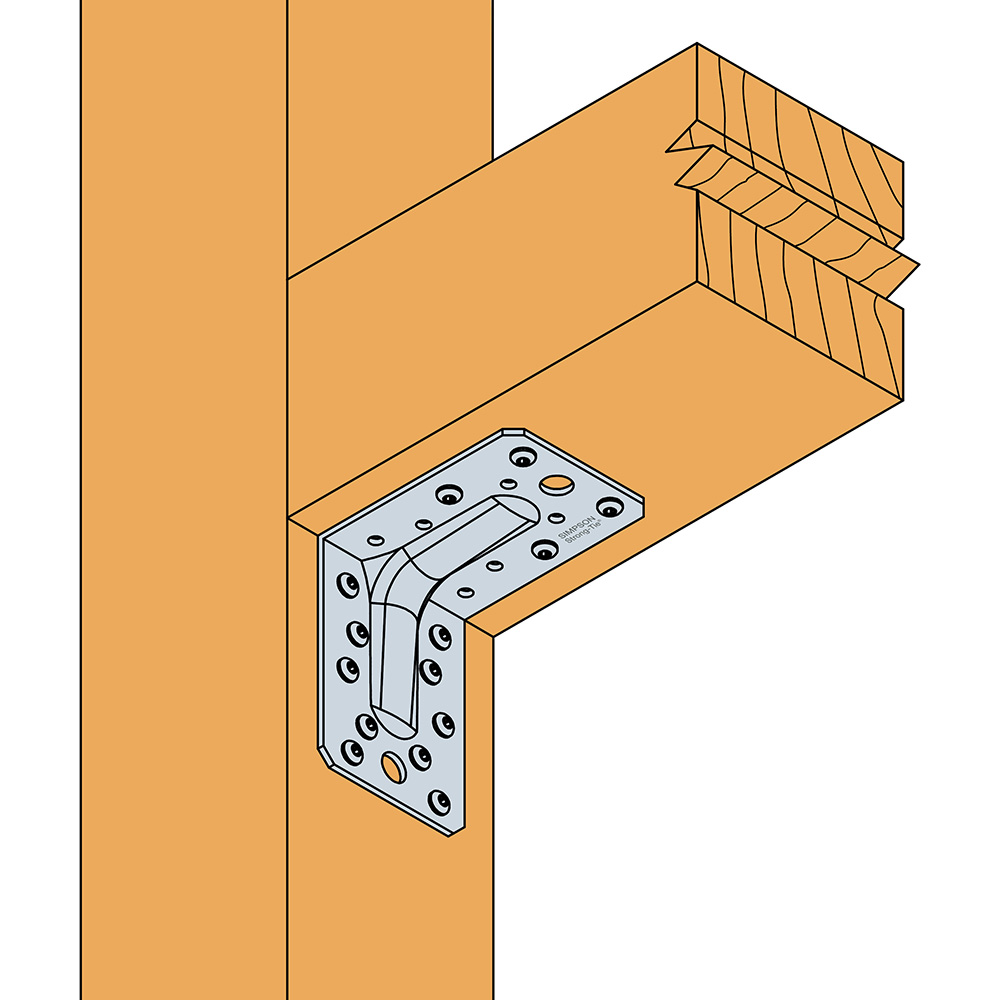

The Simpson Strong-Tie ABR10525 (ABR105/2.5) is an extra heavy-duty, industrial-grade reinforced angle bracket engineered for demanding structural timber-to-timber, timber-to-concrete, and cross-laminated timber (CLT) framing applications. Pressed from extra-thick 2.5mm pre-galvanised mild steel with a central stamped stiffening rib, the ABR10525 delivers outstanding resistance against bending moments, shear loads, and uplift forces across all loading axes. Its substantial 105mm x 105mm x 90mm profile provides a wide bearing surface, making it the primary specification choice for heavy timber frame headers, wall plates, column base joints, purlins, and high-load truss connections.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load capacities and satisfy UK building control regulations, the ABR10525 should be installed using 3.75x30mm, 4.0x35mm, or 4.0x50mm CNA annular ring-shank connector nails or CSA connector screws for timber-to-timber framing. For concrete or masonry anchoring, utilize M10 or M12 mechanical expansion anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION

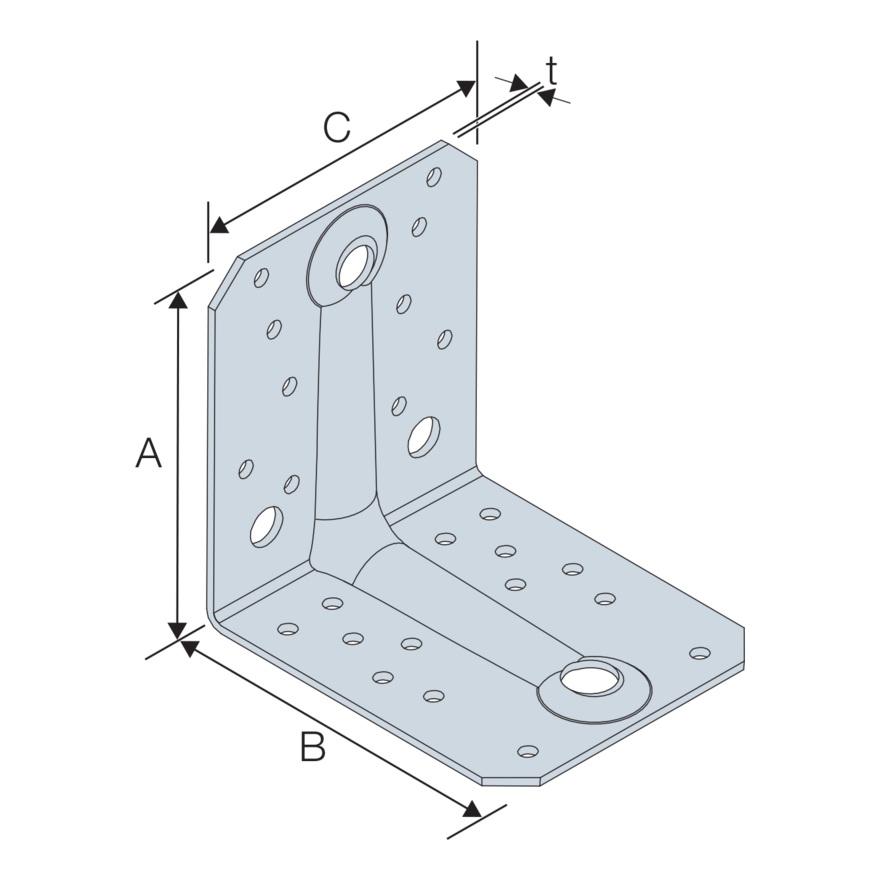

TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

Simpson Strong-Tie ABR10525 heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR10525 Value
A Vertical Leg Height 105 mm
B Base Leg Length 105 mm
C Bracket Width 90 mm
t Steel Plate Gauge Thickness 2.5 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.5mm S350GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 14 No. on Flange B (24 total)
Bolt Hole Pattern 2 No. Ø11mm & 1 No. Ø14mm on Flange A; 1 No. Ø14mm on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Heavy-Duty 2.5mm Steel Construction: Extra-thick structural steel gauge combined with a stamped central stiffening rib delivers maximum flexural rigidity and high load capacities.
  • Wide 90mm Bearing Surface: Generous 105mm x 105mm x 90mm footprint provides extended support for wide timber framing, purlin joints, and cross-laminated timber (CLT) panels.
  • Versatile Multi-Hole Pattern: Pre-drilled hole configuration accommodates 5mm connector nails or screws as well as heavy 11mm, 12mm, and 14mm structural anchor bolts.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to maintain strict structural compliance across residential, commercial, and industrial timber engineering.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
