Simpson Strong-Tie ABR105 3mm 105mm x 105mm

x 90mm Reinforced Angle Bracket Pre-Galv.

Simpson Strong-Tie

Product Code: 78ABR105

Model Code: ABR105

Brand: Simpson Strong-Tie


From £2.40 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

171 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 49 2.6400 £2.64
50+ 2.4000 £2.40
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

Simpson Strong-Tie ABR105 Heavy Duty Reinforced Bracket (105mm x 105mm x 90mm)

The Simpson Strong-Tie ABR105 (ABR105/2.0) is an industrial-grade, heavy-duty reinforced angle bracket engineered for demanding structural timber-to-timber, timber-to-concrete, and timber-to-steel connections. Manufactured from 2.0mm thick pre-galvanised mild steel with a central stamped stiffening rib, the ABR105 provides high flexural rigidity and shear load performance across all principal loading directions. Its expansive 105mm x 105mm x 90mm profile provides a wide bearing surface, making it an excellent specification for timber frame headers, wall plates, column joints, purlins, and truss connections.

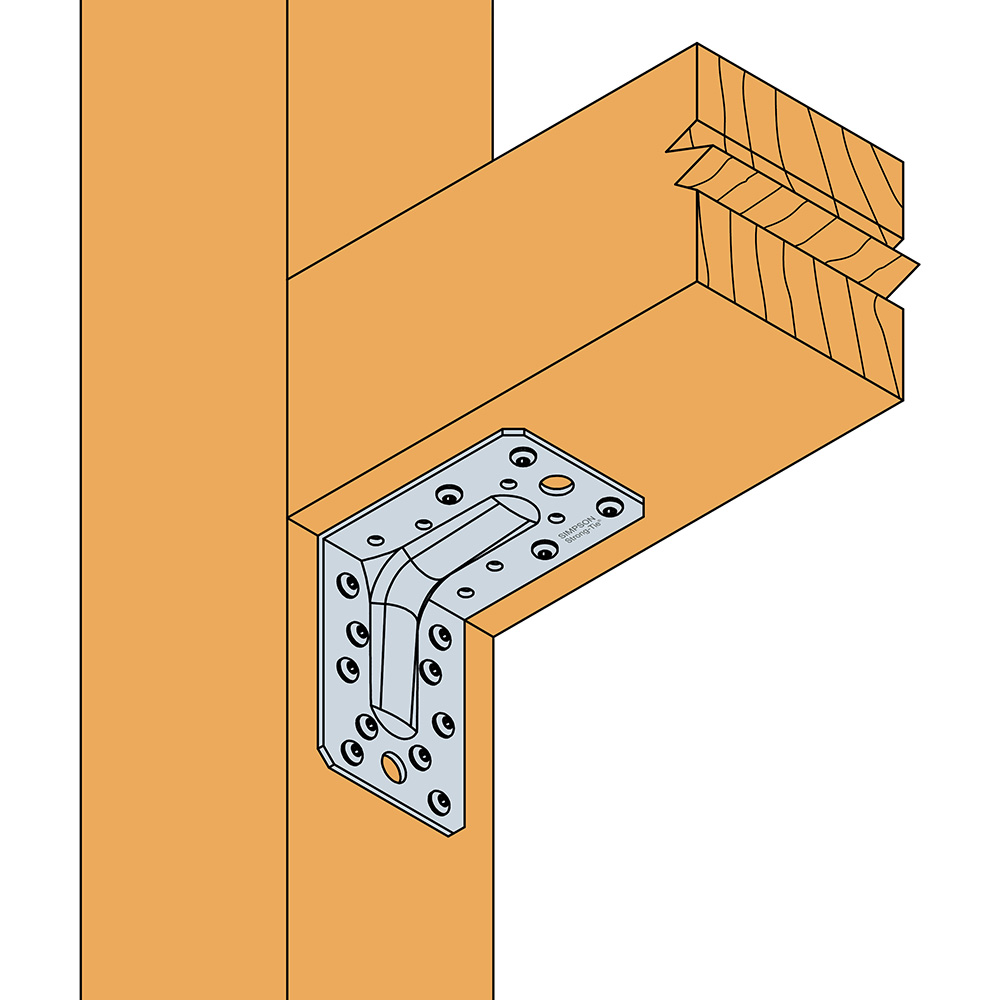

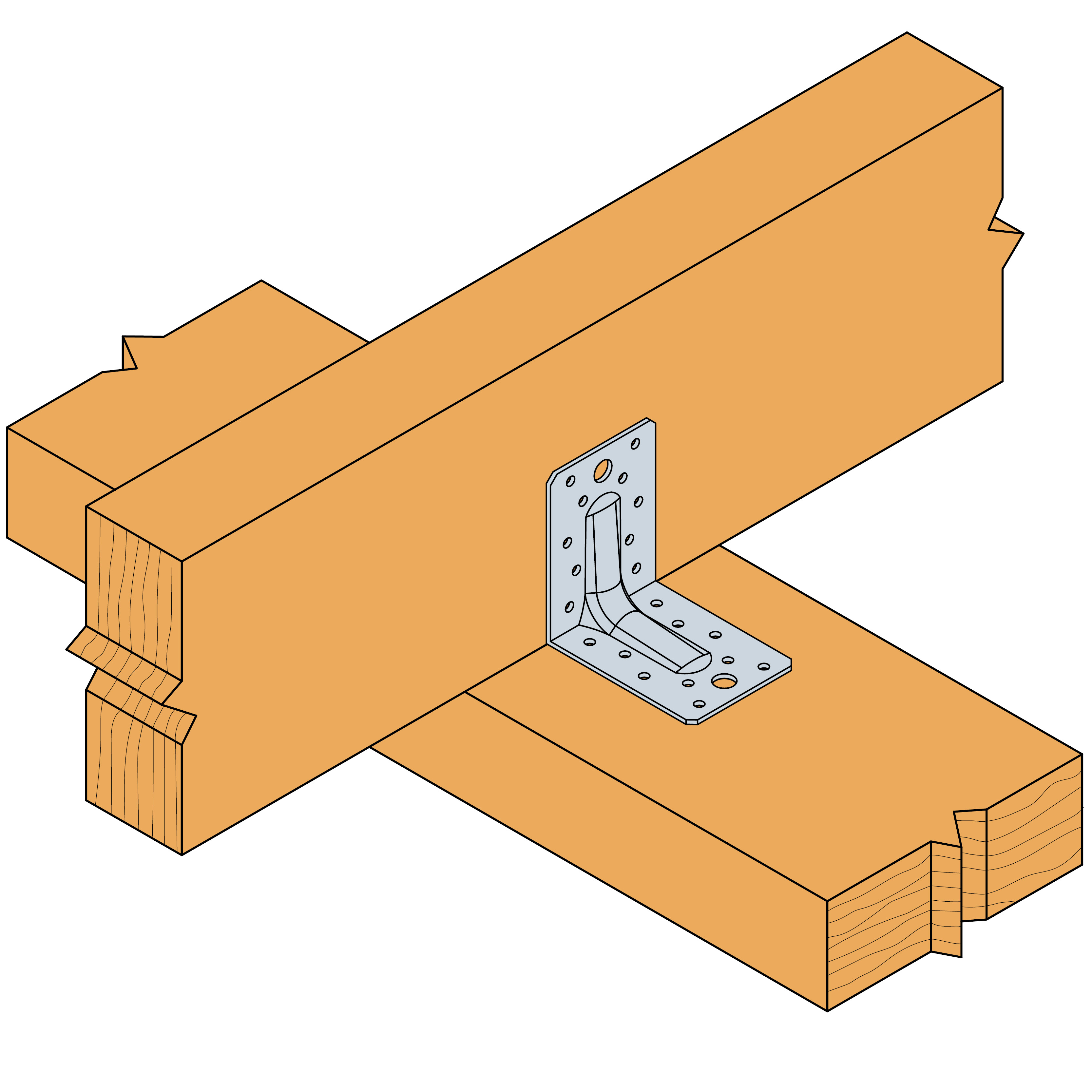

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load capacities and satisfy UK building control regulations, the ABR105 should be installed using 3.75x30mm, 4.0x35mm, or 4.0x50mm CNA annular ring-shank connector nails or CSA connector screws for timber-to-timber framing. For concrete or masonry anchoring, utilize M10 or M12 mechanical expansion anchors or chemical studs through the pre-drilled bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION


TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

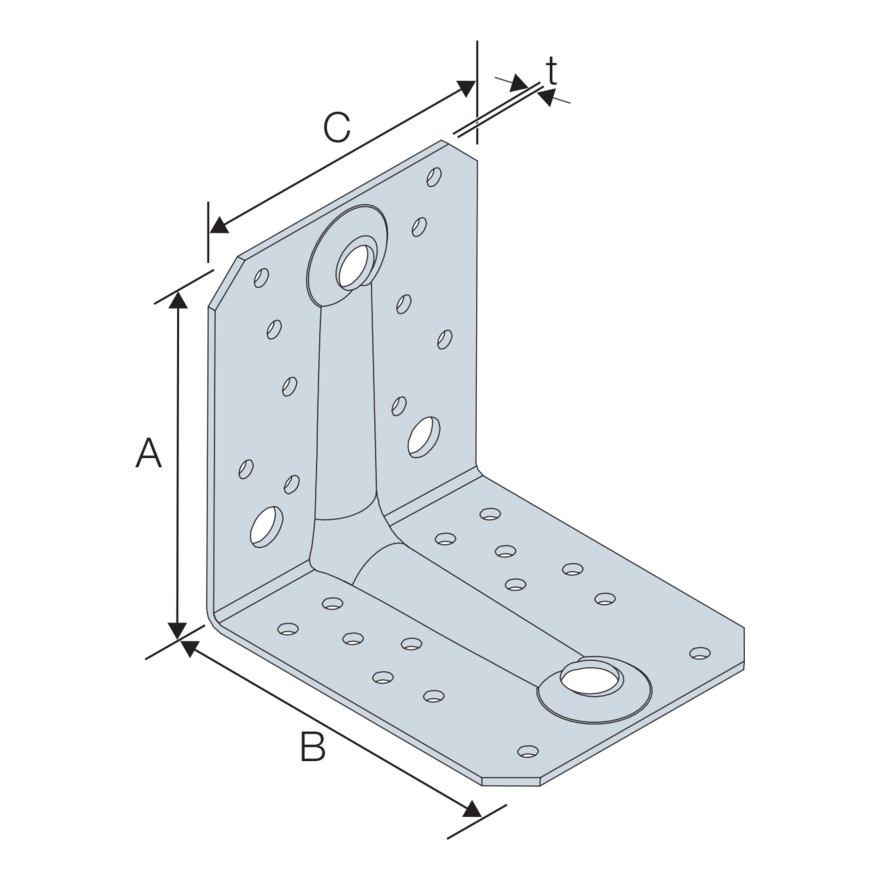

Simpson Strong-Tie ABR105 heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR105 Value
A Vertical Leg Height 105 mm
B Base Leg Length 105 mm
C Bracket Width 90 mm
t Steel Plate Gauge Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.0mm S250GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 14 No. on Flange B (24 total)
Bolt Hole Pattern 2 No. Ø11mm & 1 No. Ø14mm on Flange A; 1 No. Ø14mm on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Stiffened Central Rib: Stamped reinforcement rib delivers superior flexural rigidity and high load capacities under shear and bending forces.
  • Wide 90mm Bearing Surface: Generous 105mm x 105mm x 90mm footprint provides extended support for wide timber framing, purlin joints, and wall plates.
  • Versatile Multi-Hole Pattern: Pre-drilled hole layout accommodates 5mm connector nails or screws as well as heavy 11mm and 14mm structural anchor bolts.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to maintain strict structural compliance across residential and commercial timber engineering.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
