Simpson Strong-Tie ABR100 103mm x 103mm x 90

mm x 2mm, Reinforced Angle Bracket, Pre-Galv

Simpson Strong-Tie

Product Code: 78ABR100

Model Code: ABR100

Brand: Simpson Strong-Tie


From £3.10 inc VAT ( Priced Each )

(Include VAT?)

Quantity:

80 IN STOCK
Sorry! This product is only sold in multiples of 0.
BULK QUANTITY DISCOUNTS:
Qty Price Per Unit Price Per 1 Units
1 - 49 3.2880 £3.29
50+ 3.0960 £3.10
Prices inc VAT based on Each
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STRUCTURAL TIMBER CONNECTORS / REINFORCED ANGLE BRACKETS

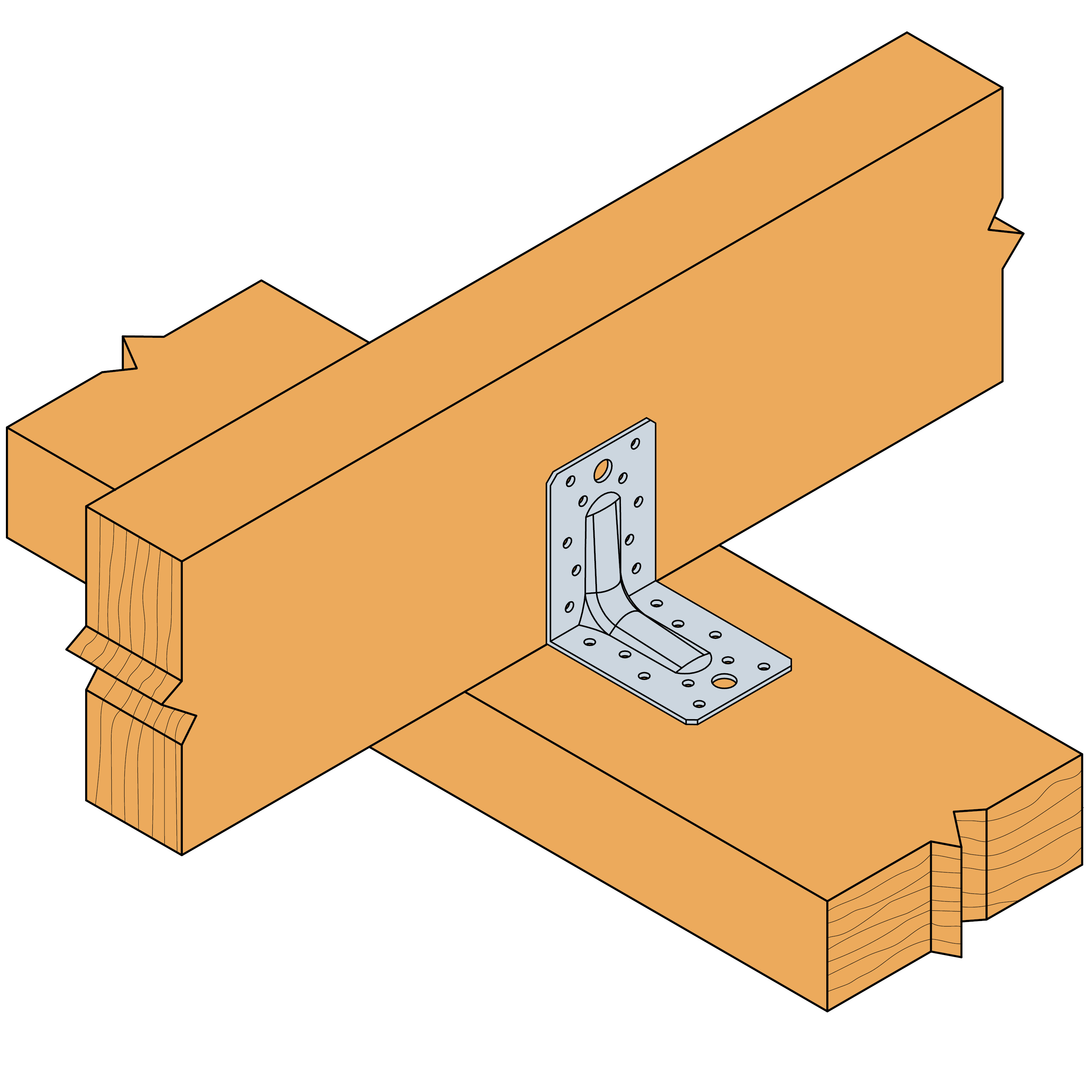

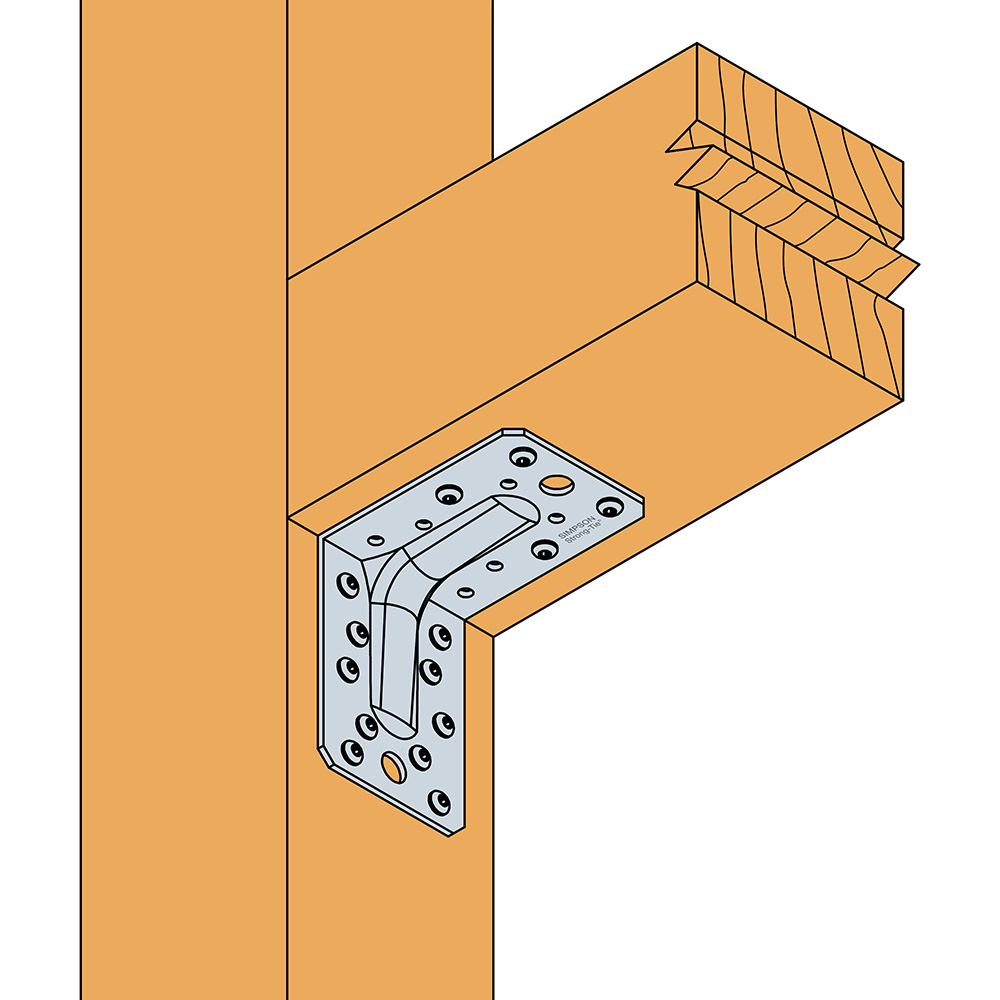

Simpson Strong-Tie ABR100 Heavy Duty Reinforced Bracket (103mm x 103mm x 90mm)

The Simpson Strong-Tie ABR100 is a heavy-duty, industrial-grade reinforced angle bracket engineered for demanding structural timber-to-timber, timber-to-concrete, and timber-to-steel connections. Featuring a stamped central stiffening rib and an expansive 90mm wide face, the ABR100 delivers exceptional resistance against bending moments, shear loads, and uplift forces in framing and wood-frame housing construction. Manufactured from 2.0mm thick pre-galvanised mild steel, this versatile structural connector is ideal for securing heavy purlins, timber frame wall plates, truss tie-downs, headers, and cantilevers.

RECOMMENDED INSTALLATION FASTENERS

To achieve published structural load values and satisfy UK building control standards, the ABR100 should be installed using 3.75x30mm square twist nails or CNA connector nails for timber connections. For anchoring to concrete or masonry substrates, install M10 or M12 mechanical expansion anchors or chemical studs through the pre-punched bolt holes.

CLICK HERE TO PURCHASE 30MM SQUARE TWIST NAILS FOR YOUR INSTALLATION


TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

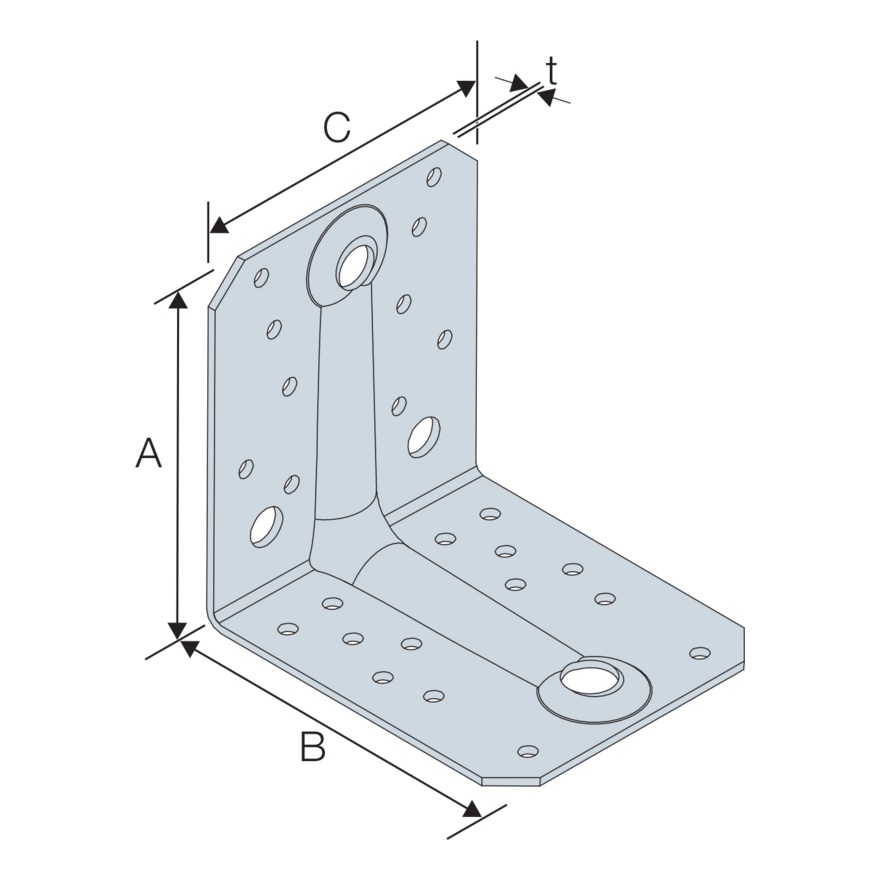

Simpson Strong-Tie ABR100 heavy duty reinforced angle bracket technical drawing dimension diagram
Key Dimension Description ABR100 Value
A Vertical Leg Height 103 mm
B Base Leg Length 103 mm
C Bracket Width 90 mm
t Steel Plate Gauge Thickness 2.0 mm

TECHNICAL DATA & FASTENER SPECIFICATIONS

Specification Parameter Engineered Values & Materials
Material Steel Grade 2.0mm S250GD structural pre-galvanised mild steel
Corrosion Protection Grade Z275 Pre-Galvanised (Optimised for Service Class 1 and 2 internal structures)
Nail Hole Pattern (Ø5mm) 10 No. pre-drilled nail holes on Flange A, 14 No. on Flange B (24 total)
Bolt Hole Pattern (Ø12mm) 1 No. Ø12mm bolt hole on Flange A & 1 No. Ø12mm bolt hole on Flange B
Structural Certification UKCA & CE marked, ETA approved (ETA-06/0106)

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Stiffened Central Rib: Stamped reinforcement rib delivers superior flexural rigidity and high load capacities across all loading planes.
  • Wide 90mm Bearing Surface: 103mm x 103mm x 90mm footprint provides extended contact area for wide timber members and heavy joist joints.
  • Versatile Multi-Hole Pattern: Pre-punched layout accommodates standard 5mm connector nails/screws alongside 12mm structural anchor bolts.
  • Fully Building Code Certified: ETA approved and UKCA/CE marked to ensure complete structural compliance across commercial and residential timber engineering.
CLICK HERE TO SEE THE FULL ABR REINFORCED BRACKET RANGE
