Lindapter TR6010 M10 Type TR60 Wedge

for SMD Deck, for M10 Threaded Road

Lindapter

Product Code: 18TR6010

Model Code: TR6010

Brand: Lindapter

Finish: Pre Galvanised


(Include VAT?)

Boxes of 50
Individual Items

£1.55 inc VAT
( Priced Each )

230 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




COMPOSITE DECKING CONNECTIONS / SUSPENSION SYSTEM COMPONENTS

Lindapter Type TR60 M10 Composite Decking Fixing Wedge (TR6010)

The Lindapter Type TR6010 Wedge is an engineered structural secondary fixing manufactured to provide a safe, rapid method for suspending mechanical services, cable containment, and pipework installations directly from composite floor profiles. Explicitly designed to lock natively into the unique re-entrant channel profile of SMD TR60+ steel decking, this M10 anchor is manufactured from durable mild steel and protected by a robust bright zinc plated anti-corrosion finish. By utilising the integral re-entrant channel track, the Type TR60 bypasses the traditional requirement for overhead dynamic concrete drilling or dangerous powder-actuated tools, ensuring a completely non-destructive installation process that preserves the design strength and fire-containment performance of the concrete floor slab.

CRITICAL STRUCTURAL APPLICATION & COMPATIBILITY MANDATE

The Type TR6010 anchor wedge must strictly be installed following the complete structural curing of the overhead poured concrete floor deck slab. This fixing is custom-contoured for precise structural alignment within the dove-tailed profiles of SMD TR60+ building decks. For installation, thread the locking wedge piece onto an M10 studding line and insert the full assembly upward into the narrow entry slot of the re-entrant channel. Execute a firm 90-degree mechanical rotation to span the internal locking wings across the internal decking flanges, establishing complete positive engagement. Adjust the drop rod linearly along the channel vector to achieve correct positioning before tightening to a strict maximum torque value of 10 Nm.


DECKING PROFILE IDENTIFICATION

For decking type SMD TR60+

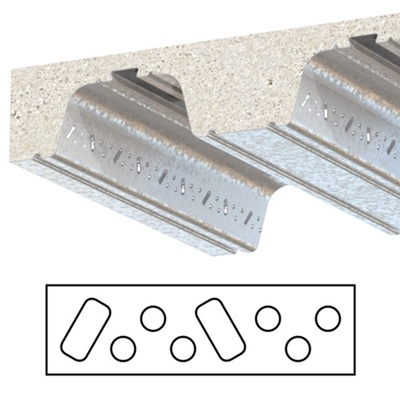

Lindapter Type TR60 composite steel profile drawing for SMD TR60+

TECHNICAL SPECIFICATION DRAWING

Key Dimensions & Values

Key Dimension Parameter TR6010 Value
Thread (Z) Internal Rod Size Diameter M10
Wedge Depth Internal Wedge Base Profile 11 mm
Wedge Width Anchor Profile Cross-Section 21 mm
Material Structural Anchor Composition Mild Steel (BZP)

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Performance Standards
Safe Working Tensile Load 1.0 kN maximum safe working load rating per rod assembly (FOS 4:1 factor of safety)
Installation Tightening Torque 10 Nm structural tightening value to prevent composite thin-gauge track distortion
Decking Compatibility Fit Exclusively engineered for structural locking within SMD TR60+ floor decking profiles
Reaction to Fire Classification Class A1 Non-Combustible performance configuration in line with EC decision 96/603/EC

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • Zero-Impact Site Strategy: Bypasses overhead heavy concrete diamond core drilling and dynamic cartridge firing, completely protecting the concrete slab matrix from micro-cracking risks.
  • Tailored Re-Entrant Lock: Tapered wing configuration locks tightly inside SMD TR60+ composite tracks, eliminating the hazard of fastener dislocation under service vibration.
  • Rapid Parallel Adjustment: Slides loosely within the track before final locking parameters are met, allowing the M10 drop-rod paths to be adjusted fluidly across long building sectors.
  • Optimised Procurement Costs: Avoids the need for premium plant hire, heavy core tooling components, or structural fire-watch resources, drastically compressing contract delivery timelines.
Purchase Lindapter Type TR60 Decking Fixings
Data Sheet
Data Sheet
Installation Guide
Installation Guide
Fire Rated
Fire Rated
