Lindapter M24 Type B Medium Tail

Flat Top Fixing White Heart Zinc Plated

Lindapter

Product Code: 18B24M

Model Code: B24MW

Brand: Lindapter

Finish: Zinc Plated


(Include VAT?)

Boxes of 20
Individual Items

£19.12 inc VAT
( Priced Each )

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*

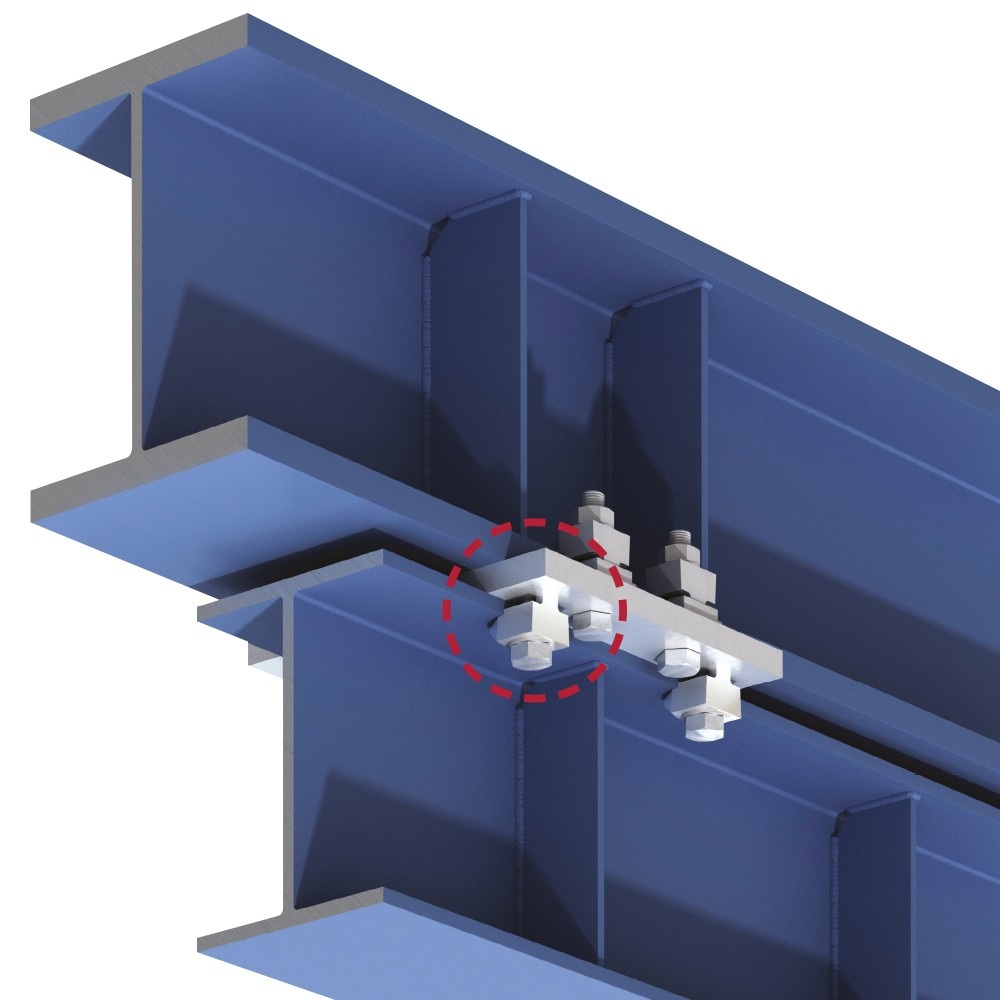

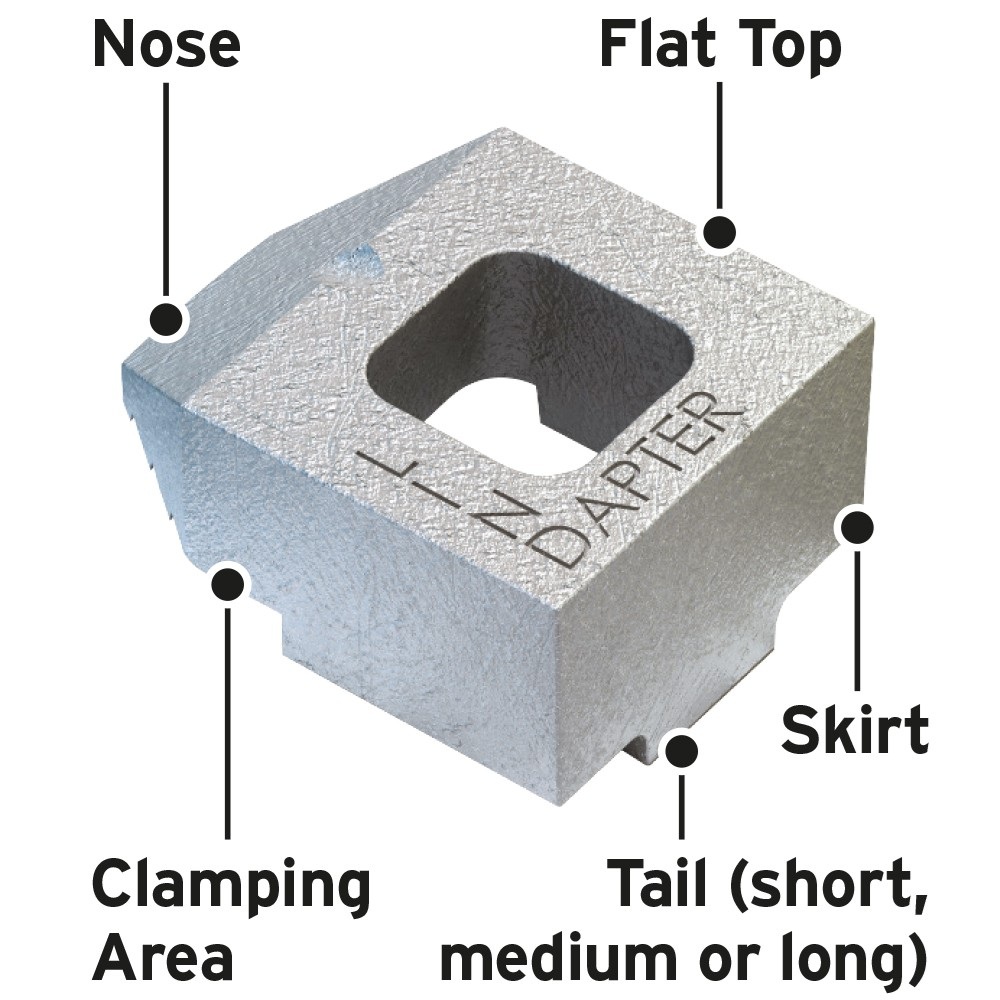

The Type B girder clamp is used to achieve a fast steelwork fixing connection between two steel beams and is often used in a pair with Type A clamps. It has a flat top to allow the bolt head or nut to rotate on a hardened washer and can also be used with studs, tie rods or J-bolts. The skirt on the underside of the clamp abuts the edge of the beam flange and prevents the clamp rotating during installation. Type B girder clamps can also be used on their own if one piece of the steelwork has been pre-drilled.

- Flat top allows the bolt head or nut to rotate on a hardened washer.
- Ideal for parallel flanges.
- Suitable up to 78.8kN tensile in a four-bolt configuration.
- Independently approved for dynamic load applications to EN 1993-1-9. Contact us for more details.

Data Sheet
Data Sheet
Installation Guide
Installation Guide
