Lindapter CF12 M12 Clamp, Flange Range

12 - 20mm - for High Slip Resistance - HDG

Lindapter

Product Code: 18CF12

Model Code: CF12

Brand: Lindapter

Finish: Hot Dip Galv


(Include VAT?)

Boxes of 25
Individual Items

£7.19 inc VAT
( Priced Each )

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*

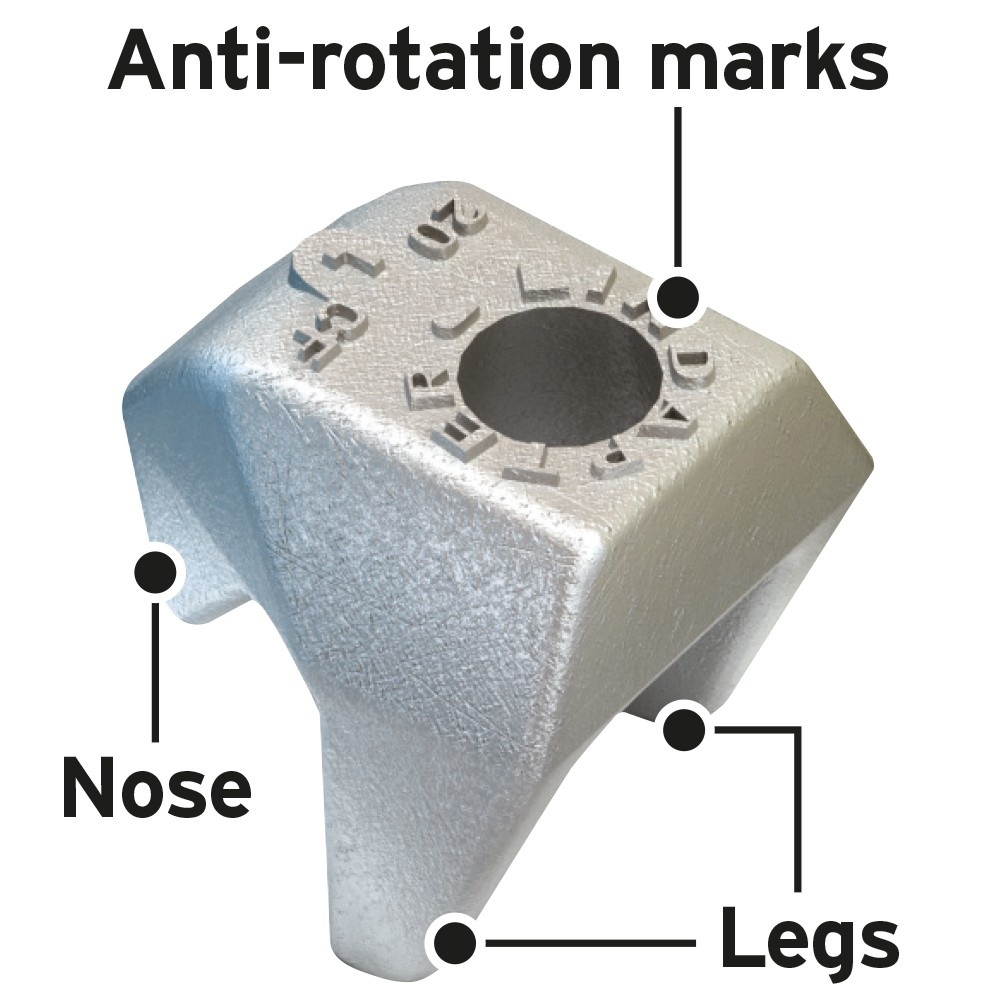

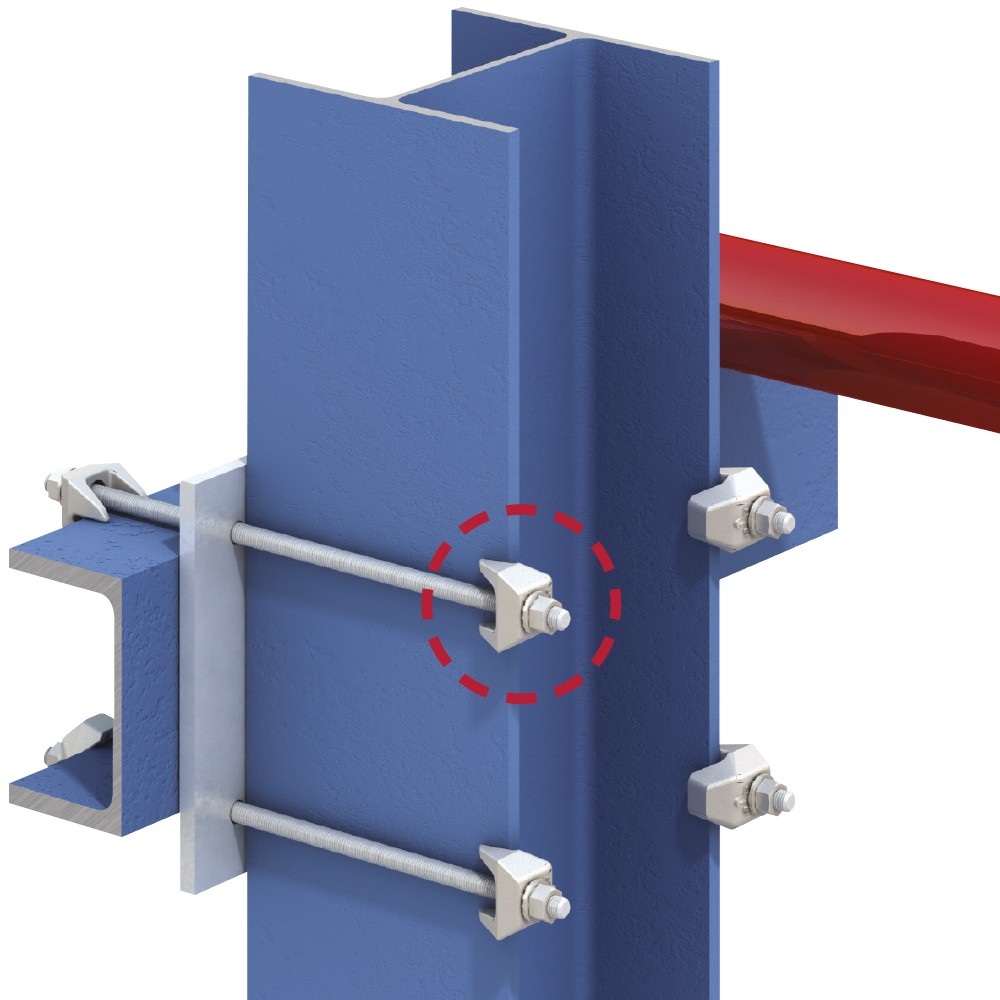

The Type CF girder clamp is used to achieve a fast steelwork fixing connection where the flanges of steel beams, angles or channels are opposing each other. The high slip resistance clamp is designed to be used in a two-clamp configuration and to hook over the edge of the flange. A bolt, threaded rod or other threaded item is used to connect the two clamps and complete the assembly. Type CF can also be combined with our other HSR girder clamp products to make connections from a flange edge to the flat face of a steel section. Manufactured from SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection.

Features & Benefits

  • Hooks over flange edge to allow connection of opposing sections.
  • High slip resistance for tensile, frictional and combined load applications.

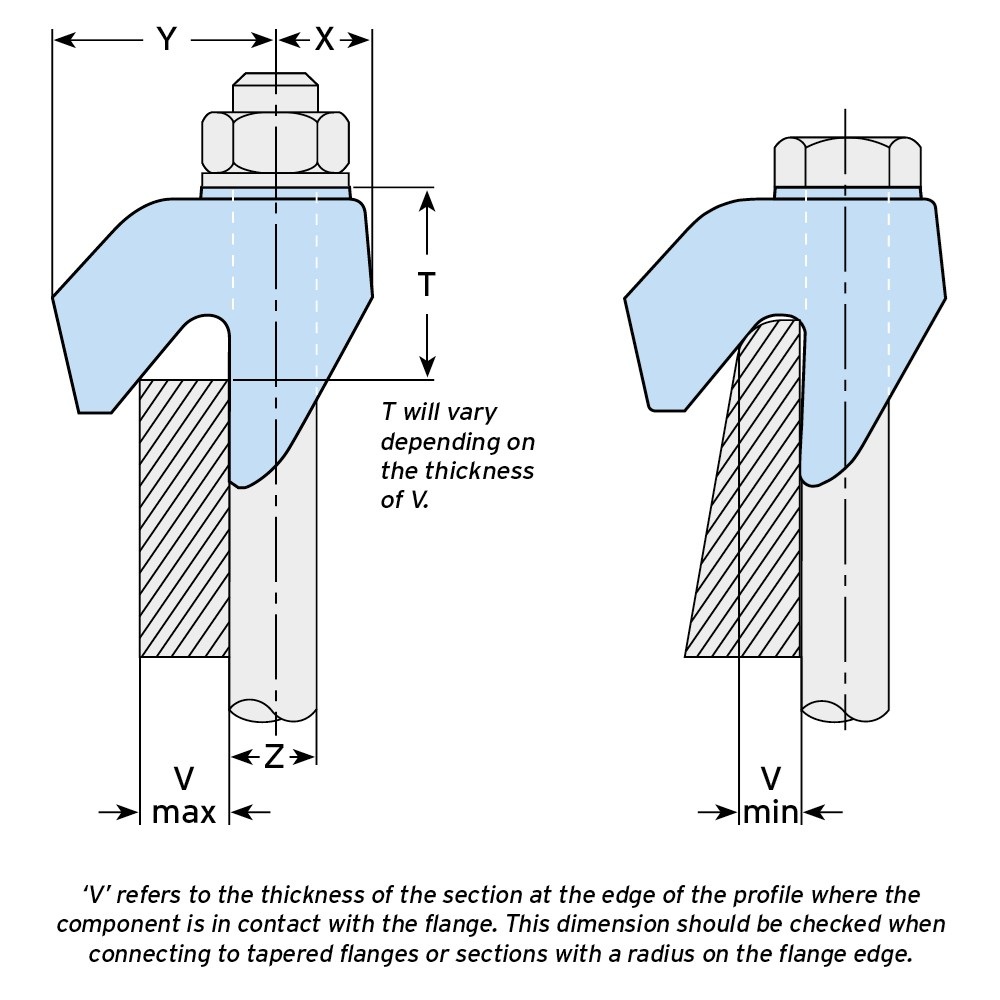

  • Suitable for parallel and tapered flanges up to and including 10°.
  • Lindapter recommends the use of DTI Washers conforming to EN14399-9 with the Type CF.


Location & End Plates

These plates ensure the clamps and bolts are in the correct position relative to the supporting steelwork. Location plates are simple fabricated items designed to sit between the two sections to be clamped together to ensure the bolts are fixed at the correct centres. End plates are simple fabricated items that are pre-welded to support frames, bracket or sections, allowing connection to the supporting structure with standard Lindapter clamps. Download datasheet for further information.

Properties

  • Manufactured from SG iron to BS EN 1563.
  • Available with hot dip galvanised finish.
  • Reaction to fire: A1 (Steel)
Data Sheet
Data Sheet
Installation Guide
Installation Guide
