8.0 x 120mm SPAX Countersunk T-STAR Plus T40

Full Thread Timber Construction Screws Wirox

Product Code: 24SCFTTW080120

Model Code: 1201010801205

Brand: SPAX

(Include VAT?)

Boxes of 50
Individual Items

From £64.38 inc VAT
( Priced Per 100 )

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.

BULK QUANTITY DISCOUNTS:

Qty	Price Per Unit	Price Per 100 Units
1 - 49	1.1106	£111.06
50+	0.7724	£77.24
100+	0.6438	£64.38

Prices inc VAT based on Per 100

Order by 2pm for Next Day Delivery (Mon-Fri)

FREE Standard Delivery on Orders over £100*

STRUCTURAL TIMBER FIXINGS / PREMIUM WOOD FASTENERS

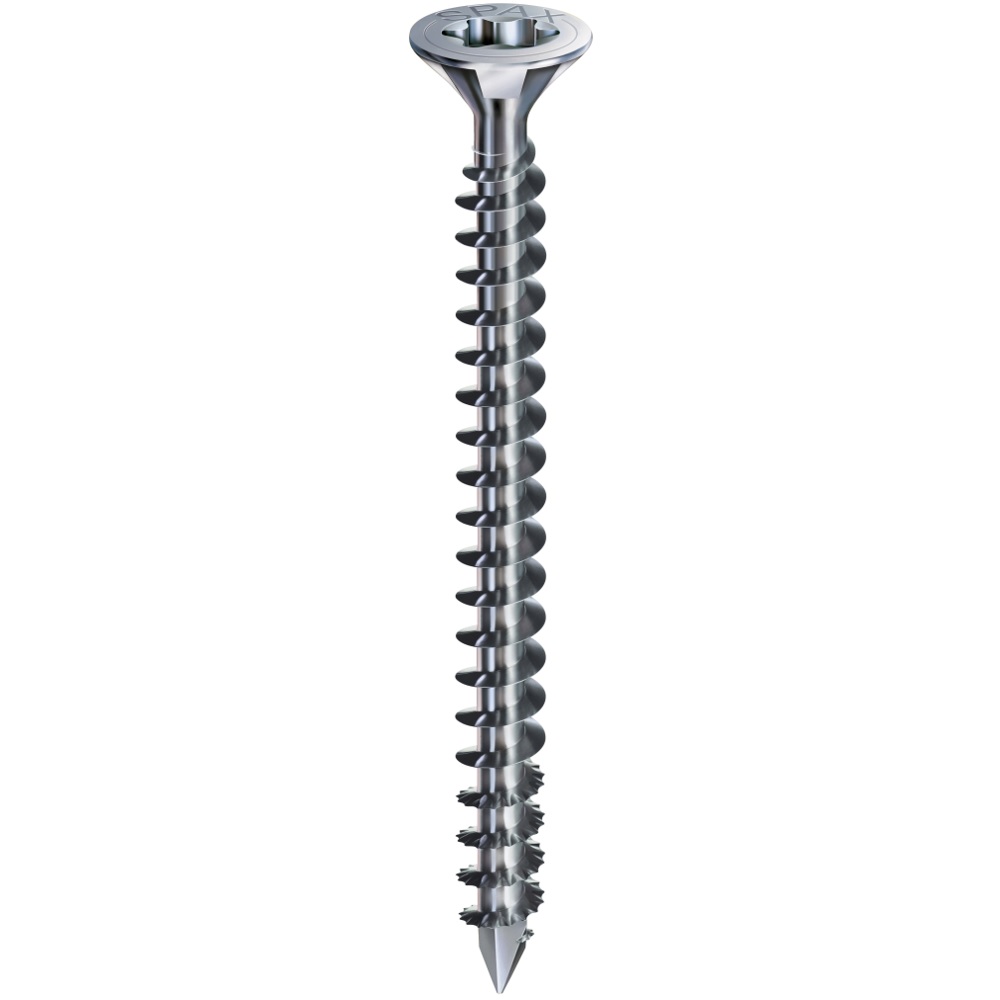

SPAX 8.0 x 120mm Countersunk T-STAR plus T40 Wood Screw

The SPAX 8.0 x 120mm Countersunk Screw is a premium structural wood fastener engineered for high-performance heavy timber construction, roof framing, and structural carpentry. Precision manufactured in Germany, this heavy-duty screw features a flush-fitting countersunk head configuration equipped with groundbreaking ground serrations and MULTIhead pocket technology that smoothly cuts through wood fibres to self-countersink without tearing. Coated in SPAX's proprietary WIROX finish, it delivers an exceptionally high level of corrosion protection compared to conventional bright zinc plating benchmarks. The advanced mechanical profile eliminates the need for time-consuming pre-drilling in most softwoods, drastically reducing installer tool wear and accelerating on-site framing workflows.

CRITICAL COMMERCIAL ORDERING PROTOCOL

Please note that this item is strictly PRICED PER HUNDRED but conveniently SOLD INDIVIDUALLY to accommodate precise site installation quantities without forcing excess box waste overheads.

CRITICAL STRUCTURAL APPLICATION & ADVANCED TECHNOLOGY MANDATE

This structural timber screw relies on three integrated proprietary engineering designs to achieve its maximum calculated holding capacities. First, the T-STAR plus drive layout utilises an additional recess parameter inside the T40 star centre to force an exact mechanical bit lock, successfully eliminating cam-out slipping vectors and wobble even at oblique driving angles. Second, the prominent 4CUT point configuration pushes wood grains aside fluidly to reduce timber splitting tension, behaving like a miniature drill path. Finally, the partial thread profile forces the upper non-threaded shank section to spin freely while the deeper thread section bites tightly into the rear timber member, creating a high-pressure clamp that pulls the joining wood sections firmly flush together.

FASTENER PROFILE IDENTIFICATION

Countersunk Head & Partial Thread

SPAX Countersunk T-STAR plus wood screw dimension engineering layout

DIMENSIONS & DRIVE CONFIGURATIONS

Key Dimensions & Geometric Values

Parameter	Specification Description	Screw Value
Diameter	Outer Thread Sizing Width	8.0 mm
Length	Total Longitudinal Measurement	120 mm
Drive Size	T-STAR plus Recess Sizing	T40 Drive
Thread Type	Timber Clamping Configuration	Partial Thread
Head Shape	Surface Countersinking Finish	90 Degree Countersunk

TECHNICAL DATA & PERFORMANCE STAGES

Specification Parameter	Engineered Performance Standards
Surface Shield Coating	WIROX finish delivering twenty times higher corrosion resistance than basic zinc plating benchmarks
Pre-Drilling Requirements	Not required in conventional structural softwoods. Recommendation applies strictly to exotic hardwoods
Regulatory Certification	European Technical Assessment compliant (ETA-12/0114) and CE marked for structural construction joints
Commercial Pricing Basis	Calculated per 100 units / Supply structure is completely fluid and sold individually per single screw unit

KEY STRUCTURAL PERFORMANCE ADVANTAGES

WIROX Anti-Corrosion Shield: Provides a high-grade surface defence barrier that maintains structural steel load pathways across changing moisture environments.
Wobble-Free T-STAR plus Lock: Custom drive configuration features a deeper indexing recess point to eliminate drill bit slip, protecting surrounding structural timber faces.
High-Force Partial Thread Clamping: Smooth upper shank area lets the screw head pull the top timber panel down firmly against the structural base frame.
Flexible Order Optimisation: Item protocol is configured natively to be sold individually based on a clear per hundred scale pricing format, avoiding excessive site inventory clutter.
