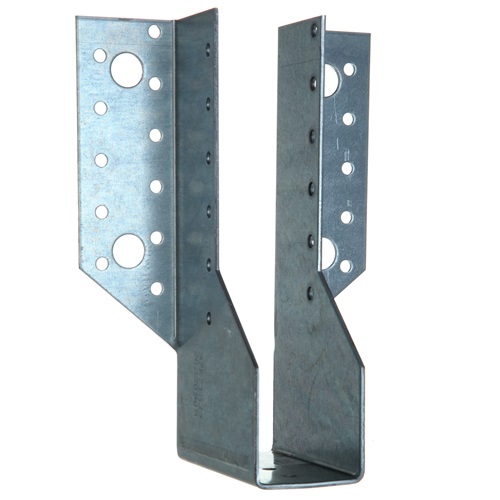

Simpson Strong-Tie SAE heavy duty face fix hanger, designed for applications requiring additional strength. Hangers have bolt holes for 12mm fasteners into the face and whilst primarily a timber to timber hanger can be fixed to masonry using MetFix Vinylester Resin and M12 Studs. Made from blanks 250/380/500 & 620mm and bent to common timber widths. This means that often the same hanger will suit multiple heights of timber. The hanger depth is required to be 60% or more of the height of the timber unless additional lateral restraint is added to the top of the carried member.
***CLICK HERE FOR TECHNICAL SPECIFICATIONS***
Simpson Strong-Tie SAE380/50/2 50mm Width
x 165mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380050
|
|
Simpson Strong-Tie SAE380/56/2 56mm Width
x 165mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380056
|
|
Simpson Strong-Tie SAE380/63/2 63mm Width
x 159mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380063
|
|
Simpson Strong-Tie SAE380/66/2 66mm Width
x 157mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380066
|
|
Simpson Strong-Tie SAE380/72/2 72mm Width
x 154mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380072
|
|
Simpson Strong-Tie SAE380/75/2 75mm Width
x 153mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380075
|
|
Simpson Strong-Tie SAE380/78/2 78mm Width
x 151mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380078
|
|
Simpson Strong-Tie SAE380/91/2/ 91mm Width
x 145mm Height Face Fix Hanger Pre-Galvanised
Product Code: 78SAE380091
|
|
Simpson Strong-Tie SAE380/96/2 96mm Width
x 142mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380096
|
|
Simpson Strong-Tie SAE380/99/2 99mm Width
x 141mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE380099
|
|
Simpson Strong-Tie SAE380/109/2 109mm
Width x 136mm Height Face Fix Hanger Pre-galv
Product Code: 78SAE380109
|
|
Simpson Strong-Tie SAE380X/142 142mm
Width x 142mm Height Face Fix Hanger Pre-galv
Product Code: 78SAE380142
|
|
