The Simpson Strong-Tie BTALU Concealed Beam Hanger range is an elite selection of heavy-duty structural connectors engineered to create completely hidden, high-capacity timber-to-timber and timber-to-concrete joints. Manufactured from premium-grade structural aluminium, these specialised hangers are designed to be slotted entirely within the incoming beam's core, offering maximum fire protection and a flawless architectural finish. Ideal for large-scale glulam beam tracking, complex main-to-secondary beam junctions, and modern timber frame construction, this professional system provides an unyielding mechanical connection interface for high-end projects.
|
Concealed Structural Aesthetics Features an innovative internal hanging profile that remains completely invisible after installation, successfully eliminating unsightly steel plates and brackets across exposed architectural timber framing fields. |
High-Load Aluminium Engineering Engineered to receive heavy-duty steel dowels or structural screws, distributing severe downward and uplift forces uniformly across the connection interface to significantly speed up complex on-site assembly tracking. |
Simpson Strong-Tie BTALU90 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU090B08060
| Dowel Length: |
|
|

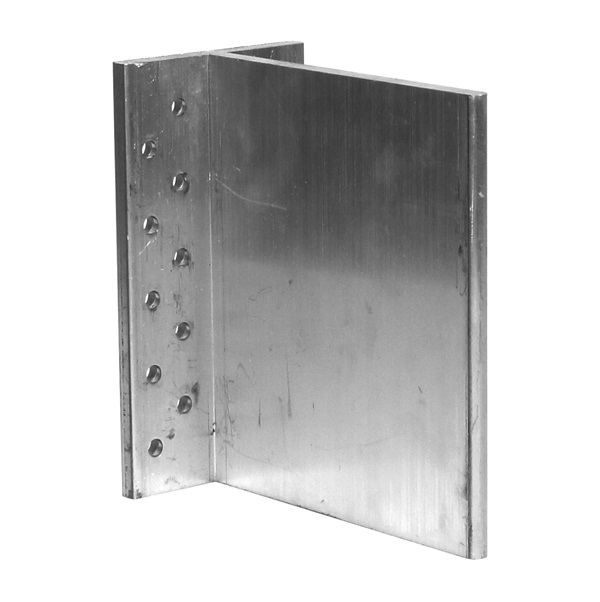

Simpson Strong-Tie BTALU120 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU120B12060
| Dowel Length: |
|
|
Simpson Strong-Tie BTALU160 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU160B12060
| Dowel Length: |
|
|
Simpson Strong-Tie BTALU200 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU200B12060
| Dowel Length: |
|
|
Simpson Strong-Tie BTALU240 Concealed Joist Hanger
Concealed Beam Hanger Pre-Galv 60mm Dowels
Product Code: 78BTALU240B12060
| Dowel Length: |
|
|
