Lindapter FL210D M10 Type FL Flange Beam

Clamp Plain Hole Bright Zinc Plated

Lindapter

Product Code: 18FL210D

Model Code: FL210D

Brand: Lindapter

Finish: Zinc Plated


(Include VAT?)

Boxes of 50
Individual Items

£1.07 inc VAT
( Priced Each )

12659 IN STOCK
Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*




STEEL CLAMPING SYSTEMS / FIRE RATED SUPPORT FIXINGS

Lindapter Type FL210D Beam Flange Clamp (11mm Clear Hole)

The Lindapter Type FL210D is a unique, high-reliability structural component celebrated as the industry's only independently fire-rated beam flange clamp solution. Expertly manufactured from robust malleable iron with a high-grade zinc-plated finish, this structural clamp is purpose-engineered to secure essential building services directly to parallel or tapered beam steelwork without requiring on-site drilling or welding. Featuring a clean 11mm diameter rear clear hole designed to accept M10 threaded rods, it serves as an invaluable, non-destructive anchoring point across heavy-duty commercial pipework suspended arrays, fire protection installations, HVAC assemblies, and acoustic framework designs.

CRITICAL STRUCTURAL MANDATE: CALIBRATED TORQUE & INSTALLATION

To maintain complete compliance with accredited engineering safety factors, the integrated M10 cup-point setscrew must be adjusted finger-tight and then applied exactly a further quarter-turn (90°) with a spanner (8 Nm). Following this, the security locknut must be fully balanced and secured using a calibrated torque wrench to exactly 22 Nm. On tapered structural steel profiles, ensure the cup-point setscrew grips securely onto the inner face of the flange. For installations supporting pipework with a bore exceeding 65mm, an additional Lindapter safety strip must be integrated to fully comply with specialized VdS compliance parameters.

UK Distribution & Availability Notice: Metro Fixings is an independent UK distributor supplying genuine Lindapter FL210D M10 Type FL Flange Clamps individually or in full trade boxes of 50. Our current web trade pricing is structured at £0.89 net per unit (£1.07 including VAT) with extensive stock held in our warehouse for next-day UK delivery. Immediate checkout available with no minimum order requirements or trade login required.


TECHNICAL SPECIFICATION DRAWING & KEY DIMENSIONS

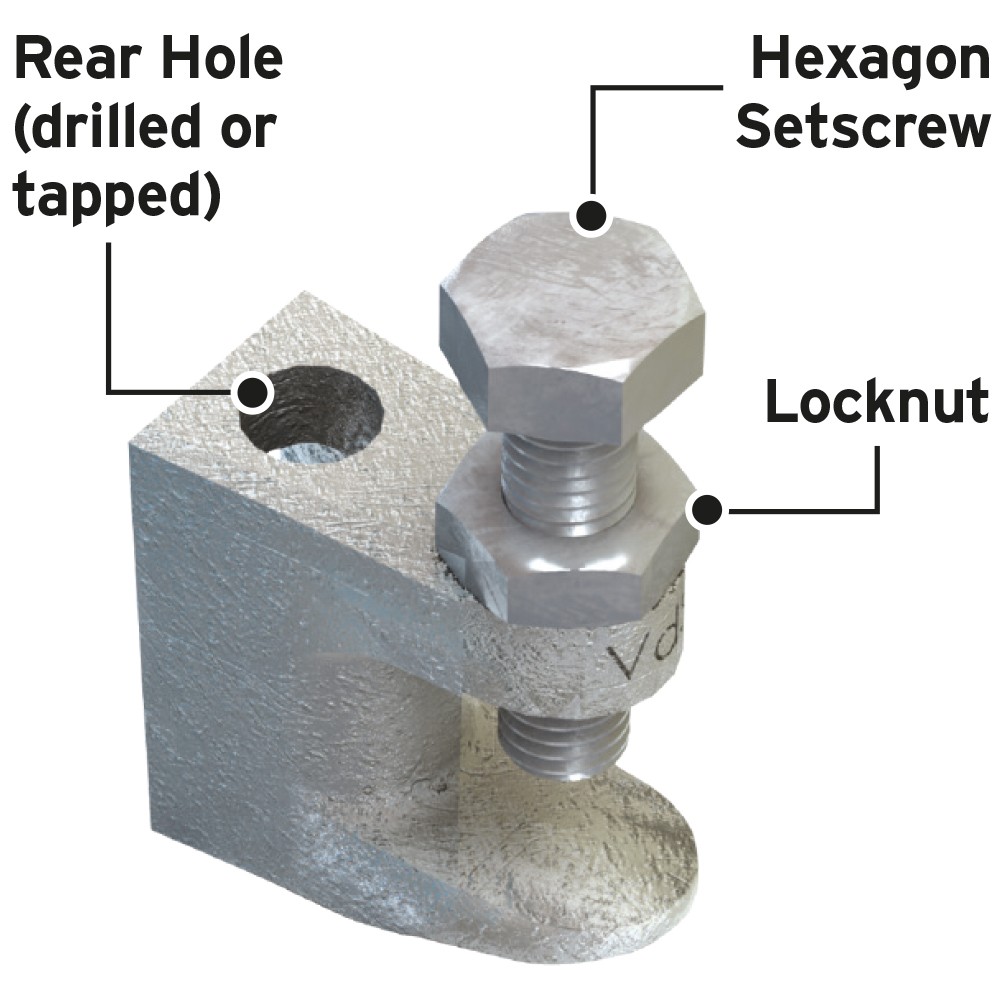

Lindapter Type FL210D fire rated beam flange clamp dimensions technical drawing
Key Dimension Description FL210D Value
Y Rear Drilled Clear Hole Diameter 11 mm
W Flange Clamping Range Grip Capacity 3 - 20 mm
Z Hexagon Setscrew Thread Diameter M10
T Overall Body Profile Length 45 mm
U Clamp Body Total Rear Height 40 mm
X Jaw Pocket Penetration Depth 22 mm
V External Main Clamp Body Width 22 mm

TECHNICAL DATA & DESIGN CAPACITIES

Specification Parameter Engineered Values & Materials
Primary Thread Interface 11mm clean clear-through cylindrical path optimized for M10 drop rods
Independent Fire Test Profile Accredited by BRE Global Ltd (UKAS 0578) under Report P123815-1002 Issue: 1
F(120) Fire Rated Load Capacity 0.50 kN absolute ultimate tensile load limit held at 1,049°C for 120 minutes (using 8.8 rod)
Ambient Safe Working Load 2.4 kN safe tensile load limits calculated at ambient temperature (4:1 factor of safety)
Industrial Quality Approvals Fully certified with active Factory Mutual (FM) & VdS (G 4820028) regulatory marks
Calibrated Torque Limits M10 Hexagon Setscrew = 8 Nm | Primary Security Locknut N = 22 Nm

KEY STRUCTURAL PERFORMANCE ADVANTAGES

  • ISO 834 Fire Rated Verification: Independently tested and verified under severe thermal conditions to withstand building service loads during fire emergencies.
  • Zero Welding & Drilling: Preserves the fundamental integrity and protective engineered surface treatments of the structural beams on-site.
  • Parallel or Tapered Universal Fit: Robust malleable iron jaw layout accommodates seamless clamping adaptation across diverse structural profiles.
  • Pre-Galvanised Surface Defense: High-durability zinc protection layer serves as an effective barrier against standard architectural moisture tracking.
