Lindapter M20 Type AAF Self Adjusting Clamp

Hot Dipped Galvanised

Lindapter

Product Code: 18AAF20

Model Code: AAF20

Brand: Lindapter

Finish: Hot Dip Galv


(Include VAT?)

Boxes of 4
Individual Items

£32.41 inc VAT
( Priced Each )

OUT OF STOCK

Delivery expected in 2/3 days

Sorry! This product is only sold in multiples of 0.
Order by 2pm for Next Day Delivery (Mon-Fri)
Delivery Icon FREE Standard Delivery on Orders over £100*

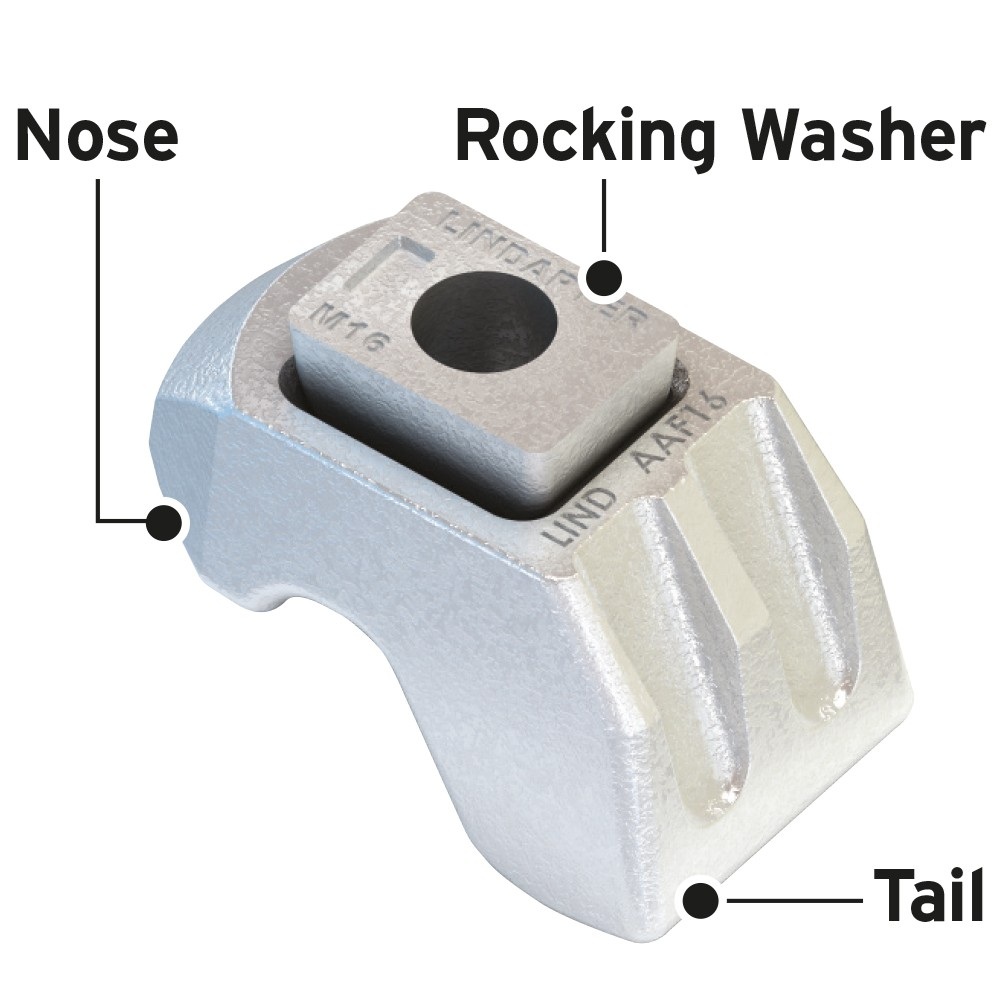

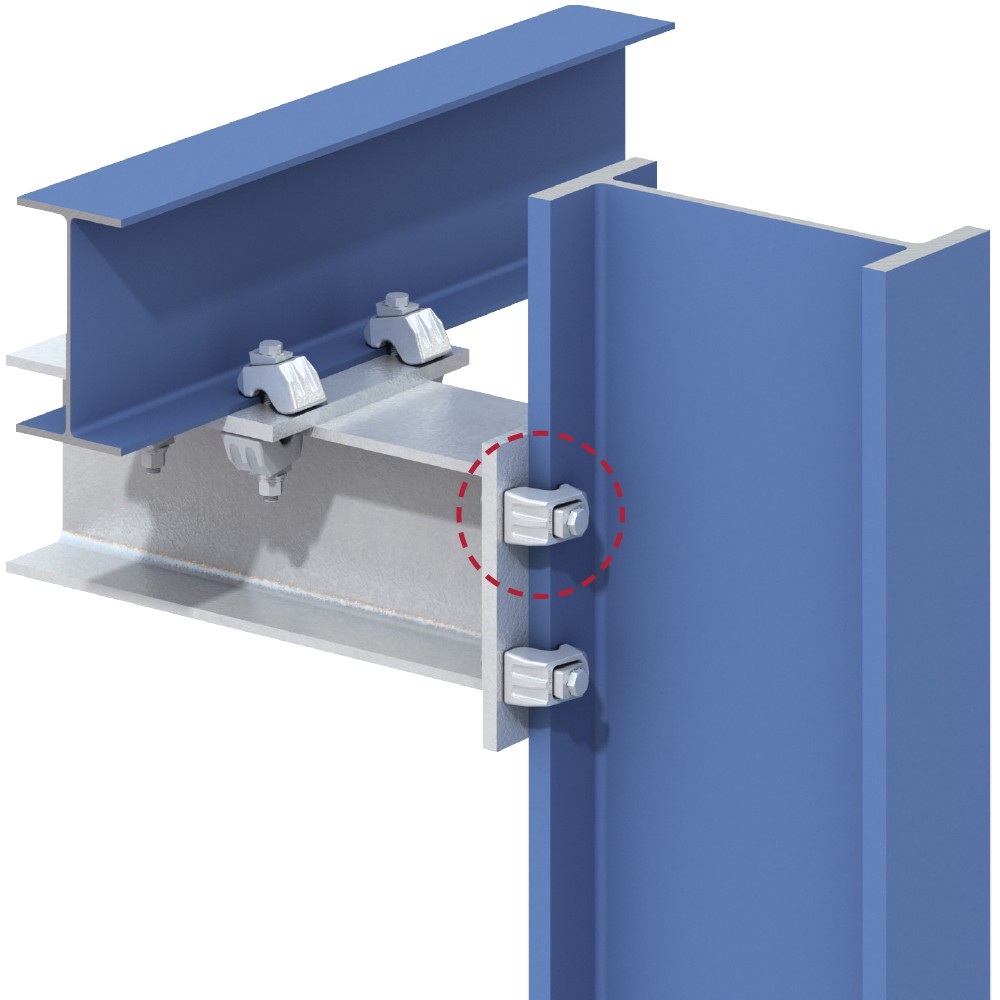

The Type AAF girder clamp is used to achieve a fast steelwork fixing connection where high load capacities are present in either tensile, frictional or combined load directions. It features an innovative two-part design that incorporates a rocking washer to allow the clamp to self-adjust to suit a range of flange thicknesses. Manufactured from low temperature SG iron with a hot dip galvanised finish to provide high performance and anti-corrosion protection in cold environments down to -60°C

NEW: Independently fire tested in accordance with ISO 834 for a duration of 120 minutes. For further details and load data please contact Lindapter.

- NEW: Independently fire tested in accordance with ISO 834
- High slip resistance clamp evaluated for tensile, frictional and combined load applications.

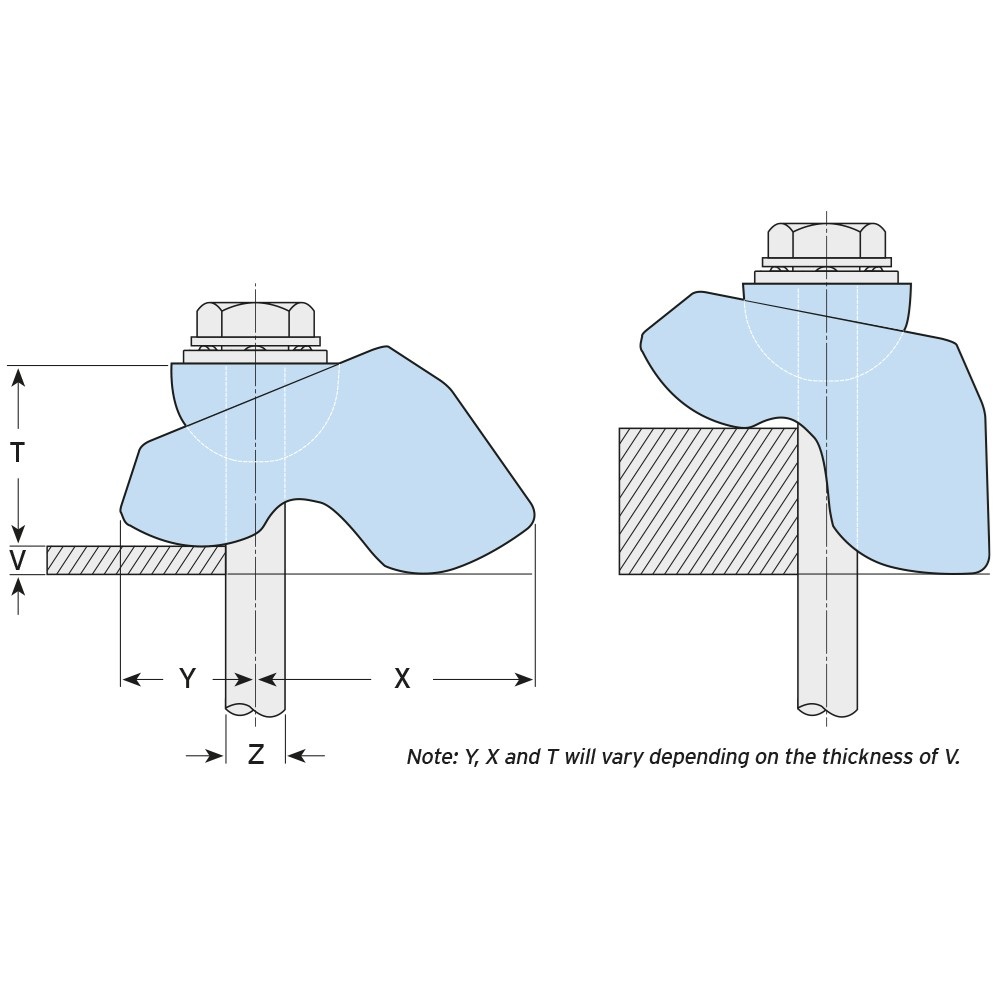

- Self-adjusts to suit flange thicknesses 6mm to 40mm (size M20).
- Safe working loads apply in temperatures as low as -60°C.
- Suitable for parallel and tapered flanges up to and including 10°.
- The tail spans slotted clearance holes.
- Lindapter recommends the use of DTI Washers conforming to EN14399-9 with the Type AAF.
- Independently approved for dynamic load applications to EN 1993-1-9. Contact us for more details.

Data Sheet
Data Sheet
Installation Guide
Installation Guide
