JHM's are one piece non-welded joist hangers for supporting timber joists, beams and trussed rafters from masonry walls.
- Built-in inspection slot at the base of the hanger, to aid inspection from the ground.
- Top flange provides area in contact with masonry support, allowing superior performance.
- Embossments on JHM stiffen top flange and holes allow improved mortar keying.
- JHM side flange on deeper hangers is much higher than the traditional style, providing enhanced resistance to joist rotation.
***CLICK HERE FOR TECHNICAL SPECIFICATIONS***
Simpson Strong-Tie JHM125/91 125mm x 91mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM125091
|
|
Simpson Strong-Tie JHM125/100 125mm x 100mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM125100
|
|

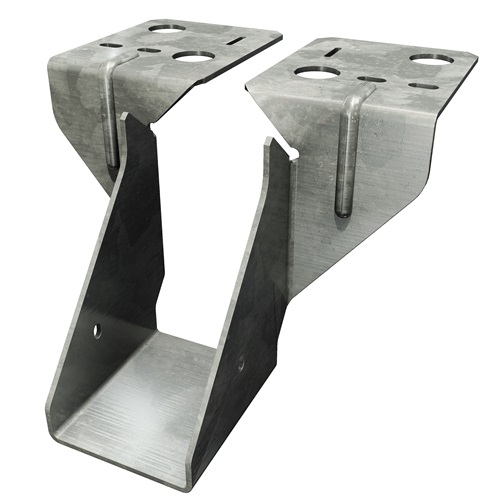

Simpson Strong-Tie JHM125/125 125mm x 125mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM125125
|
|
Simpson Strong-Tie JHM150/38 150mm x 38mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150038
|
|
Simpson Strong-Tie JHM150/44 150mm x 44mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150044
|
|
Simpson Strong-Tie JHM150/47 150mm x 47mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150047
|
|
Simpson Strong-Tie JHM150/50 150mm x 50mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150050
|
|
Simpson Strong-Tie JHM150/63 150mm x 63mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150063
|
|
Simpson Strong-Tie JHM150/75 150mm x 75mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150075
|
|
Simpson Strong-Tie JHM150/91 150mm x 91mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150091
|
|
Simpson Strong-Tie JHM150/100 150mm x 100mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM150100
|
|
Simpson Strong-Tie JHM175/38 175mm x 38mm
Masonry Joist Hanger Pre-galvanised
Product Code: 78JHM175038
|
|
