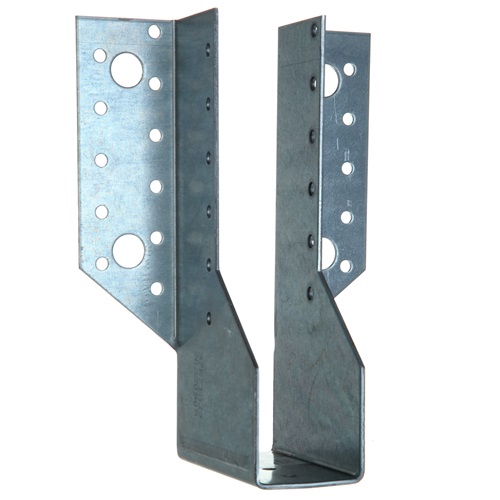

The Simpson Strong-Tie SAE Heavy U Face Fix Joist Hanger is a high-performance, heavy-duty connector designed for structural applications requiring maximum load-bearing capacity. Unlike standard hangers, the SAE range is manufactured from 2.0mm thick pre-galvanised mild steel, providing enhanced rigidity and strength for timber-to-timber, timber-to-masonry, and timber-to-steel connections. A key advantage of the SAE series is its versatility; it features both 5mm holes for Square Twist Nails and 11mm/13mm holes to accommodate M10/M12 bolts or chemical anchors when fixing into masonry or steel members. This makes them the professional choice for supporting solid sawn timber, glulam, or engineered wood products in high-stress environments.
At Metro Fixings, we supply the complete SAE range, including the SAE200, SAE250, SAE380, and SAE500 series. To ensure structural compliance and prevent joist rotation, it is recommended that the hanger depth covers at least 60% of the carried member's height.
Benefits
Simpson Strong-Tie SAE600/99/2 99mm Width
x 251mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600099
|
|
Simpson Strong-Tie SAE600/109/2 109mm Width
x 246mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600109
|
|
Simpson Strong-Tie SAE600/118/2 118mm Width
x 241mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600118
|
|
Simpson Strong-Tie SAE600/122/2 122mm Width
x 239mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600122
|
|
Simpson Strong-Tie SAE600/125/2 125mm Width
x 238mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600125
|
|
Simpson Strong-Tie SAE600/128/2 128mm Width
x 236mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600128
|
|
Simpson Strong-Tie SAE600/135/2 135mm Width
x 233mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600135
|
|
Simpson Strong-Tie SAE600/142/2 142mm Width
x 229mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600142
|
|
Simpson Strong-Tie SAE600/146/2 146mm Width
x 227mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600146
|
|
Simpson Strong-Tie SAE600/150/2 150mm Width
x 225mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600150
|
|
Simpson Strong-Tie SAE600/182/2 182mm Width
x 209mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600182
|
|
Simpson Strong-Tie SAE600/196/2 196mm Width
x 202mm Height Face Fix Hanger Pre-galvanised
Product Code: 78SAE600196
|
|
